Silicon Graphics Octane III Component Replacement Guide

Disk Drive Replacement
007-5650-001 33
5. Remove the tray bracket (with disk drives installed) from the tray cover and place it on an
ESD safe surface; refer to Figure 1-11.
6. Remove the six screws that secure the disk drive to the drive bracket; refer to Figure 1-12.

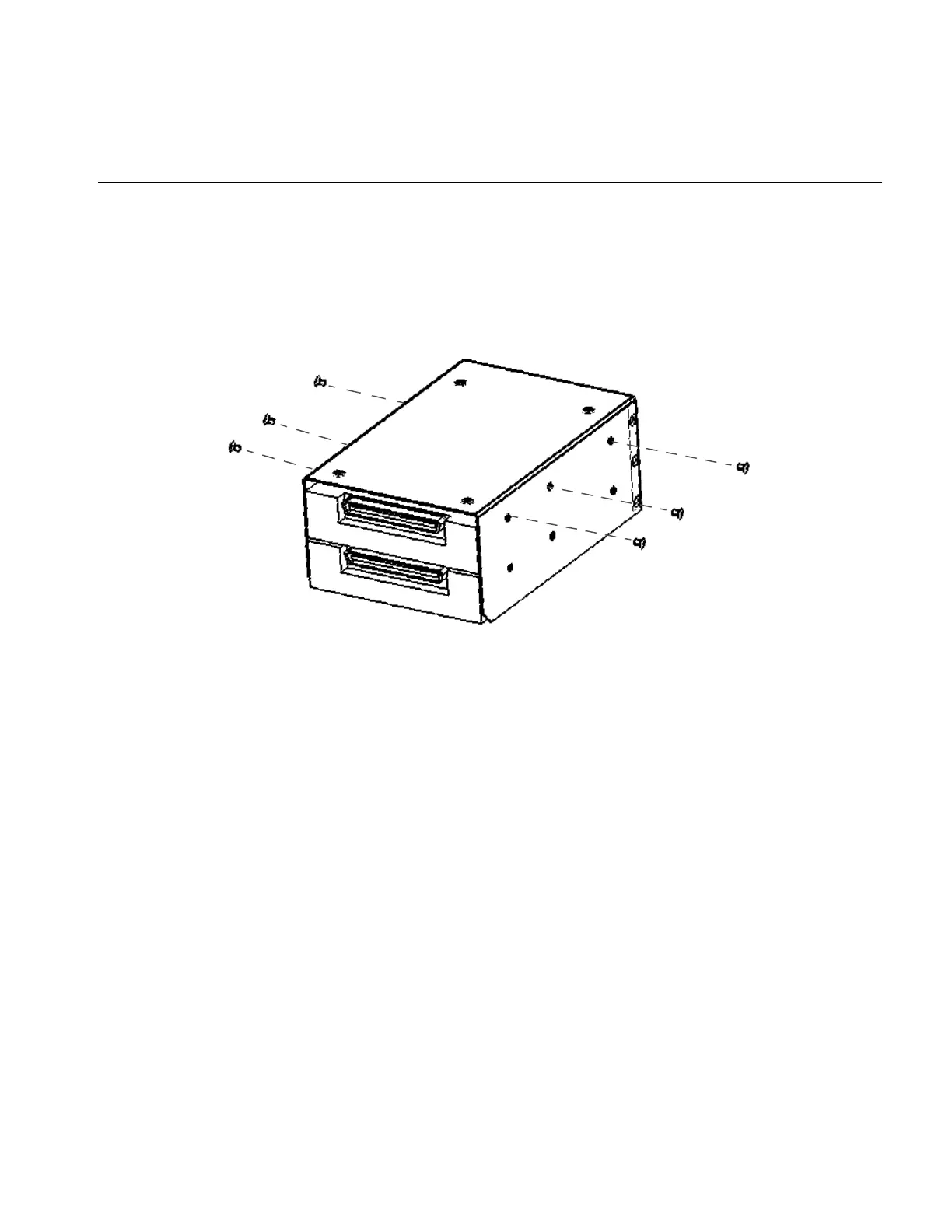

Figure 1-12 Removing the Screws that Secure the Disk Drive to the Drive Bracket
7. Slide the disk drive out of the drive bracket.
N
ote: Remove the bottom set of screws for the bottom drive.
