Silver King SKBD3LS - Parts List and Exploded View

36948-EN 19 Printed in USA 10/13 © 2013
3-Product Dairy Dispenser
Model SKBD3LS
P R I NC E C A STL E LLC
WORLDWIDE

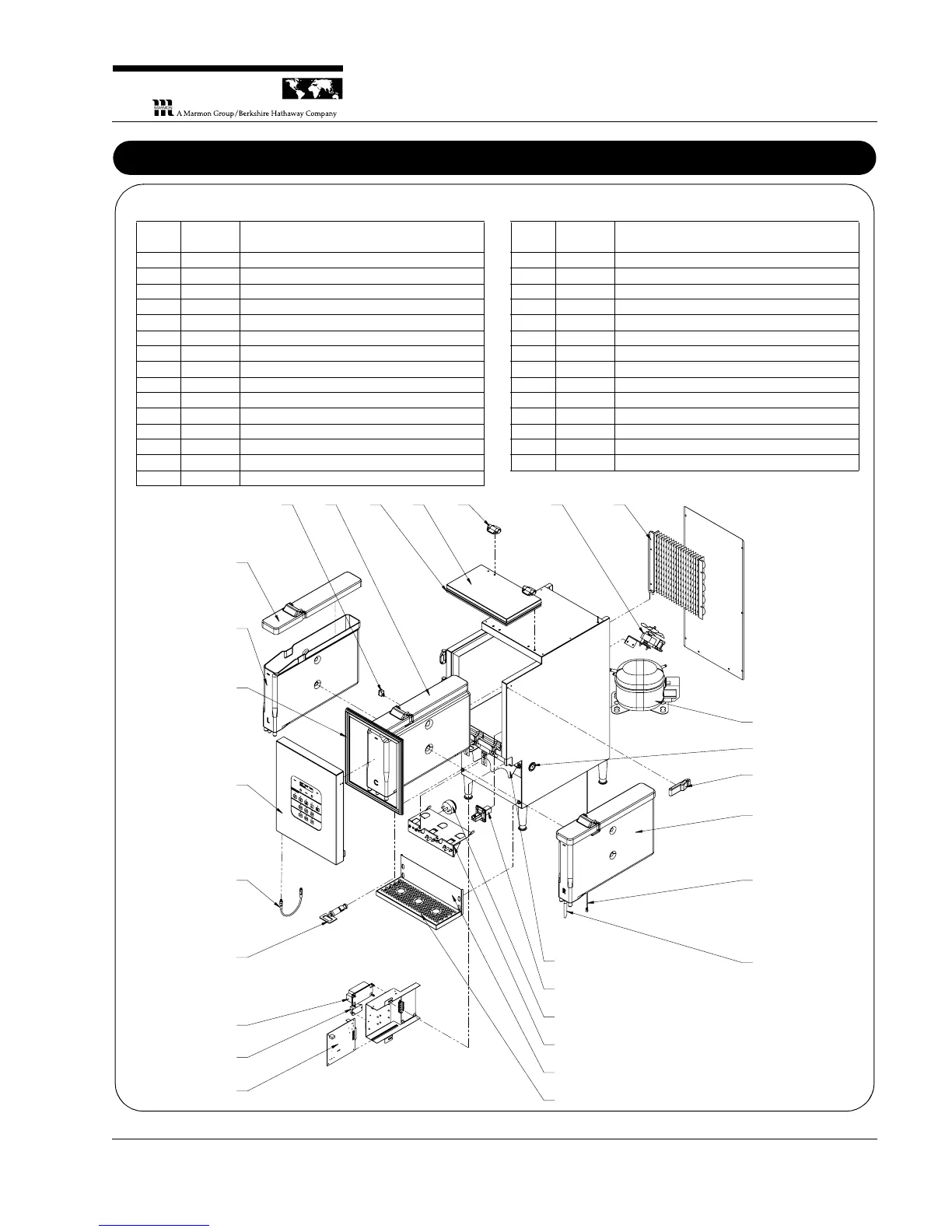

Parts List and Exploded View
NOTE: To order Parts/Service, Contact Silver King Refrigeration at 800-328-3329 for technical assistance.
Item
No
Part
No Description
1 25226S Hinge w/Screws & Covers
2 25227S Latch
3 36954S Lid Gasket SKBD3LS
4 36955S Lid Assembly SKBD3LS
5 36956S Door Gasket SKBD3LS
6 36957S Door Assembly SKBD3LS
7 36992S Control Board
8 37016S Condenser Coil SKBD3LS
9 37052S Platform for Drip Tray
10 37068S Container Assembly Left
11 37069S Container Assembly Center
12 37070S Container Assembly Right
13 811-006S Lid, Container SKBD3LS
14 37133S Valve Plunger Assembly
15 37146S Power Supply
16 37147S Relay
17 37461S Solenoid Rack Assembly
18 37168S Load Cell Assembly SKBD3LS
19 37202S Fan Assembly SKBD3LS
20 37210S Connector, Door-Display SKBD3LS
21 37222 3" Tubes (Carton of 300)
22 37239S Rocker Switch SKBD3LS
23 37281S Drip Tray SKBD3LS
24 37364S Probe Temp SKBD3LS
25 37436S Upper Cup Guide
26 37485S Solenoid
27 10343-02 Compressor 115V/60HZ EMI30HER
10344-02 Electricals - Compressor
28 37358S USB Hole Plug - 1" Dia
Item
No
Part
No Description
22 11 3 4 1 19 8
6
5
13
10
20
7
14
15
16
18
26
17
21
24
12
2
28
27
9
23
25
