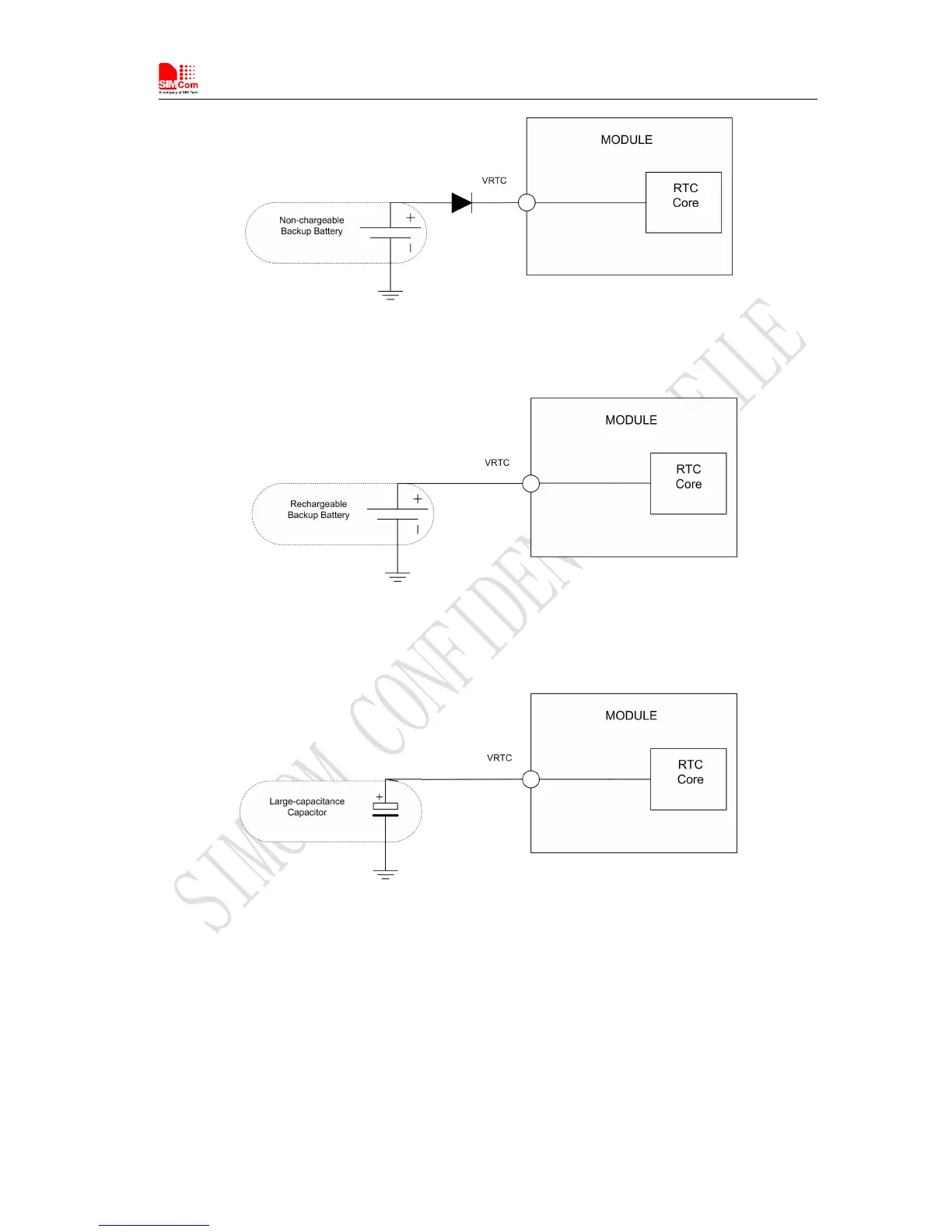

Figure 11: RTC supply from capacitor
 Non-chargeable battery backup
Figure 12: RTC supply from non-chargeable battery
 Rechargeable battery backup
Figure 13: RTC supply from rechargeable battery
Note: The VRTC can be disabled, jus disconnect it in application circuit.
Coin-type rechargeable battery is recommended, such as XH414H-IV01E form Seiko can be used.
Typical charge-discharge curves for this battery are shown in the following figure.
