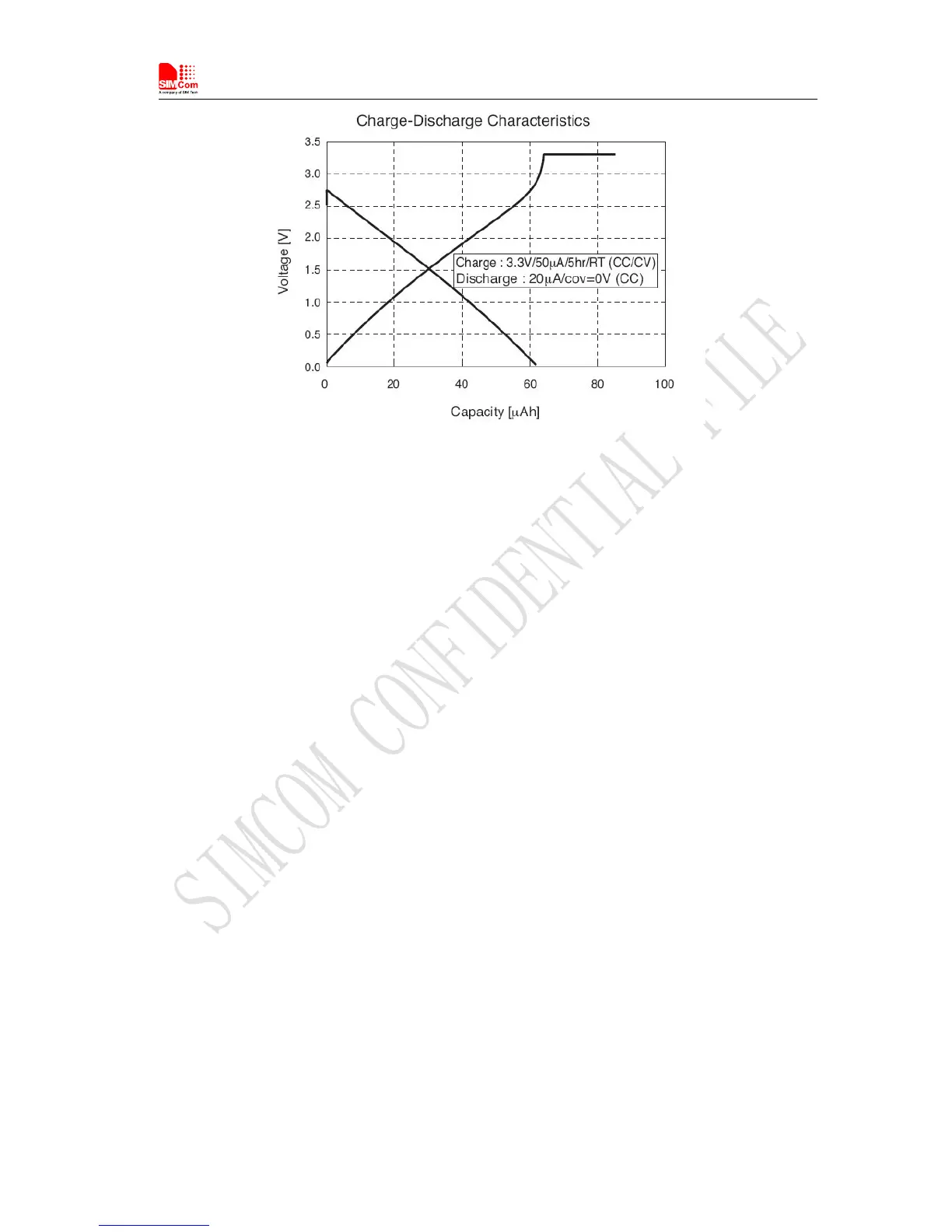

Figure 14: Seiko XH414H-IV01E Charge-Discharge characteristic
3.2 Power on/off Time Sequence
3.2.1 Power on Sequence
SIM5320AL can be powered on by POWER_ON pin, which starts normal operating mode.
POWER_ON pin is pulled up with a 200kR resistor to 1.8V in module. User can power on the
SIM5320AL by pulling the POWER_ON pin down for a short time. The power-on scenarios are illustrated
in the following figures.

SimCom SIM5320AL Specifications

General

Brand	SimCom
Model	SIM5320AL
Category	Control Unit
Language	English
