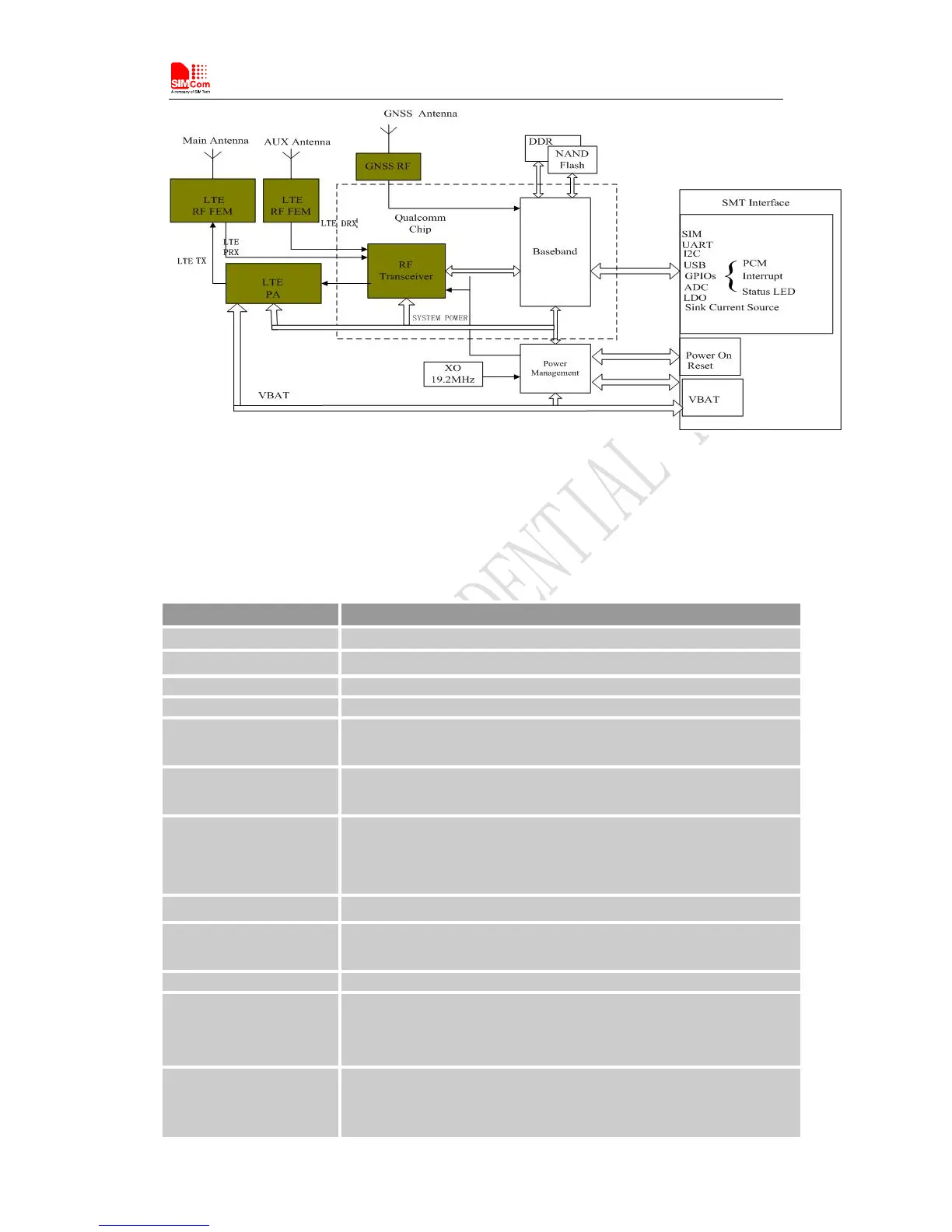

Figure 1: SIM7600V-H Block Diagram
1.4 Functional Overview
Table 2: General features
Feature
Implementation
Power supply
Single supply voltage 3.4～4.2V
Power saving
Current in sleep mode : <5mA
Radio frequency bands
Please refer to the table 1
Transmitting power
LTE: Class 3 (0.25W)
Data Transmission
Throughout
LTE Category 4: 150 Mbps (DL)
LTE Category 4: 50 Mbps (UL)
Antenna
LTE main antenna
LTE auxiliary antenna
SMS
MT, MO, CB, Text and PDU mode
SMS storage: USIM card or ME(default)
Transmission of SMS alternatively over CS or PS.
USIM interface
Support identity card: 1.8V/ 3V
USIM application toolkit
Support SAT class 3, GSM 11.14 Release 98
Support USAT
Phonebook management
Support phonebook types: DC,MC,RC,SM,ME,FD,ON,LD,EN
Audio feature
Support PCM interface
Only support PCM master mode and short frame sync, 16-bit linear data
formats
UART interface
A full modem serial port by default
Baud rate: 300bps to 4Mbps(default:115200bps)
Auto-bauding baud rate: 9600,19200,38400,57600,115200bps
