The RI pin can be used to interrupt output signal to inform the host controller such as application
CPU.
Normally RI will stay at high level until certain conditions such as receiving SMS, or a URC report
come in. It will then change to low level. It will stay low until the host controller clears the
interrupted event with “AT+CRIRS” AT command.

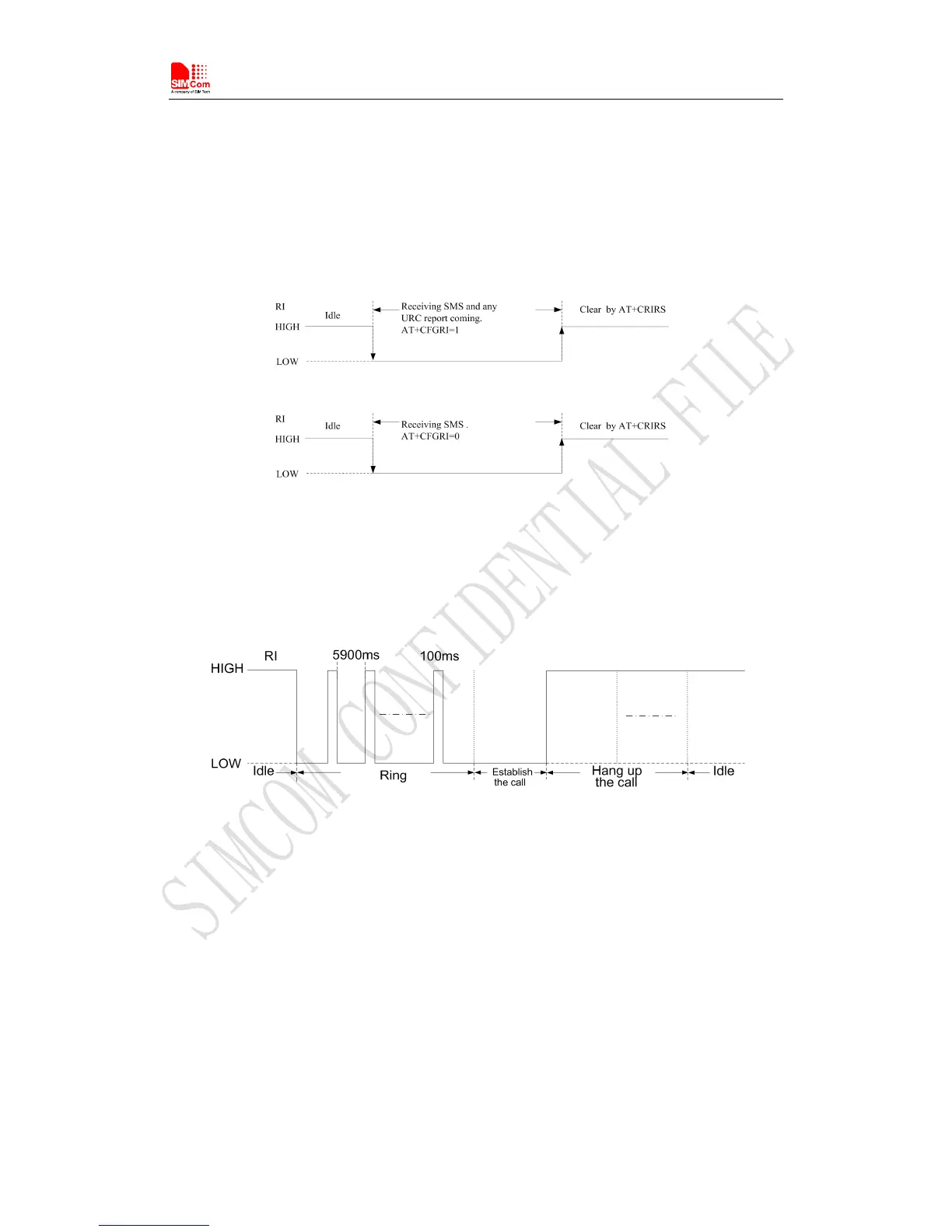

Figure 15: RI behaviour（SMS and URC report）
Normally RI will be kept high until a voice call, then it will output periodic rectangular wave with
5900ms low level and 100ms high level. It will output this kind of periodic rectangular wave until
the call is answered or hung up.
Figure 16: RI behaviour（voice call）
Note: For more details of AT commands about UART, please refer to document [1] and [22].
DTR pin can be used to wake Module from sleep. When Module enters sleep mode, pulling down
DTR can wake Module.
The Module contains a USB interface compliant with the USB2.0 specification as a peripheral, but
the USB charging function is not supported.
