6.1.2 DIMENSIONS

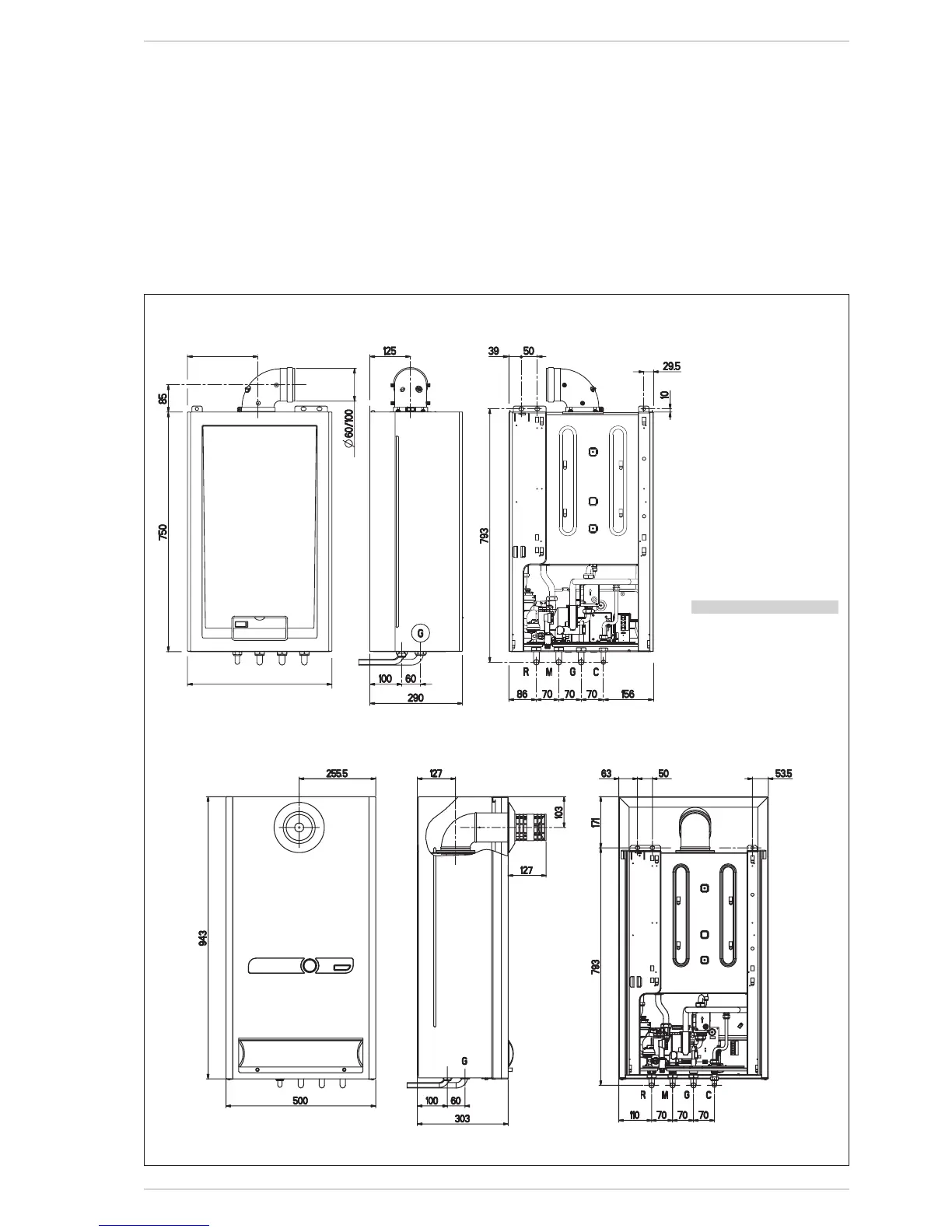

Fig.5

6.1.1 INTRODUCTION

“FORMAT DGT”arethegasfuelledbur-

ner groups for heating, constructed to

satisfy the needs of collective residen-

tialhousingandmodernplant.Theyare

apparatuses which conform to the Eu-

ropean directives 90/396/CE, 2004/108/

CE,2006/95/CEand92/42/CE. The can be

fuelledbynaturalgas(G20)orLPG(G30-

G31).

Thismanualgivestheinstructionsfor:

- Model“30i“isaninternallyinstalled

boiler.

- Model “30e“ is anexternallyinstal-

ledboiler.

Theinstructionsgiveninthismanualare

provided to ensure proper installation

andoperationoftheseboilers.

THESE BOILERS INSTALLED IN

AUSTRALIA MUST CONFORM TO

AUSTRALIAN STANDARDS AS 5601,

LOCAL GOVERNMENT LAWS AND

REGULATIONS.

6.1 DESCRIPTION OF THE BOILER

CONNECTIONS

R C.H.return

 G3/4”(UNI-ISO228/1)

M C.H.flow

 G3/4”(UNI-ISO228/1)

G Gasconnection

 G3/4”(UNI-ISO228/1)

C Fillingsystem

 G1/2”(UNI-ISO228/1)

DIMENSIONS

L mm 450

K mm 221

“30i SYSTEM” model

“30e SYSTEM” model
