6.1.5 MAIN COMPONENTS

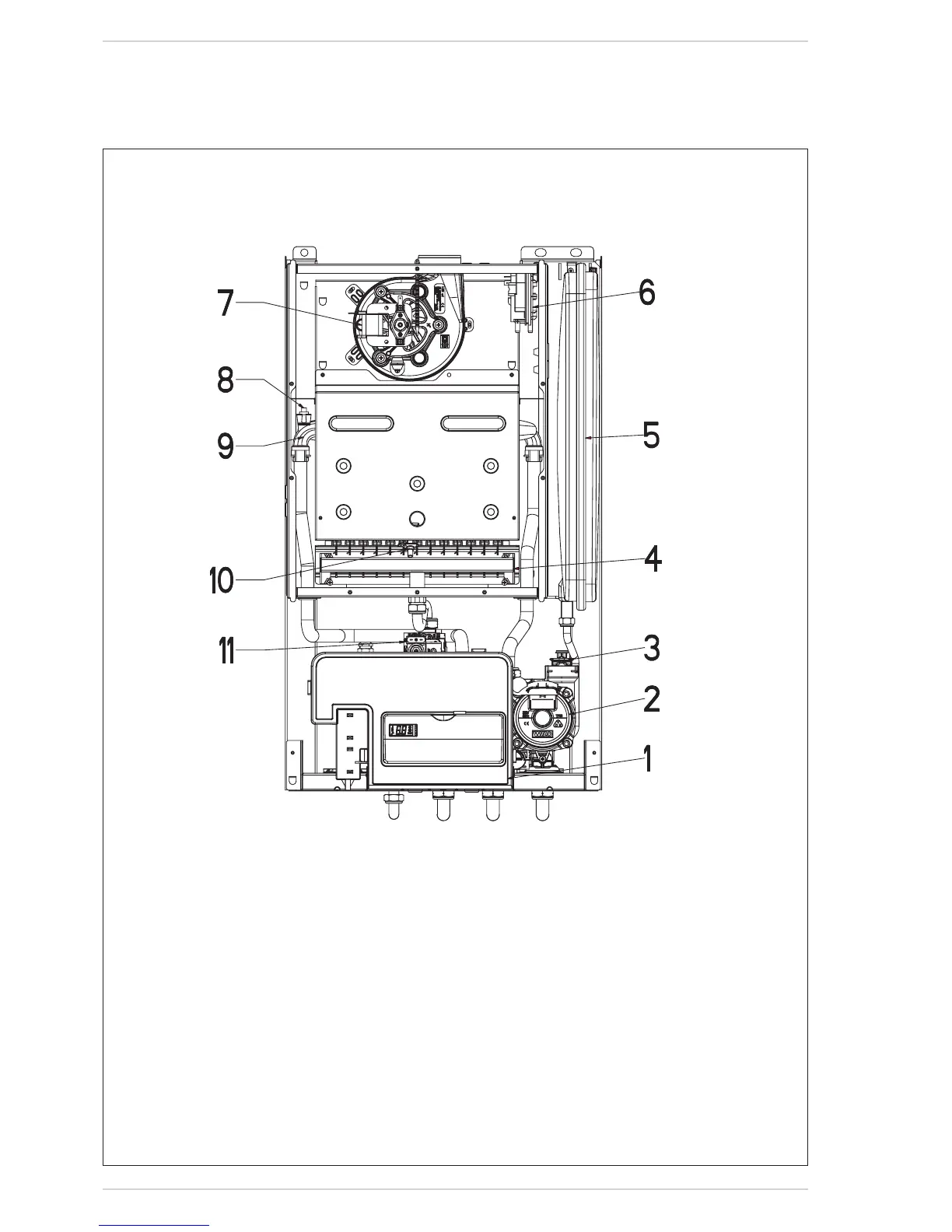

Fig.7
KEY
 1 Controlpanel
 2 Pump
 3 Airreliefvalve
 4 Burners
 5 Expansionvessel
 6 Airpressureswitch
 7 Fan
 8 C.H.sensor(SM1/SM2)
9 Primaryexchanger
10 Ignition/detectionelectrode
11 Gasvalve
“30i - 30e SYSTEM” models
