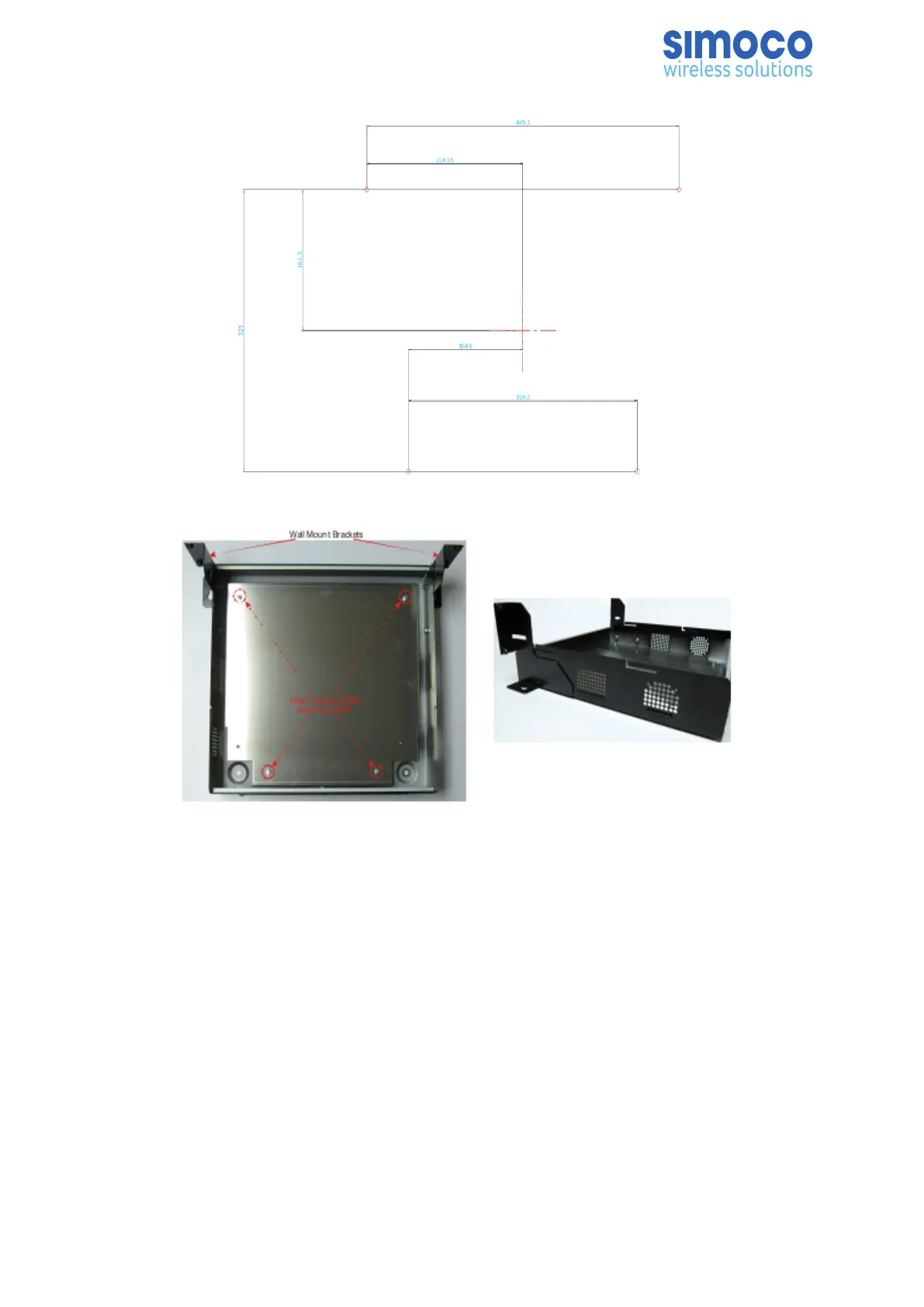

Figure 4: Mounting holes drilling template (dimensions in mm).
Figure 5: Wall Mount Assembly.
FITTING THE SDB670 BASE STATION
10. Ensuring that all cables are clear of the mounting position and cannot be
trapped, offer the base station up to the wall mount unit and fit the four
keyhole standoffs on the base station (two per side) into the mounting grooves
on the wall mount case (see Figure 5 for details).
11. Secure the front panel of the base station to the wall mount brackets using four
M6 x 12 mm pozidriv retaining bolts with plastic cup washers (two per side) (see
Figure 6).
Doc Number: TNM-I-E-0041 Revision 1.6 Page 29
