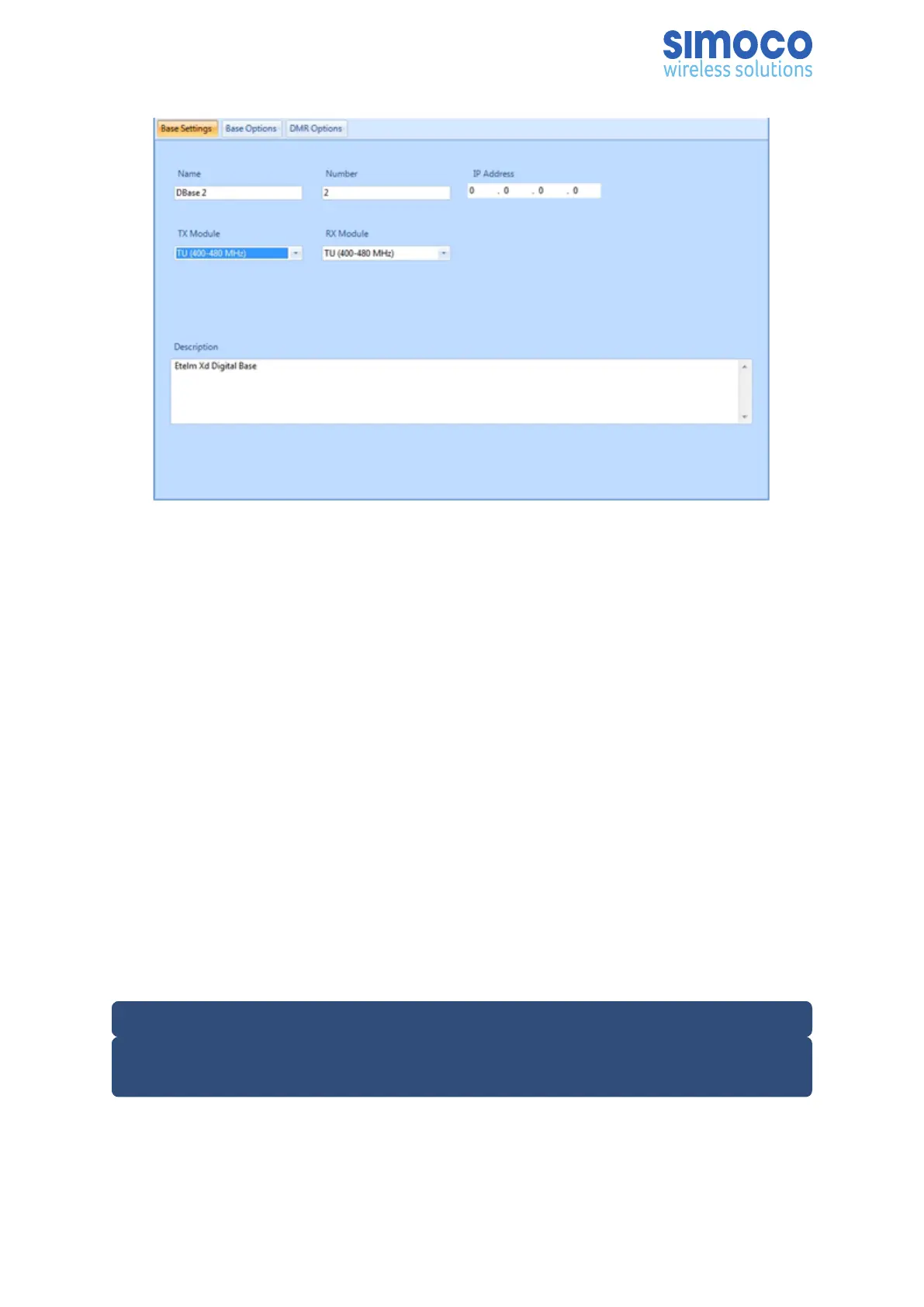

Figure 11: Base configuration page – Base Settings tab.
e. On the base Configuration page on the Base Settings tab, set the ‘IP
Address’ to that sent to the base with the IP Configuration tool.
f. On the tab of the base configuration page, select the < icon that is
displayed to save the changes that have been made to the configuration
page.
g. Create a working configuration that includes the new DMR Base in
accordance with the DMT User Manual [2] and appropriate for the system
in which it is installed.
h. On the DMR Tier II ribbon bar, select the ‘Write’ button. The ‘Write Base
(s)’ page will be displayed (see Figure 12) and any open base
configuration pages will be closed.
1. On the ‘Write Base(s)’ page, carry out the following:
2. Select the new DMR Base that is included in the working configuration.
3. Select the ‘Write’ button. A progress bar will briefly be displayed.
4. After a few seconds, check that a green dot appears in the Success column for
the selected base (indicating that the Write operation has been successful) and
a ‘Reboot’ button appears at the bottom of the page.
Note.
To complete the software configuration update procedure for the selected DMR Base,
the base must be re-booted.
5. Select the Reboot button to enable the base to use the new configuration.
Doc Number: TNM-I-E-0041 Revision 1.6 Page 39
