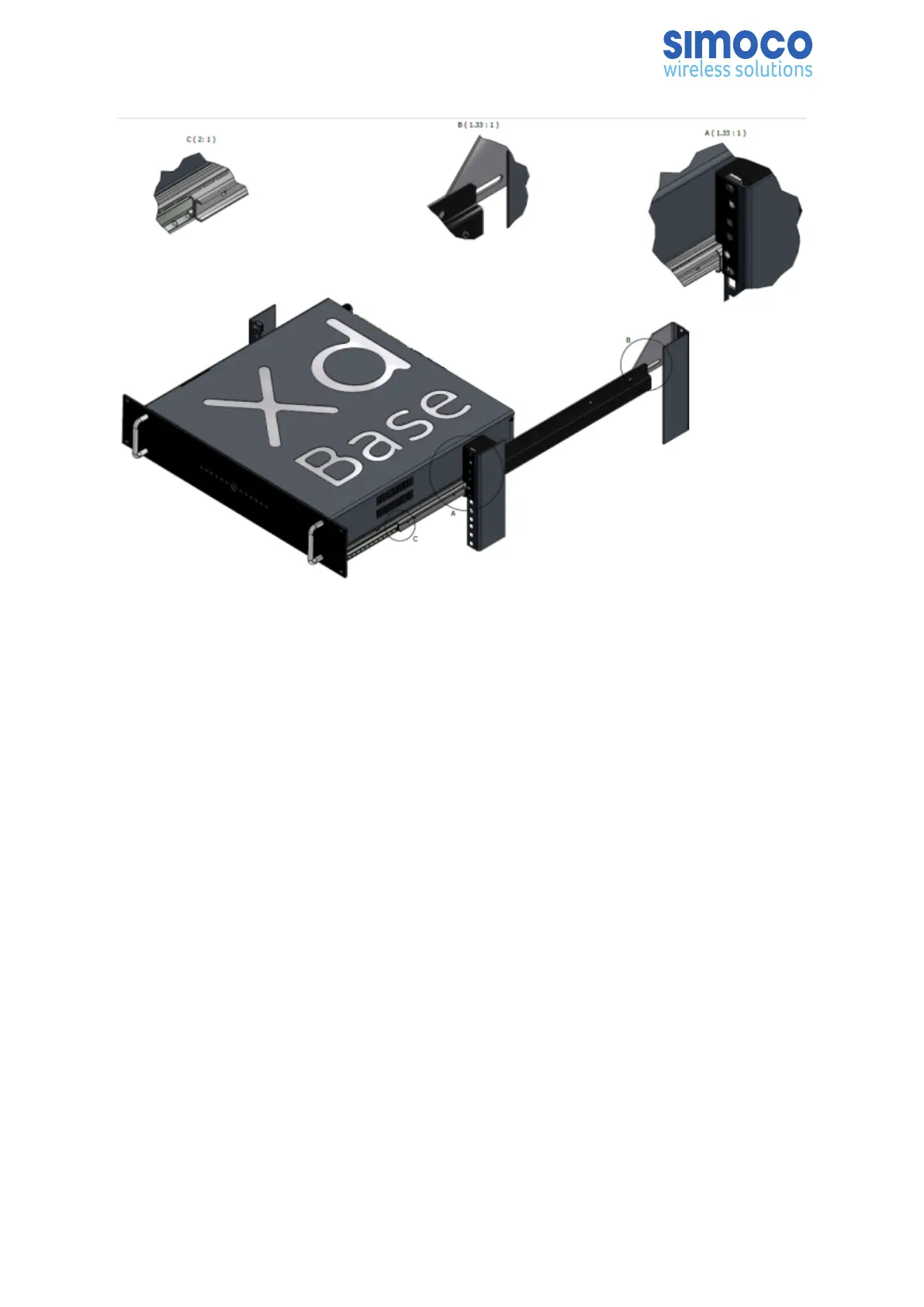

Figure 8: Inserting and securing the base station into the rack.
c. Fit the pair of rack mount support assemblies into the rack at suitable
heights as follows:
d. Secure the rack mount support assemblies to the front rack mounting
support rails using four M6 nuts and plain washers (two each per side)
provided.
e. Adjust the rack mount support assemblies to the correct length and
secure them to the rear rack mounting support rails using the four M6 x
16 mm pan head Pozidriv retaining bolts and cage nuts (two each per
side).
f. Tighten the four M6 nuts that secure the front and rear rack mount
support brackets together.
g. Fit M6 cage nuts into the appropriate positions on the front rack
mounting support rails so that the base station can be secured into the
rack.
h. Pull out the slide runners and fit the base station onto the runners.
Ensure that the keyhole standoffs on the base station (two per side) are
correctly located in the keyhole slots on the slide rails.
6. Secure the base station into the rack using the four M6 x 12 mm Pozidriv
retaining screws (with plastic cup washers).
Doc Number: TNM-I-E-0041 Revision 1.6 Page 34
