3-14
Use the following to wire the QuickConnect smoke sensors.
CAUTION: Do not loop wire under terminals. Break wire runs to provide
supervision.
(SEE
NOTE 1)
4098-9788
FROM
PANEL
-IDNet
+IDNet
SHIELD IS
OPTIONAL
(SEE NOTE 3)
SHIELD
SHIELD
SHIELD
TO OTHER IDNet
DEVICES
(SEE NOTE 2)
-IDNet
+IDNet
4098-9788
4098-9788

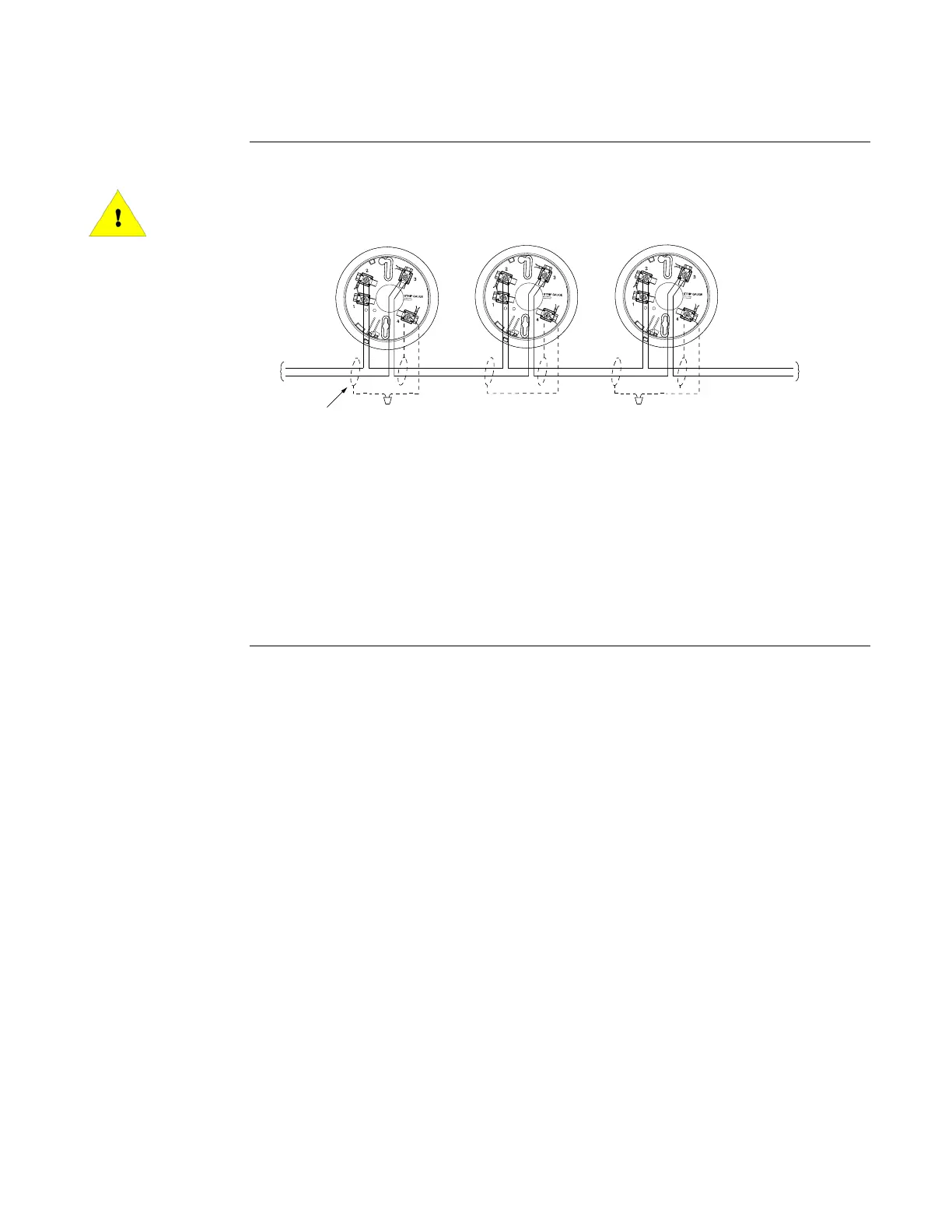

Figure 3-12. QuickConnect Sensor Connections
FigureTag FD4-709-10
Notes:
1. 4098-9757 QuickConnect sensor uses the 4098-9788 base.
2. Maximum quantity of devices per IDNet circuit is 250 for the 4010, 4100U and 4100ES (with
4190-3106) panel.
3. If shield is used, twist shield wires together and cap with wire nut. Shield should be insulated
from electrical box.
4098 TrueAlarm QuickConnect Smoke Sensors,
Continued
Wiring
To Next Page
