4.4.2 Setting the address of the base
Each sensor base has a unique address. This address is associated with a custom label that identifies its physical location within a building.
Ensure that the address and location of the base match the address listed in the specification sheets of the following:
• 2120 Job Configuration Report
• Programmer’s Report for the 4020 System
• Programmer’s Report for the 4100+ System
• Programmer’s Report for the 4100U System
• Programmer’s Report for the 4010 System
• Programmer’s Report for the 4008 System
• Programmer’s Report for the 4120 System
• Programmer’s Report for the 4007ES System
• Programmer’s Report for the 4010ES System
• Programmer’s Report for the 4100ES System
See Figure 9 for the DIP Switch location for 4098-9775, 4098-9776, 4098-9777, 4098-9780, 4098-9789, 4098-9791, 4098-9792, 4098-9793,
4098-9766, and 4098-9767 Sensor Bases. See Figure 10 for the DIP Switch locations of 4098-9770, 4098-9771, 4098-9772, 4098-9773 and
4098-9794 Sensor Bases.
Each sensor base has a unique address. This address is associated with a custom label that identifies its physical location within a building.
Ensure that the address and location of the base match the address listed in the specification sheets of the 2120 Job Configuration Report
or the Programmer’s Report for the FACP.

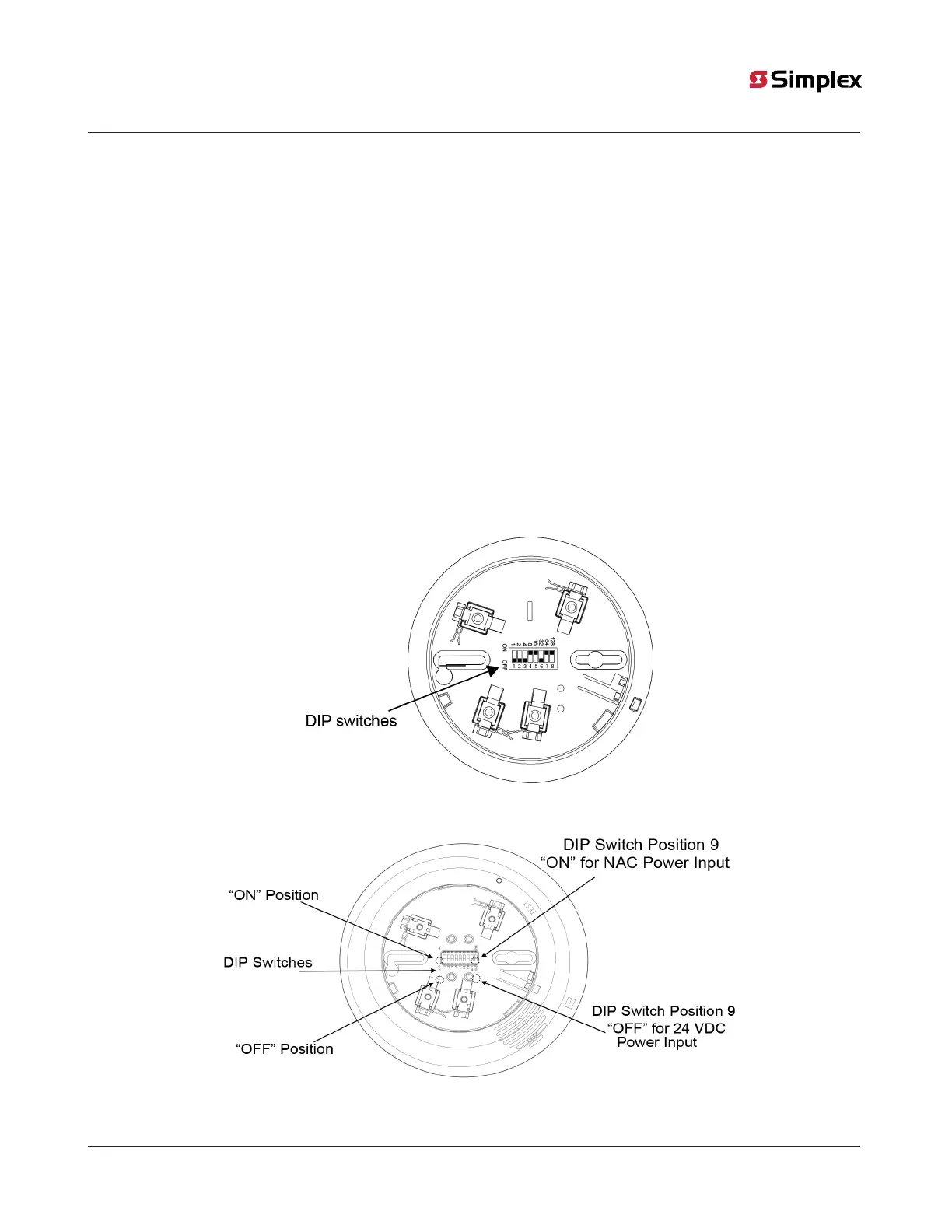

Figure 9: 4098-9775, 4098-9776, 4098-9777, 4098-9789, 4098-9790, 4098-9791,
4098-9792, 4098-9793, 4098-9766, and 4098-9767 location of the DIP switches
Figure 10: 4098-9770, 4098-9771, 4098-9772, 4098-9773 and 4098-9794 Sensor Bases location of DIP switches
page 23 574-709 Rev. AP
4098 Detectors, Sensors, and Bases Application Manual
