4.
Re-install the detector head.
5.
Remove the dust co
ver from the C
ORC, as shown in the follo
wing figure.
6.
The CORC r
eplacement is complete.

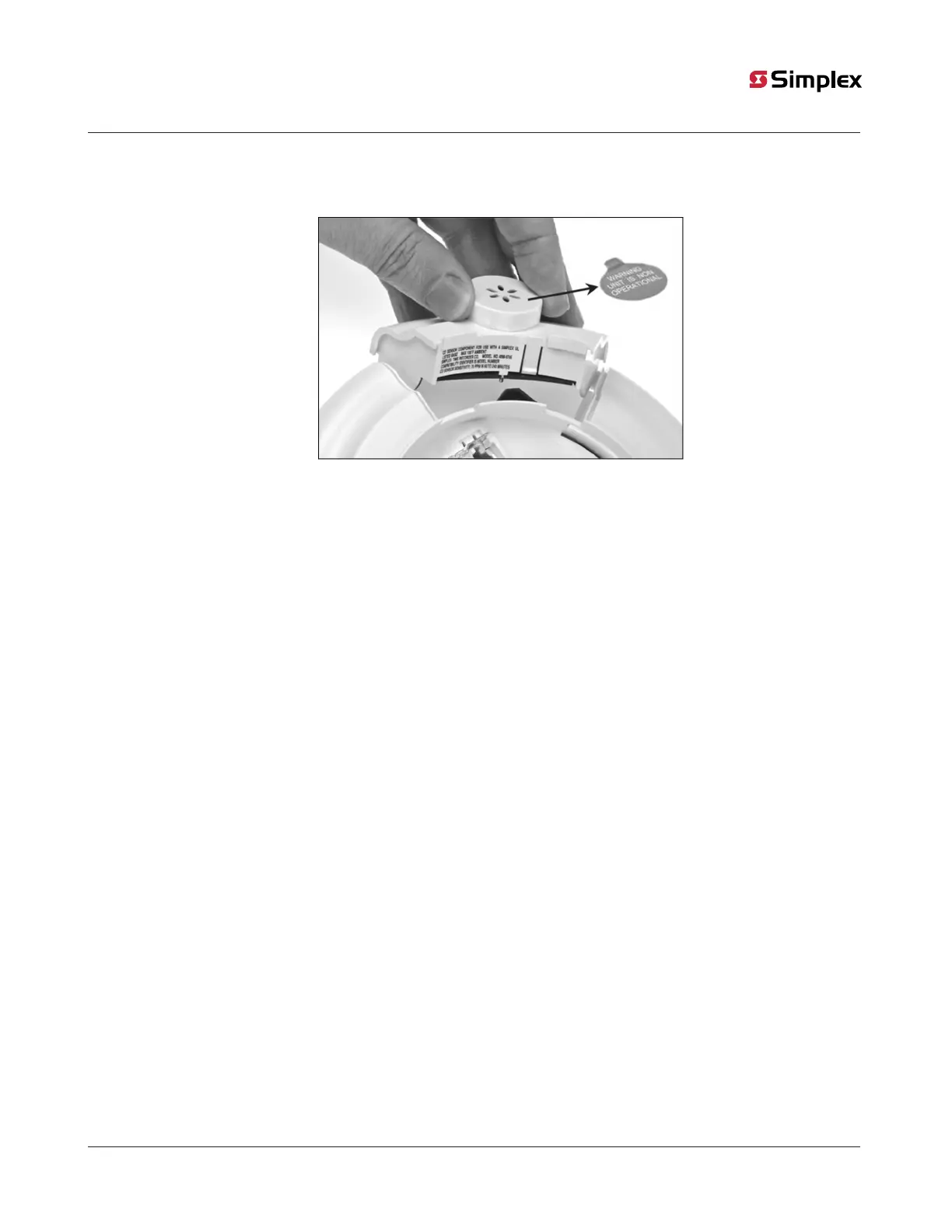

Figure 18: Installing the Replacement C
ORC
Note:
The fire alarm panel must be set to the corr
ect date. Otherwise a false End of Life trouble for the C
ORC may be annunciated.
page
29
574-709
Rev.
AP
4098 Detectors, Sensors, and Bases Application Manual
30
32
Table of Contents
Table of Contents
3
Cautions, Warnings, and Regulatory Information
5
Overview
6
Special Considerations
6
Special Considerations for Smoke Detectors and Sensors
6
Smoke Detector and Sensor Applications
6
Where to Place Detectors and Sensors
6
Correct Locations for Detectors and Sensors
6
Where Not to Place Detectors and Sensors
9
Incorrect Locations for Detectors and Sensors
9
Principles of Operation
10
Introduction
10
Heat Detector Operation
10
Photoelectric Smoke Detectors or Sensors
11
Carbon Monoxide Gas Detectors or Sensors
11
4098 Smoke Detectors, Heat Detectors and Bases
12
4098 Smoke Detectors
12
Smoke Detector Limitations
12
Specifications
12
Mounting Requirements
12
4098 Heat Detectors
13
Heat Detector Types
13
Specifications
13
4098 Bases
14
Mounting
14
Wiring
16
Truealarm Sensors and Sensor Bases
21
Introduction
21
4098-9733, 4098-9734, and 4098-9778 Spacing
21
4098 Truealarm Sensors
22
Special Applications
22
Mounting
22
4098 Truealarm Sensor Bases
22
Specifications
24
Setting the Address of the Base
25
Address Setting for the 2120 CDT System
26
Address Setting for the 4010, 4020, 4100+, 4100U, 4100ES, 4010ES, 4007ES, 4008, or 4120 System
26
Wiring
27
CORC Replacement Instructions
30
Setting the Tone for the 4098-9773 CO Sounder Base and the 4098-9772 Sounder Base
32
Accessories
33
2098-9737 Relay Module Wiring
33
4098-9822 Relay Module Wiring
34
Relay Module Installation
34
Remote LED Module
35
Compatibility and Testing
36
Compatibility for 4098 Detectors and Detector Bases
36
Compatibility for 4098 Sensors and Sensor Bases
36
Maintenance and Testing
37
Maintenance
37
Testing
37
Preferred Method of Testing Smoke Detectors or Sensors
38
Test Equipment Available
38
Alternate Method for Testing Sensors
39
Magnetic Test for Photoelectric Detectors
40
Maintenance of the CO Sensor
41
End of Life Service
41
Standard Maintenance
41
CO Sensor Testing Flowcharts
42
Cleaning
43
Photoelectric Smoke Detector or Sensor Cleaning
43
Trouble Indications
43
Trouble Indications for Truealarm Sensors
43
Fire Alarm Trouble and Maintenance Log
44
