Simplex 6400 User Manual

CLOCK TYPE NO.
DESCRIPTION OF SECONDARY CLOCK(S)
1 SIMPLEX 59TH MINUTE REFERENCE
I
I
2 1 SIMPLEX 58TH MINUTE REFERENCE
I
1 SIMPLEX 44TH MINUTE REFERENCE
I
4
I
1 -MINUTE REVERSE POLARITY
I
I 5
I ‘/i-MINUTE REVERSE POLARITY
I
6 HONEYWELL, FARADAY (1300 SERIES), CINCINNATI (D SYNCHRONOUS)
7 NATIONAL TIME (HOURLY)
8
NATIONAL TIME (12-HOUR CORRECTION)
9 STROMBERG (SYNCHRONOUS, 56TH MINUTE REFERENCE, ELECTRONIC)
I
1 STANDARD ELECTRIC TIME (FMT-DUAL MOTOR, COUCH (C452014 1
THROUGH C452019 AND C452133 THROUGH C452145))
11 SIMPLEX 45TH MINUTE REFERENCE (DUAL MOTOR)
I
SIMPLEX 59TH MINUTE REFERENCE (DUAL MOTOR)
13 CINCINNATI D6 (IMPULSE, 12-HOUR CORRECTION)
14 CINCINNATI D3
15
16
STROMBERG (IMPULSE, 58TH MINUTE REFERENCE)
STANDARD ELECTRIC TIME (AR2A AND ARSA-IMPULSE, 60TH MINUTE
REFERENCE)
17
[ STANDARD ELECTRIC TIME (AR2-IMPULSE, 59TH MINUTE REFERENCE)
I

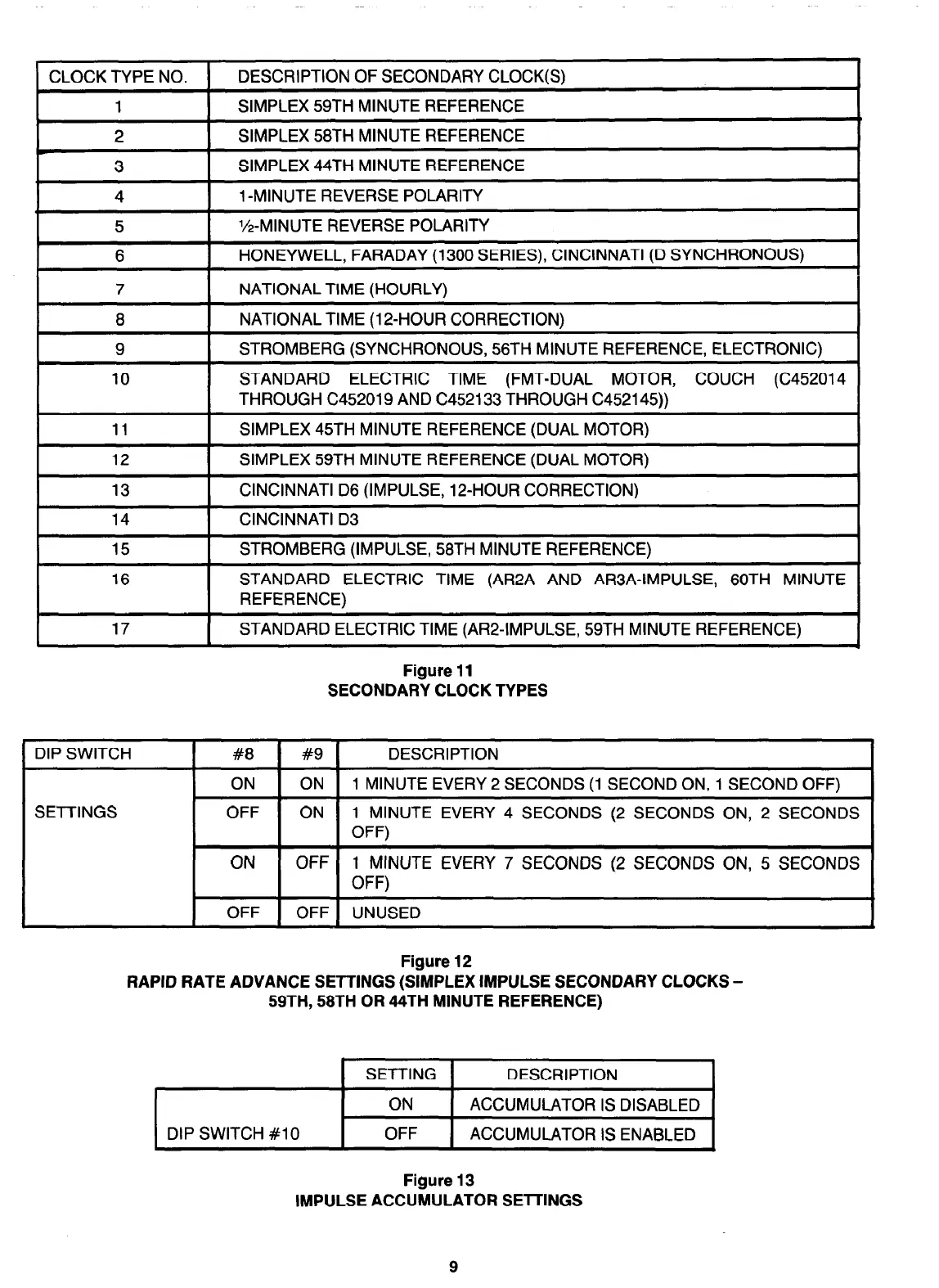

Figure 11
SECONDARY CLOCK TYPES
DIP SWITCH
1 #8 1 #9 1
DESCRIPTION
I
1 I
1 MINUTE EVERY 2 SECONDS (1 SECOND ON, 1 SECOND OFF)
I
SETTINGS
OFF ON 1 MINUTE EVERY 4 SECONDS (2 SECONDS ON, 2 SECONDS
OFF)
ON OFF 1 MINUTE EVERY 7 SECONDS (2 SECONDS ON, 5 SECONDS
OFF)
I
I
OFF 1 OFF 1 UNUSED
-1
Figure 12
RAPID RATE ADVANCE SETTINGS (SIMPLEX IMPULSE SECONDARY CLOCKS -
59TH, 58TH OR 44TH MINUTE REFERENCE)
1 SETTING 1
DESCRIPTION
DIP SWITCH #10
ON ACCUMULATOR IS DISABLED
OFF ACCUMULATOR IS ENABLED
Figure 13
IMPULSE ACCUMULATOR SETTINGS
9
