Simrad AP26 and AP27 Autopilots
108 20221586B

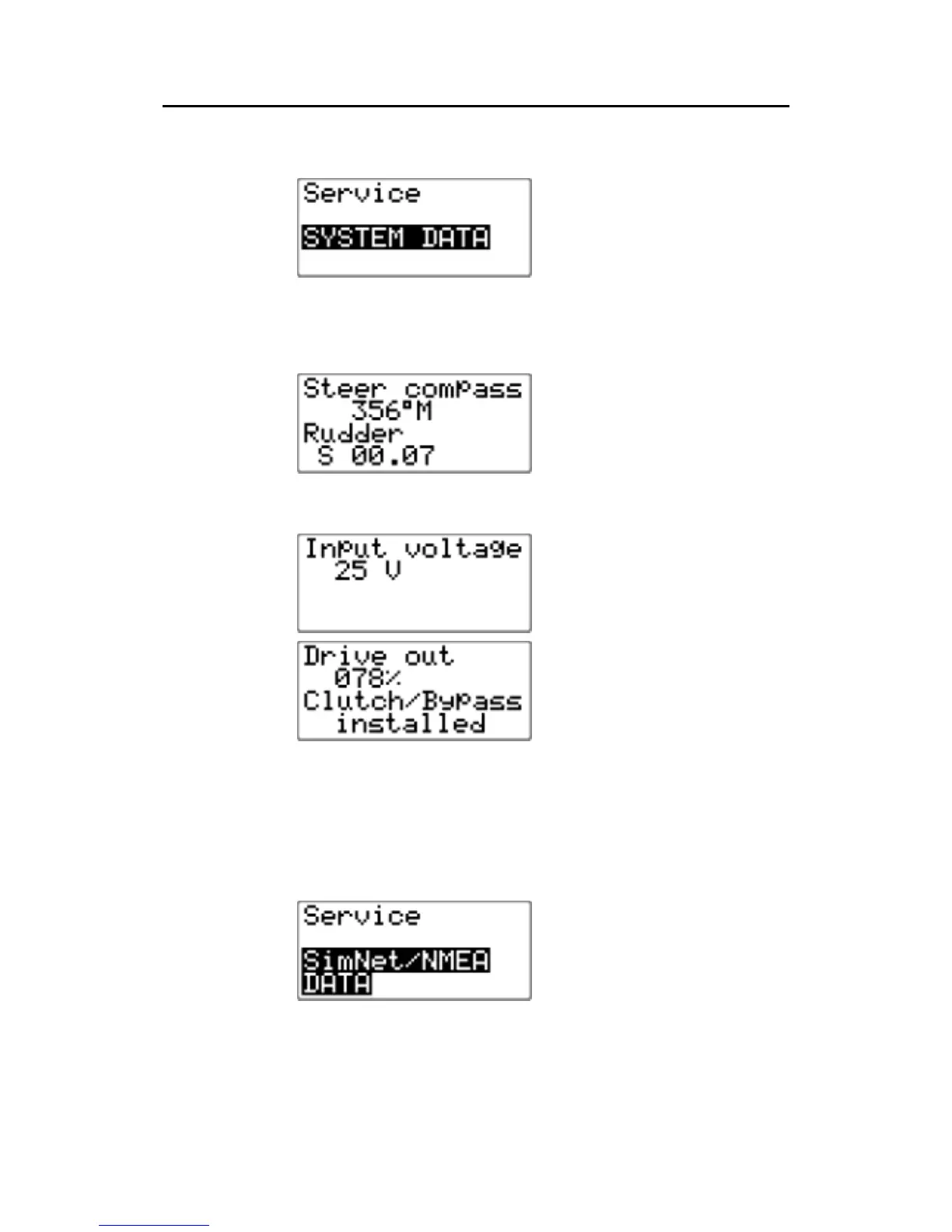

System Data Menu
Select System data by rotating
the course knob clockwise.
Step through the menu by
pressing the STBD button. The
menu provides you with
additional system data that can
be useful when testing or
trouble shooting the system.
Steer compass
Steering Compass readout,
M=Magnetic, T=True
Rudder
Rudder angle. Normally
between zero and 45 degrees.
Input voltage
Mains voltage on input
terminals.
Drive out
Power needed to drive the unit
in percent of full (100%) to get
satisfactory rudder speed.
Clutch/bypass
Verifies if a clutch or bypass
valve has been activated when
performing the rudder test.
SimNet and NMEA Data Screen
Select the screen by pressing
the STBD button and confirm
by rotating the course knob
clockwise.
Step through the menu by pressing the STBD button. The menu
provides you with status information about the different SimNet
and/or NMEA messages used by the system.
