Installation
20221586B 65
On-Off
Vsys+
AUTOPILOT COMPUTER
MAIN PCB
ROBNET
Bus+
Vsys
Wh
Bn
Bus
Pnk Gry
Yel
AP26
CONTROL UNIT
REAR VIEW
TB15

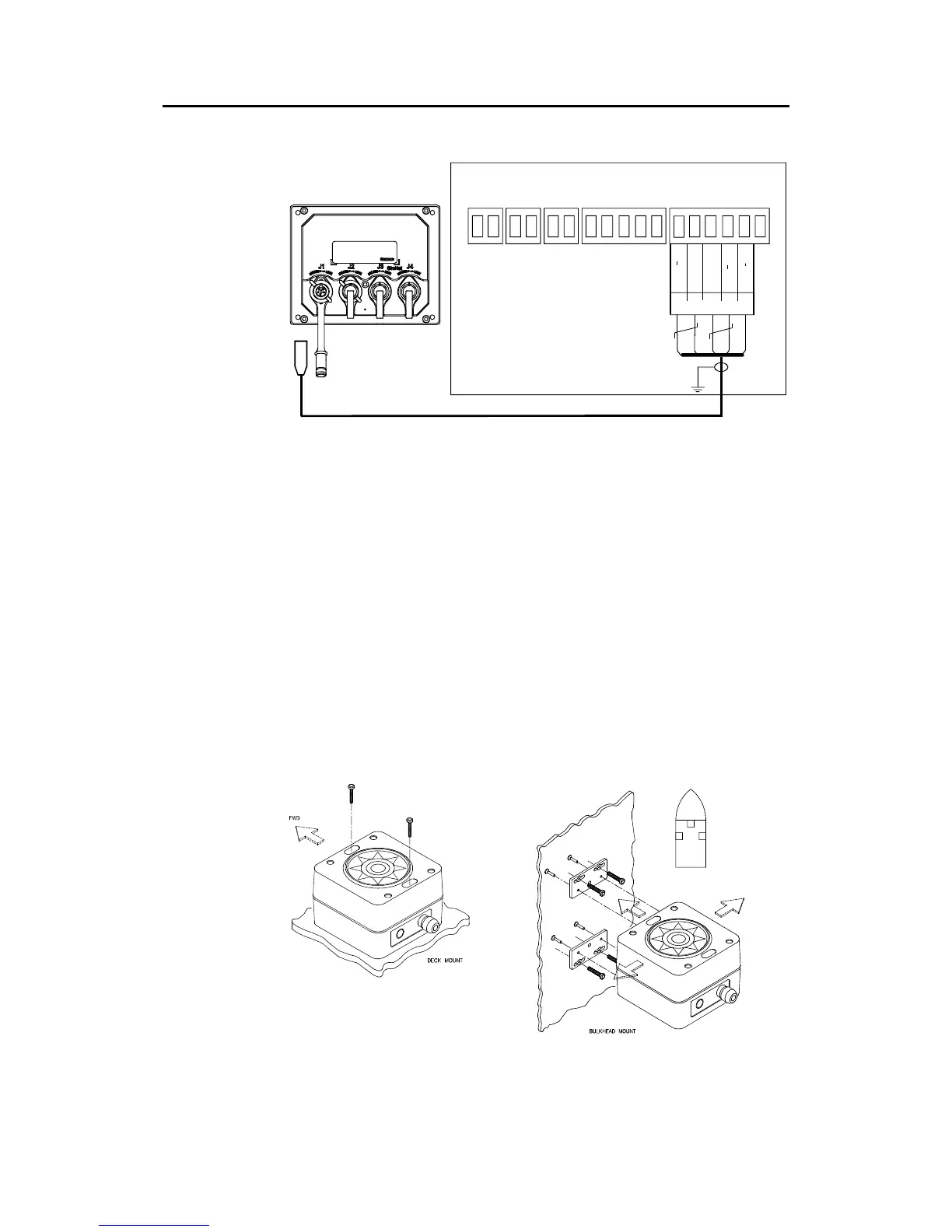

Figure 3-11 Control unit connection
J1 and J2 (left) are Robnet2 connectors. J3 and J4 are SimNet
connectors.
AP27 connection
If a Simrad AP27 is part of the system, use the Robnet2
connector in a free receptacle (see Figure 3-9). Alternatively cut
the connector from the cable and connect the wires in parallel
with the cable shown on Figure 3-11 using the same colour code.
Note ! The AP27 cable contains an air-breathing tube. Check that the
tube is open after you have cut the cable.
3.13 RC36 Rate Compass installation
Figure 3-12
RC36 mounting
The heading sensor is the most important part of the autopilot
system and great care should be taken when deciding the
