Installation
20221586B 57

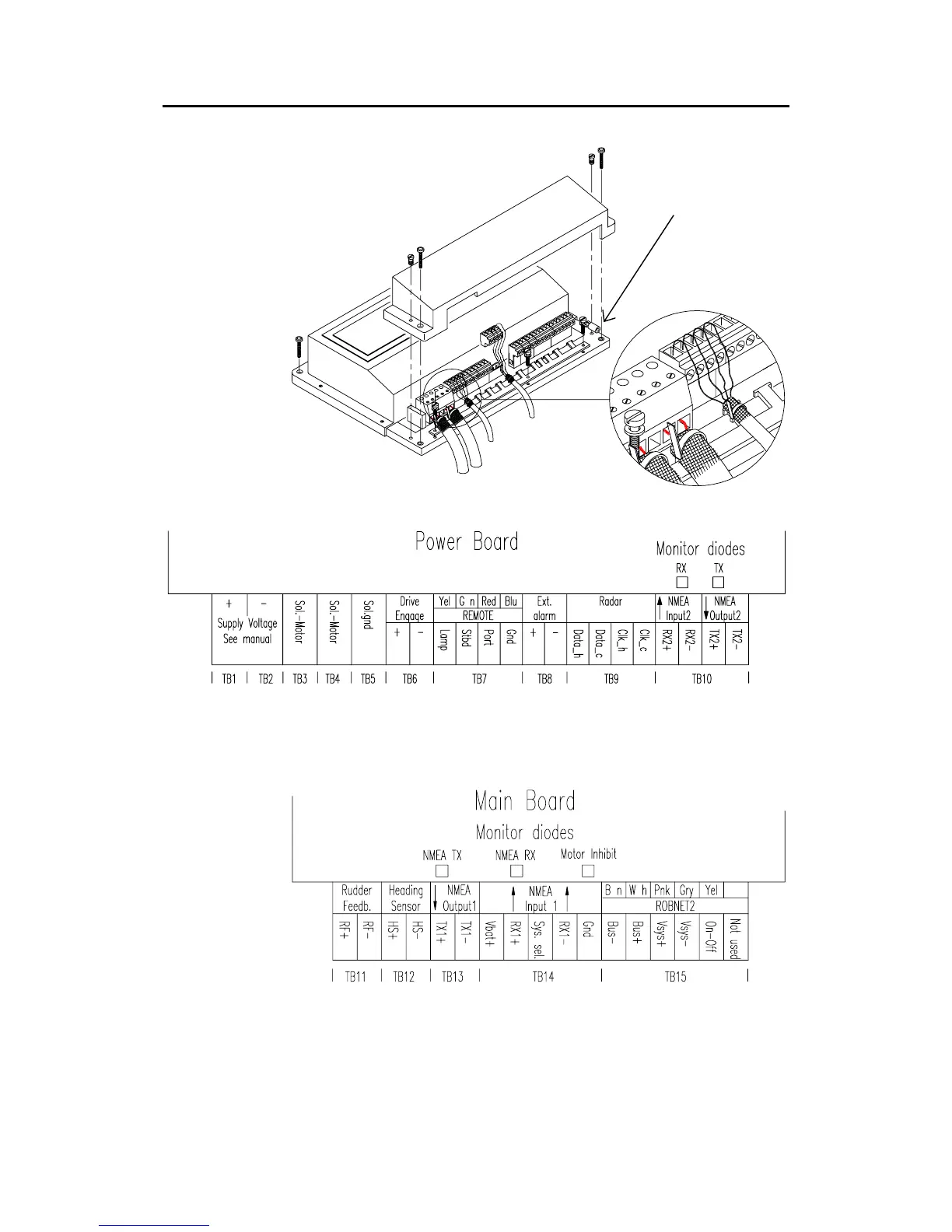

Power Board terminals
Main Board terminals
Note!
The Mains input
is not polarity
protected on
AC40.
Ground terminal
TB9 and TB10 are not on the
AC10 Power Board
