20 | Installation

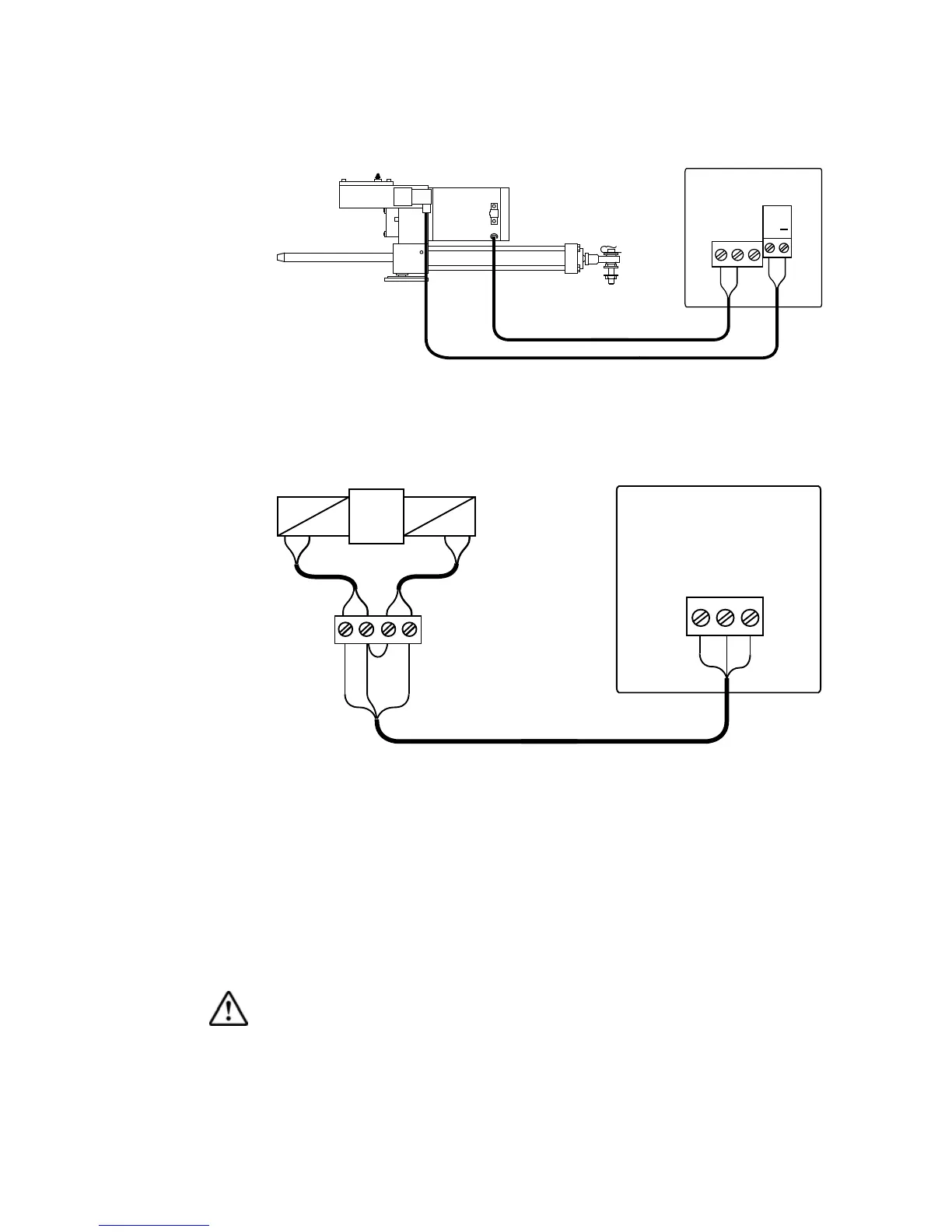

Connecting a hydraulic linear drive
+
DRIVE
DRIVE
ENGAGE
SOL.-MOTOR
SOL.-MOTOR
SOL.GND
AC12 Autopilot ComputerHydraulic Linear Drive
Figure 2-11 Connecting a hydraulic linear drive
Connecting a solenoid valve
Sol.
Sol. gnd.
Sol.
DRIVE
SOL.-MOTOR
SOL.-MOTOR
SOL.GND
AC12 Autopilot Computer
Solenoid Valve
Figure 2-12 Connecting a solenoid valve
2.9 AP24 and AP28 Control unit
installation
Avoid mounting the control unit(s) where it is easily
exposed to sunlight, as this will shorten the lifetime of
the display.
Do not install the control unit where moisture is
present at the rear. It may cause damage by
entering the breathing hole or by coming into
contact with the electrical connectors.
