Simrad AP28 Installation Manual

30 | Installation
2.16 External alarm
The external alarm circuit has an open collector output
for an external alarm relay or buzzer. The operating
voltage for the circuit is the main supply voltage. Max.
load on external alarm output is 0.75 Amp.
+
+
Autopilot Computer
ALARM

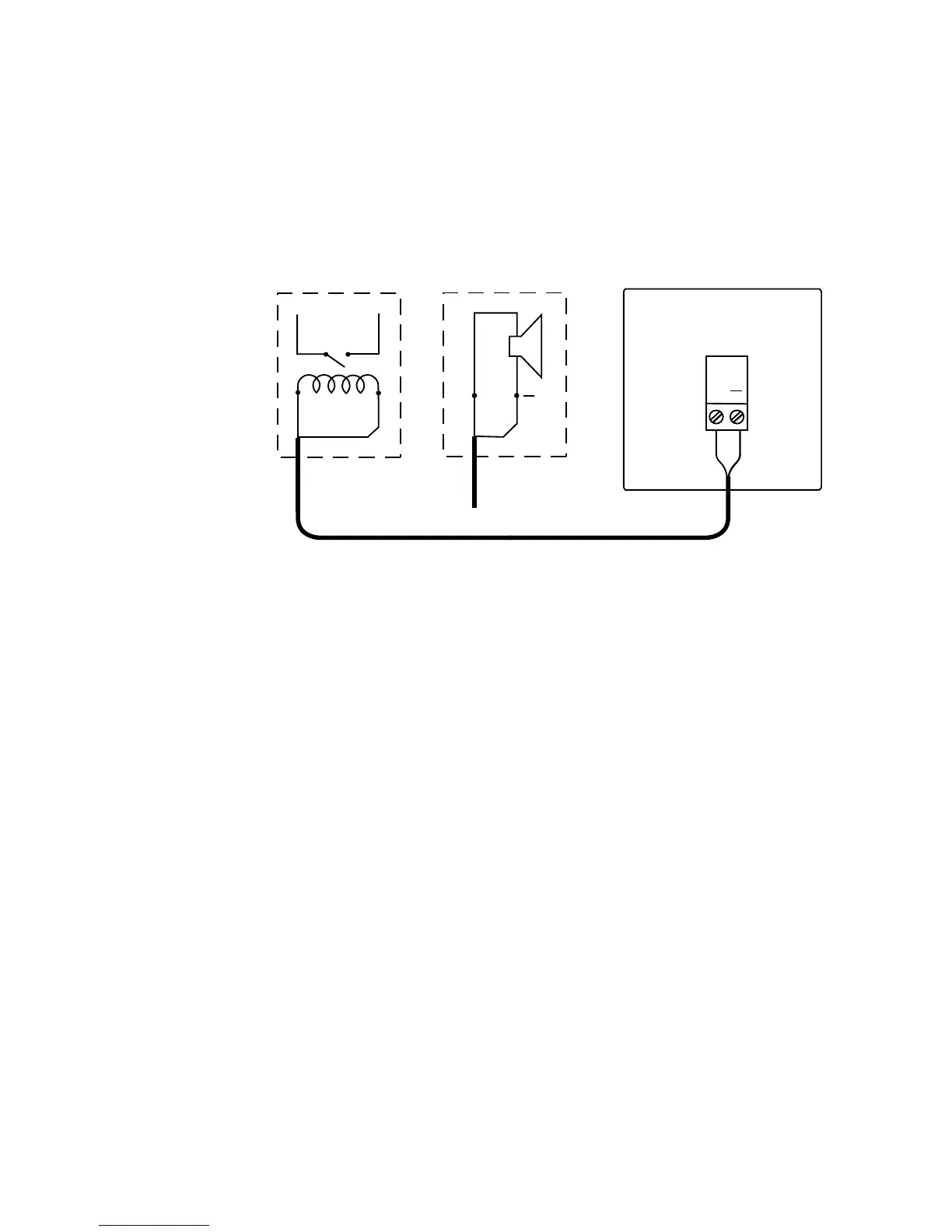

Figure 2-23 External alarm connection

Simrad AP28 Specifications

General

Brand	Simrad
Model	AP28
Category	Autopilot System
Language	English
