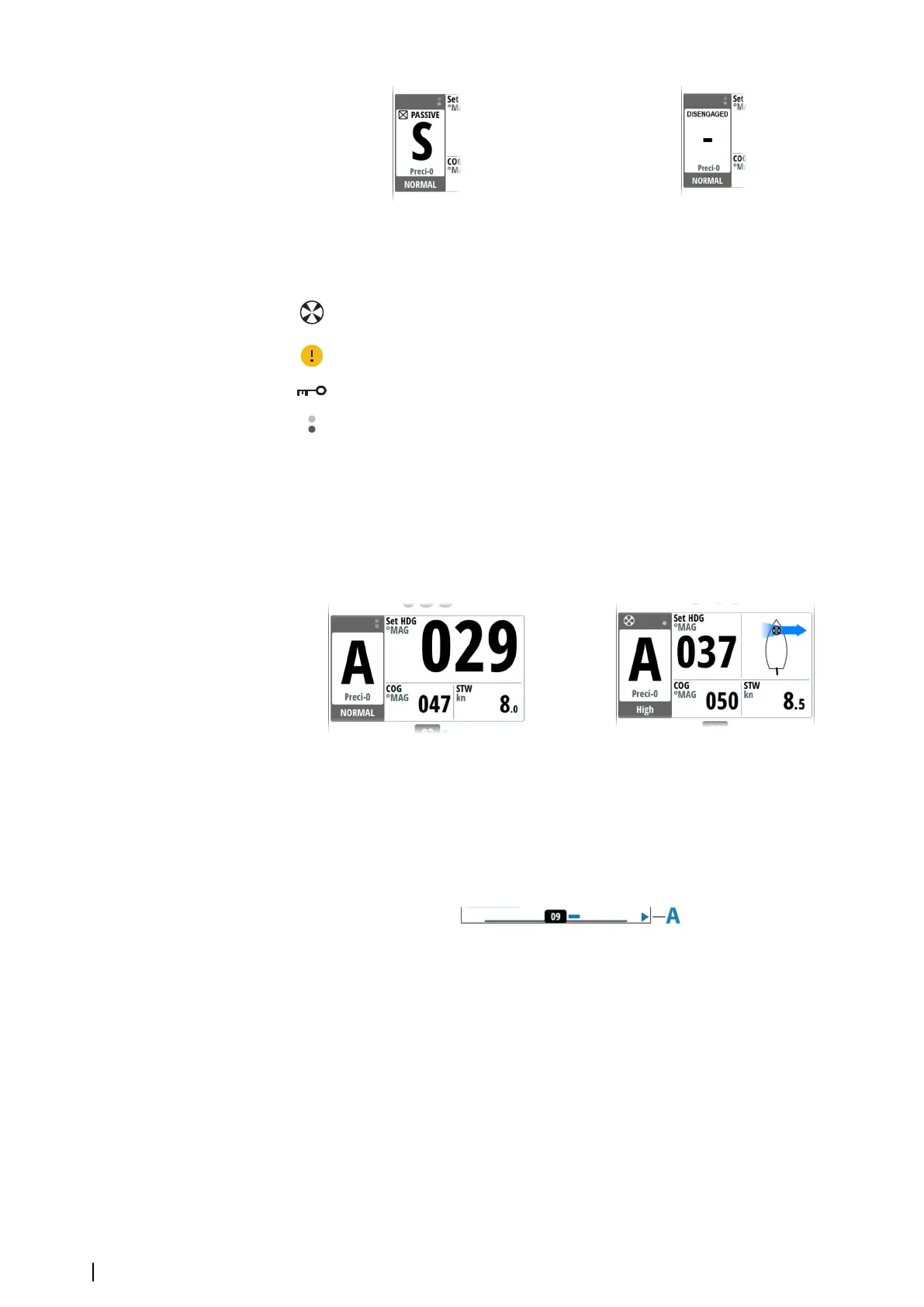

Passive control unit
Autopilot disengaged by external system
selector
Available status icons are shown below. Only active icons are visible.
Icon available if a thruster is installed. The icon will be shaded when the truster is
deactivated for steering
Active alert. Red icon for alarms, yellow for warning. See more details in "The alert
system" on page 36.
Locked control unit
Picture freeze indicator. Two dots alternate slowly to show that the screen is alive
and that information from sensors is updated
Mode info panel
The panel contains mode specific content and varies with the operational mode. See "Autopilot
modes" on page 20 onwards for more details.
If a thruster is available and active, the mode info panel will be split to show thruster
information.
No thruster available
Thruster in use
Ú
Note: If sensor input is missing, the numbers will be replaced with hyphens.
Rudder bar
Rudder position indicator with digital and analog readout. Direction indicator (A) is shown
when rudder movement is commanded and rudder feedback is available.
10
Introduction | AP70 MK2 Operator Manual
