Introduction

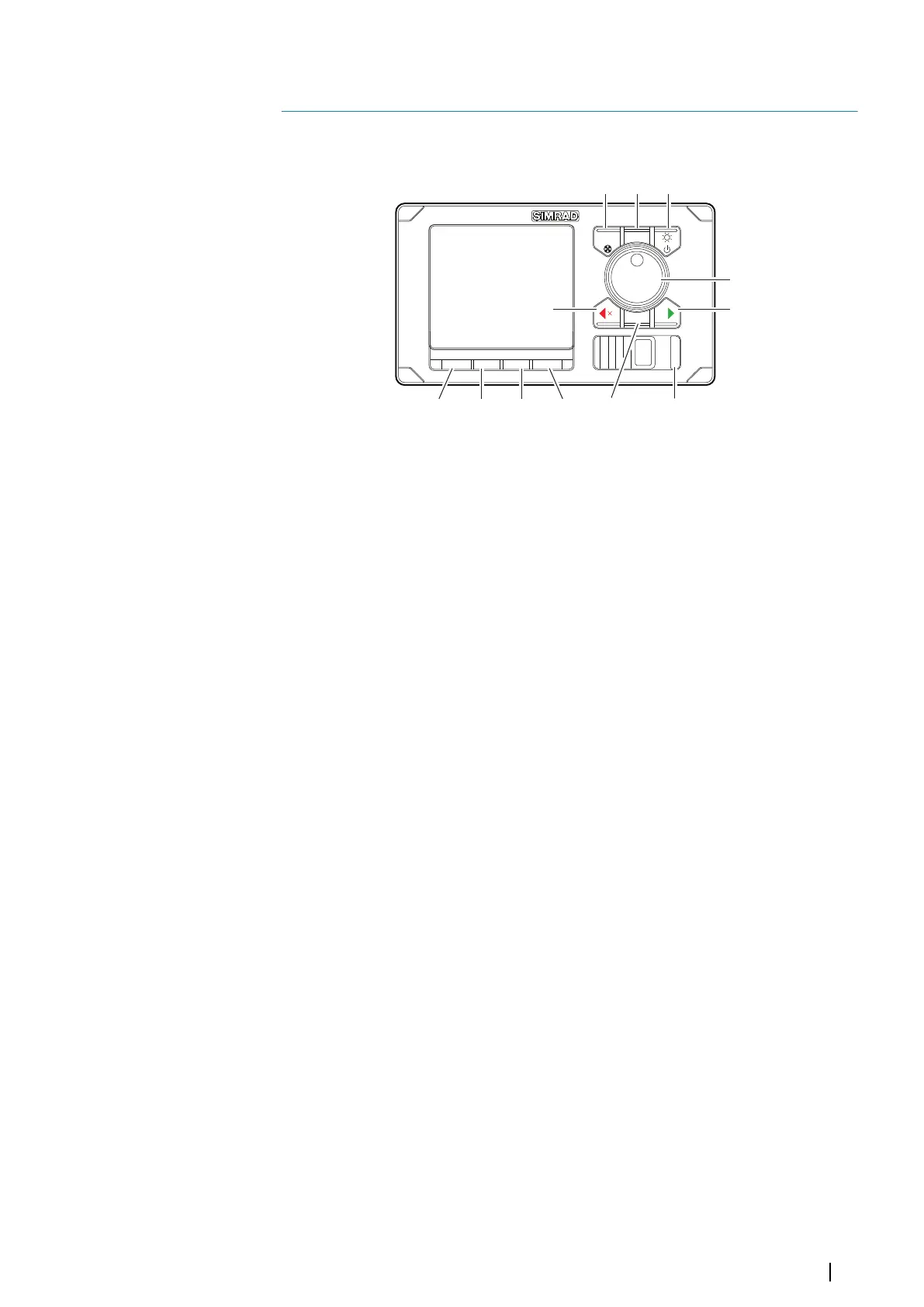

Front panel keys
P
TURN
MENU CMD
STBY AUTO TRACK WORK
ALARM
H I J
A B C
L
K
D
G
EF
A Command/Thruster key
• Press to take/request command
• Press and hold to activate/deactivate available thrusters
B Menu key
• Press once to display the Quick menu
• Press twice to show the Settings menu
C Power/Brilliance key
• Press to display the Display setup dialog
• Press and hold to turn the unit to sleep mode
D Rotary knob
Menu and dialog operation:
• Turn to move up and down in menus and dialogs
• Turn to adjust a value
• Press to select a menu option and to enter the next menu level
In Standby and NFU mode:
• Press and hold to activate Follow up (FU) mode
In FU mode:
• Turn to set the rudder angle
In automatic modes:
• Turn to change the set heading/set course, press to re-activate automatic
mode with current heading/course as reference
E Starboard (confirm) key
Menu and dialog operation
• press to confirm/enter next menu level
In Standby mode:
• press to activate NFU mode
In automatic modes:
• press to change set heading/set course to starboard
