Simrad AP70 MK2 User Manual

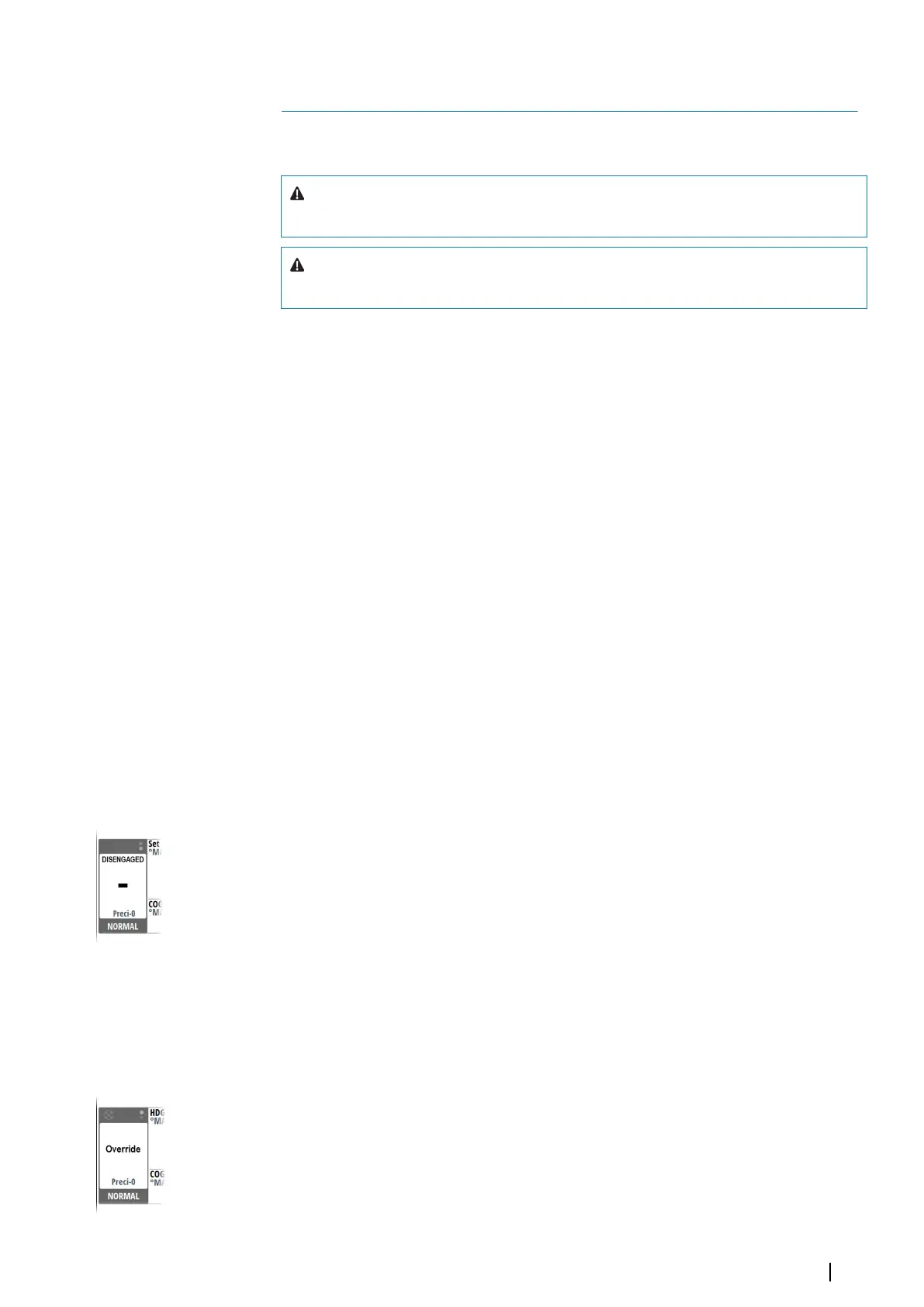

Basic operation
Safe operation with the autopilot
Warning: An autopilot is a useful navigational aid, but DOES NOT replace
a human navigator.
Warning: Ensure the autopilot has been installed correctly, commissioned
and calibrated before use.
Do not use automatic steering when:
• In heavy traffic areas or in narrow waters
• In poor visibility or extreme sea conditions
• When in areas where use of an autopilot is prohibited by law
When using an autopilot:
• Do not leave the helm unattended
• Do not place any magnetic material or equipment near the heading sensor used by the
autopilot system
• Verify at regular intervals the course and position of the vessel
• Always switch the autopilot to standby and reduce speed in due time to avoid hazardous
situations
Autopilot alerts
For safety reasons it is recommended to turn on all autopilot alerts when operating the
autopilot.
For more information, refer to "The alert system" on page 36.
External system selector
IMO resolution MSC.64(67) and other regulations require that an external switch is used for
controlling change-over from manual to automatic steering.
The mode descriptions in this manual assumes that an external system selector has opened
for autopilot operation, or that no external selector is installed.
Manual steering
When an external system selector is set to manual steering, the autopilot will be disengaged.
The control unit will display information as in Standby mode. It is not possible to change to
FU, NFU or to any automatic mode. The menus can however be used, alerts acknowledged
and illumination adjusted.
When the autopilot is disengaged by an external switch, this will be indicated in the mode
display.
Autopilot operation
When the external selector is set to automatic steering, the autopilot will go directly to AUTO
heading mode with present heading as set reference. The autopilot can then be used in all
operational modes.
External EVC override (SG05 PRO)
You may at any time, irrespective of the autopilot mode, take manual control of the steering
by means of the helm. The autopilot will then go to Standby mode and display Override to
indicate the steering is from the helm. Autosteering can be resumed by pressing the AUTO
or the WORK key.
2
Basic operation | AP70 MK2 Operator Manual
11
