Simrad AP70 Installation Manual

| 13
Introduction | AP70/AP80 Installation Manual

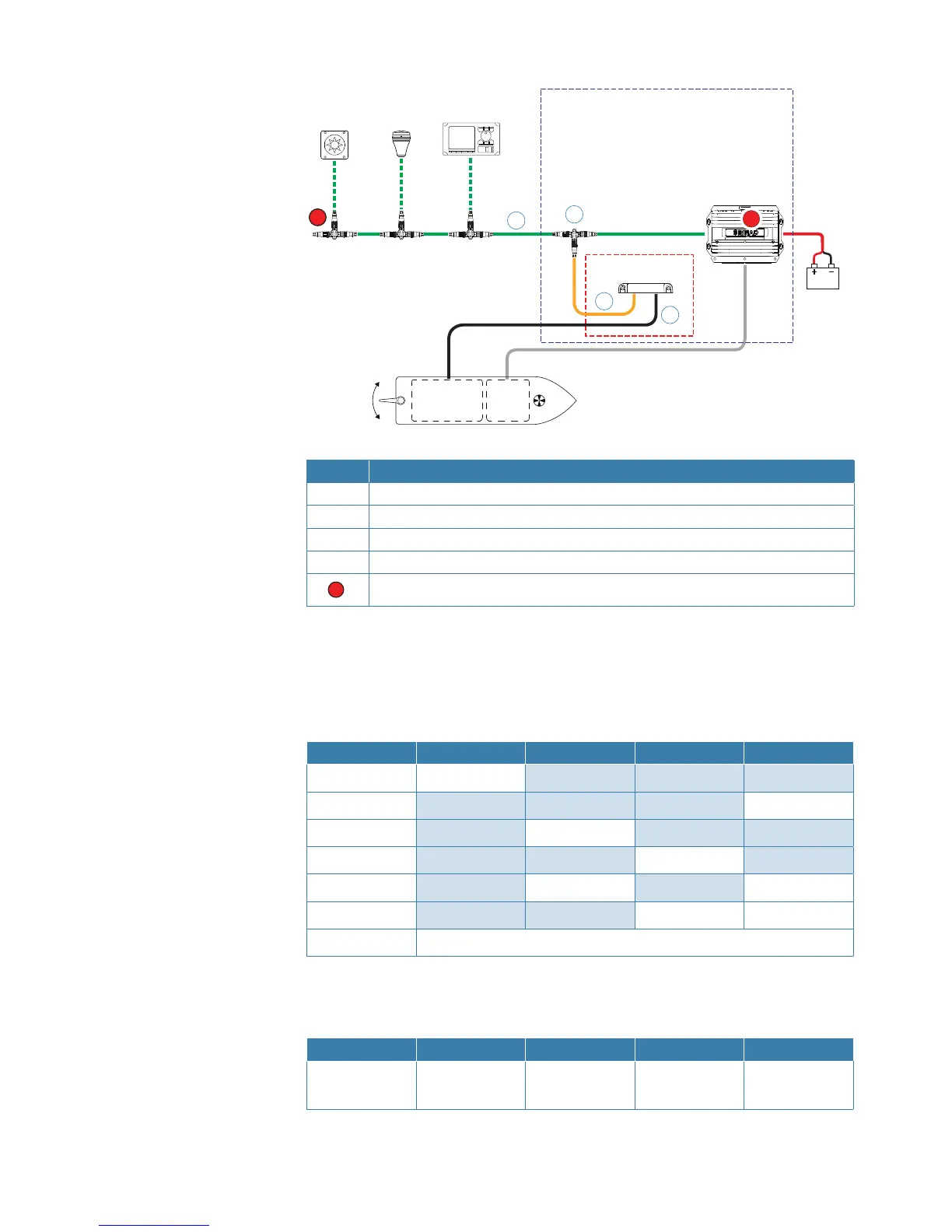

T
Compass
GPS
Sensor
AC80S / AC80A
1
12/24 V DC
T
Autopilot
Control unit
2
4
3
SG05 PRO
(000-11479-001)
SG05 PRO AC80A Kit
(
000-11483-001)
and
SG05 PRO AC80S Kit
(
000-11484-001)
CAN BUS
compatible
steering system
Thruster
control
Item Description
1 Micro-C backbone
2 Micro-C T-joiners
3 SimNet to Mircor-C (male) Drop cable
4 SD05 Cable, female
T
Terminators
¼ Notes:
- For IMO approval, the system must contain AC80S or AC80A Computer.
- A separate Installation Guide if delivered with the SG05 unit.
Standard computers
The standardized computers have the following built-in boards:
Computer AC70 board AD80 board SD80 board SI80 board
AC70 x
SI80 x
AD80 x
SD80 x
AC80A x x
AC80S x x
SG05 PRO For CAN bus compatible steering system
Customized computer
The AC85 computer is supplied with 1 SI80 board, and have space for up to 3 additional
boards:
Computer AC70 board AD80 board SD80 board SI80 board
AC85 Optional Optional Optional
x
1 Optional

Simrad AP70 Specifications

General

Type	Autopilot Control Unit
Power Supply	12/24 V DC
Operating Temperature	-15°C to +55°C
Waterproof Rating	IPx6
Interface	NMEA 0183, NMEA 2000
Operating Voltage	12/24 V DC
Water Resistance	IPx6
Display	LCD
Control Modes	Auto, Nav, Wind
Storage Temperature	-25°C to +70°C
