28 |
Wiring | AP70/AP80 Installation Manual

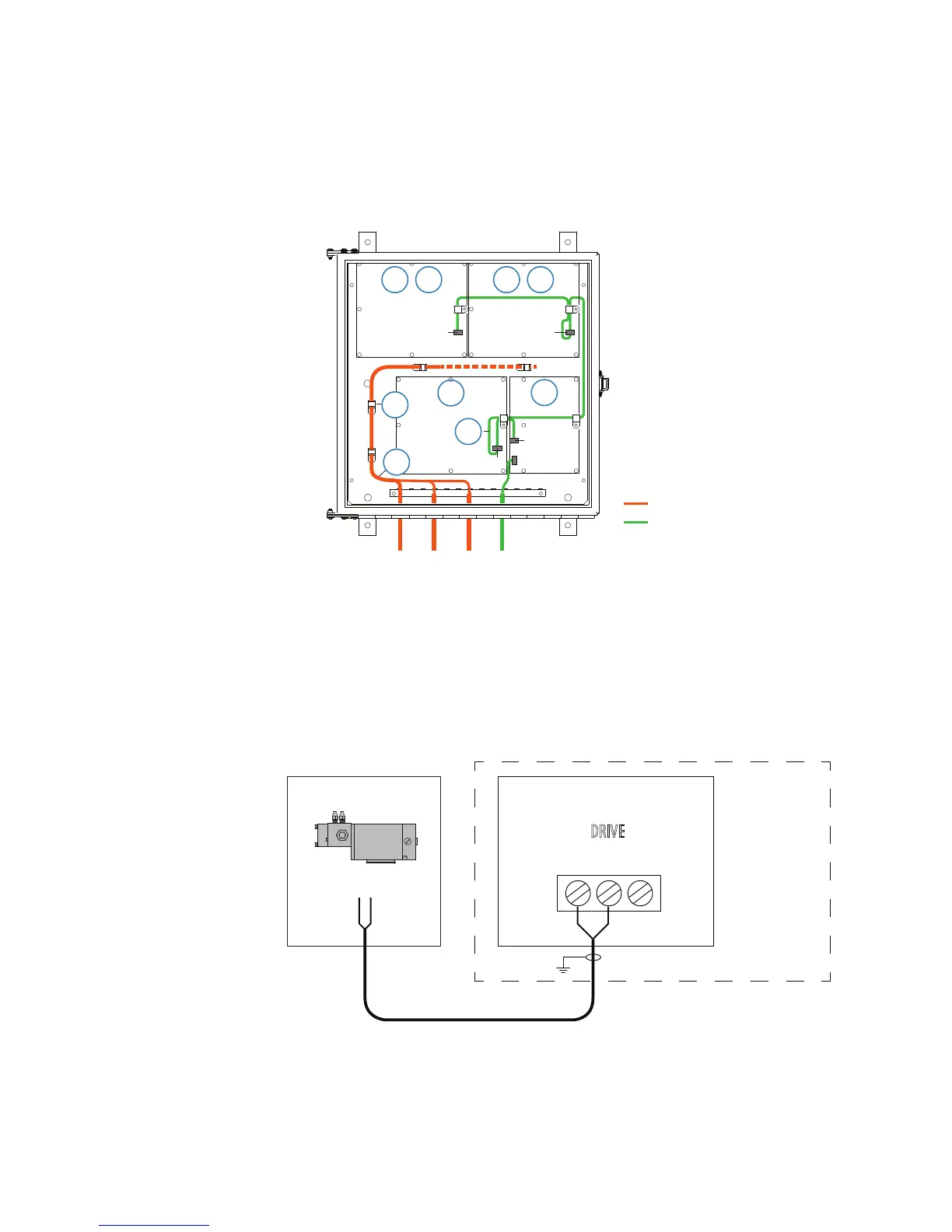

Mounting and Interconnecting the boards in the AC85 Computer
The AC85 computer is delivered with one SI80 board. The SI80 board is not mounted from
factory. Optional boards are ordered separately.
The boards should be located as shown on the illustration, and secured to the computer base
with the supplied screws and washers.
A detailed mounting description is included with the AC85 computer. The document can also
be downloaded from out web site.
SI80 board
xx80 board
AC70 board
CAN bus cable
External cables
Cable ties
External cables (orange)
CAN bus (green)
A
B
C
D
E
F
A
D
D1
D2
D4 D3
B
B
E
F
C
B
C
Drive units
Connecting diagrams for the different drive units are found on the following pages.
Installation instructions for the drive units are found in the manuals for the individual units.
Reversible pump
Connects to: AC70 board (in AC70 or AC85 Computer).
MOTOR
SOL-1
MOTOR
SOL-2
SOL GND
DRIVE
AC70 BOARD
AC70 or AC85
Computer
REVERSIBLE PUMP
MOTOR
To Next Page
