Simrad AP70 Installation Manual

| 35
Wiring | AP70/AP80 Installation Manual

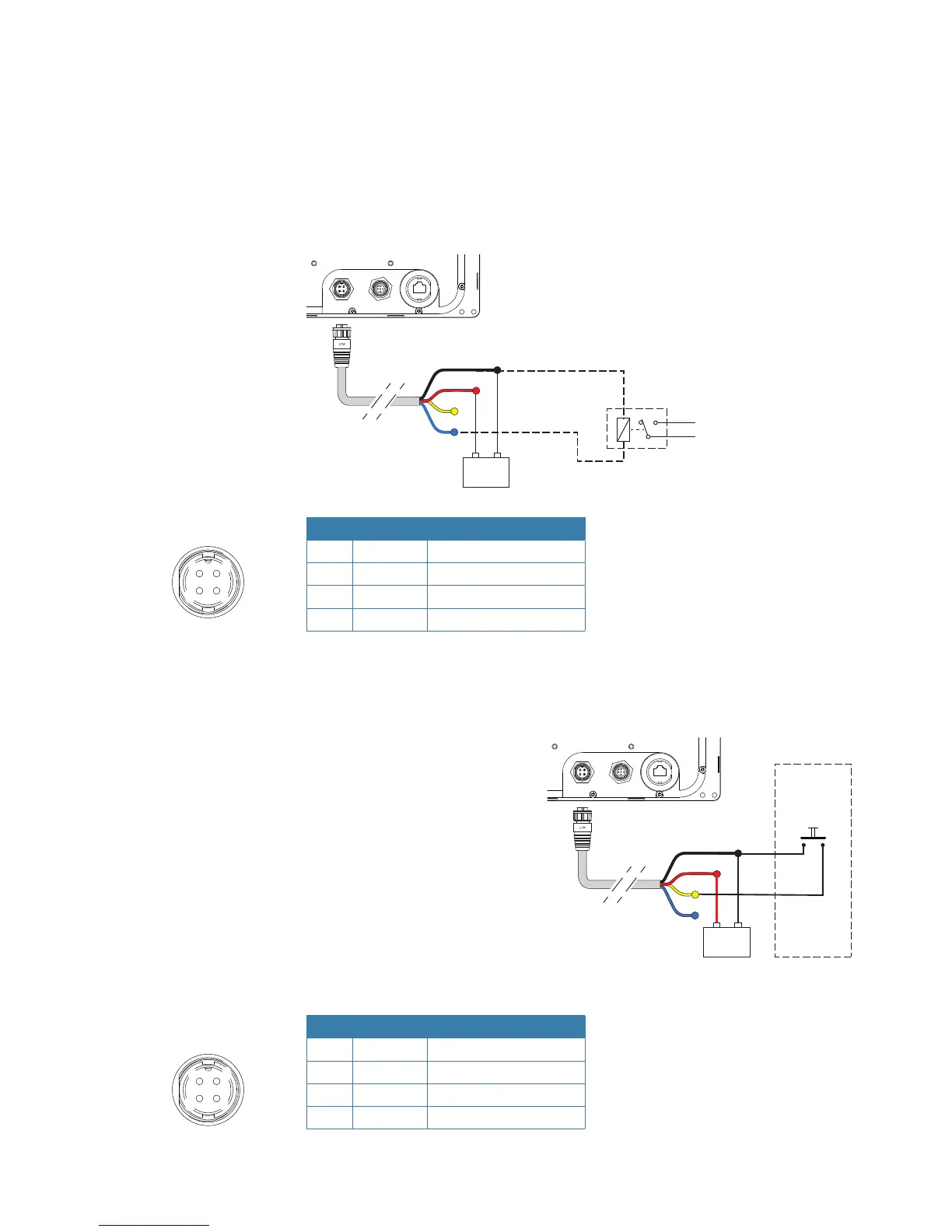

Alarm interface
External alarm
An external alarm can be connected to the autopilot control head. The alarm signal have an
open contact for an alarm buzzer or an external alarm relay as illustrated below. The alarm
voltage is the same as the main supply voltage. The maximum load on the external alarm
output is 0.75 Amp.
Alarms are configured globally in the system, i.e. they can be configured on one unit and
seen, heard and acknowledged from all control units.
ALARM
RELAY
12 - 24 V DC
+
_
1
4
3
2
Key Color Description
1 Black Battery (-)
2 Blue Alarm/Active
3 Yellow External command
4 Red Battery (+), 12 - 24 V DC
External alarm setup
The siren must be enabled in order for the unit to drive the external alarm when an alarm
condition arises.
Refer the alarm description in the separate AP70/AP80 Operator manual.
External Take command
An external take command signal
can be used to take command on a
control unit.
The function is identical to a short
press on the CMD key on the AP70
and AP80 control unit.
In an open system (no command
transfer restrictions) you will get
immediate control from the control
unit requesting command.
In a multi-station system with active
lock function, the command request must be confirmed on the active control unit.
Key Color Description
1 Black Battery (-)
2 Blue Alarm/Active
3 Yellow External command
4 Red Battery (+), 12 - 24 V DC
4
1 8
3
2
1
PART OF
STATION
SELECTOR
12 - 24 V DC
+
_
1
4
3
2
4
1 8
3
2
1

Simrad AP70 Specifications

General

Type	Autopilot Control Unit
Power Supply	12/24 V DC
Operating Temperature	-15°C to +55°C
Waterproof Rating	IPx6
Interface	NMEA 0183, NMEA 2000
Operating Voltage	12/24 V DC
Water Resistance	IPx6
Display	LCD
Control Modes	Auto, Nav, Wind
Storage Temperature	-25°C to +70°C
