Simrad AP70 Installation Manual

34 |
Wiring | AP70/AP80 Installation Manual

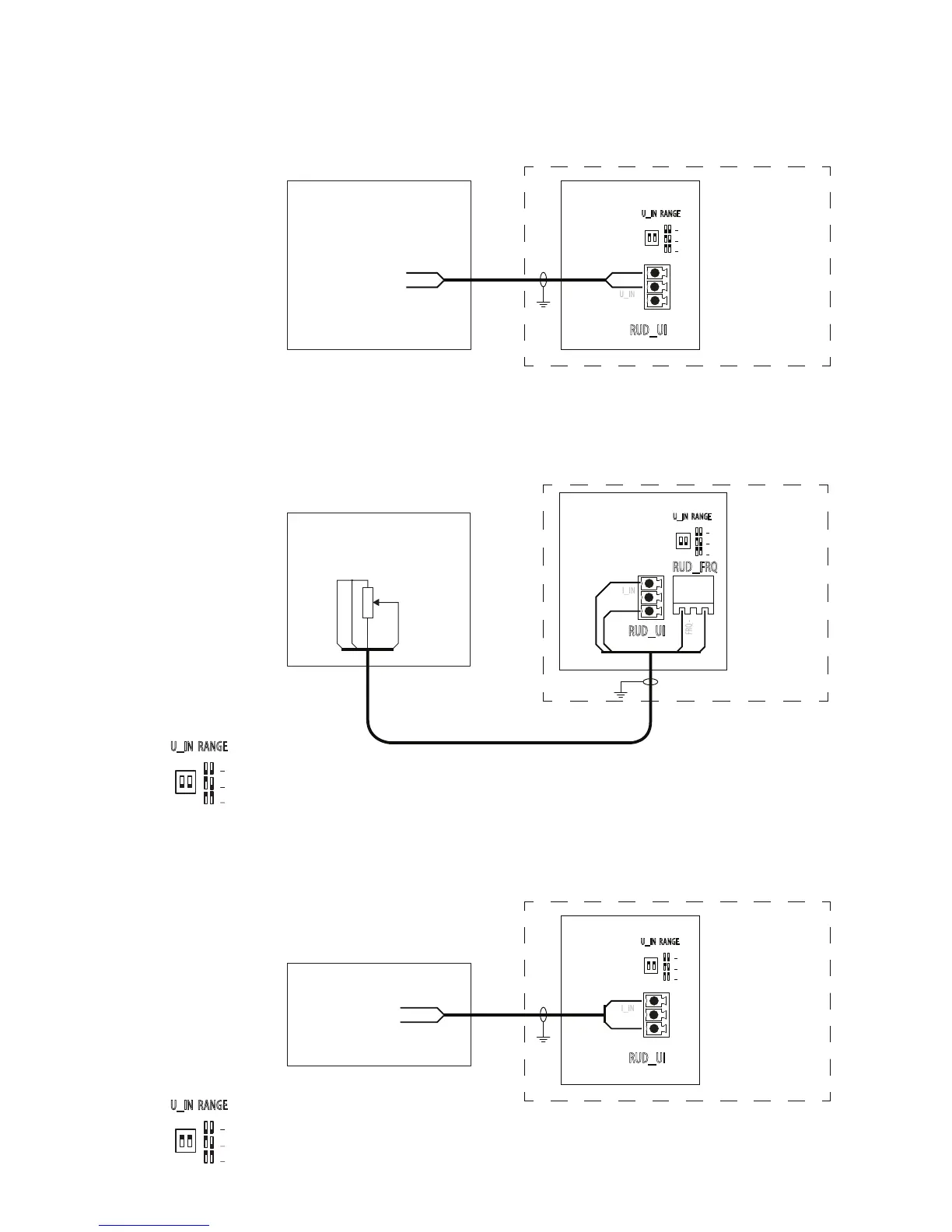

Current feedback input
Connects to: SD80 board (in SD80, AC80S or AC85 Computer) or AD80 board (in AD80,
AC80S or AC85 Computer).
COM
I_IN
U_IN
RUD_UI
U_IN RANGE
+20V
+10V
+5V
AD80/SD80,
AC80S or AC85
Computer
AD80/SD80 BOARDCURRENT FEEDBACK INPUT
COM
4 - 20 mA
I_IN
External feedback pot.meter input
Connects to: SD80 board (in SD80, AC80S or AC85 Computer) or AD80 board (in AD80,
AC80S or AC85 Computer).
AD80/SD80,
AC80S or AC85
Computer
AD80/SD80 BOARD
EXTERNAL FEEDBACK
POT.METER INPUT
(1-10 K)
FRQ +
FRQ -
RET
RUD_FRQ
RUD_UI
COM
I_IN
U_IN
FRQ + RET COM U_IN
U_IN RANGE
+20V
+10V
+5V
The DIP switch must be set to +/- 20 V.
External voltage feedback input
Connects to: SD80 board (in SD80, AC80S or AC85 Computer) or AD80 board (in AD80,
AC80S or AC85 Computer).
COM
I_IN
U_IN
RUD_UI
U_IN RANGE
+20V
+10V
+5V
External
feedback
signal
AD80/SD80,
AC80S or AC85
Computer
AD80/SD80 BOARD
EXTERNAL VOLTAGE INPUT
COM
U_IN
The DIP switch must be set to match range for analog voltage input signal.
U_IN RANGE
+20V
+10V
+5V
U_IN RANGE
+20V
+10V
+5V

Simrad AP70 Specifications

General

Type	Autopilot Control Unit
Power Supply	12/24 V DC
Operating Temperature	-15°C to +55°C
Waterproof Rating	IPx6
Interface	NMEA 0183, NMEA 2000
Operating Voltage	12/24 V DC
Water Resistance	IPx6
Display	LCD
Control Modes	Auto, Nav, Wind
Storage Temperature	-25°C to +70°C
