Simrad AP70 Installation Manual

80 |

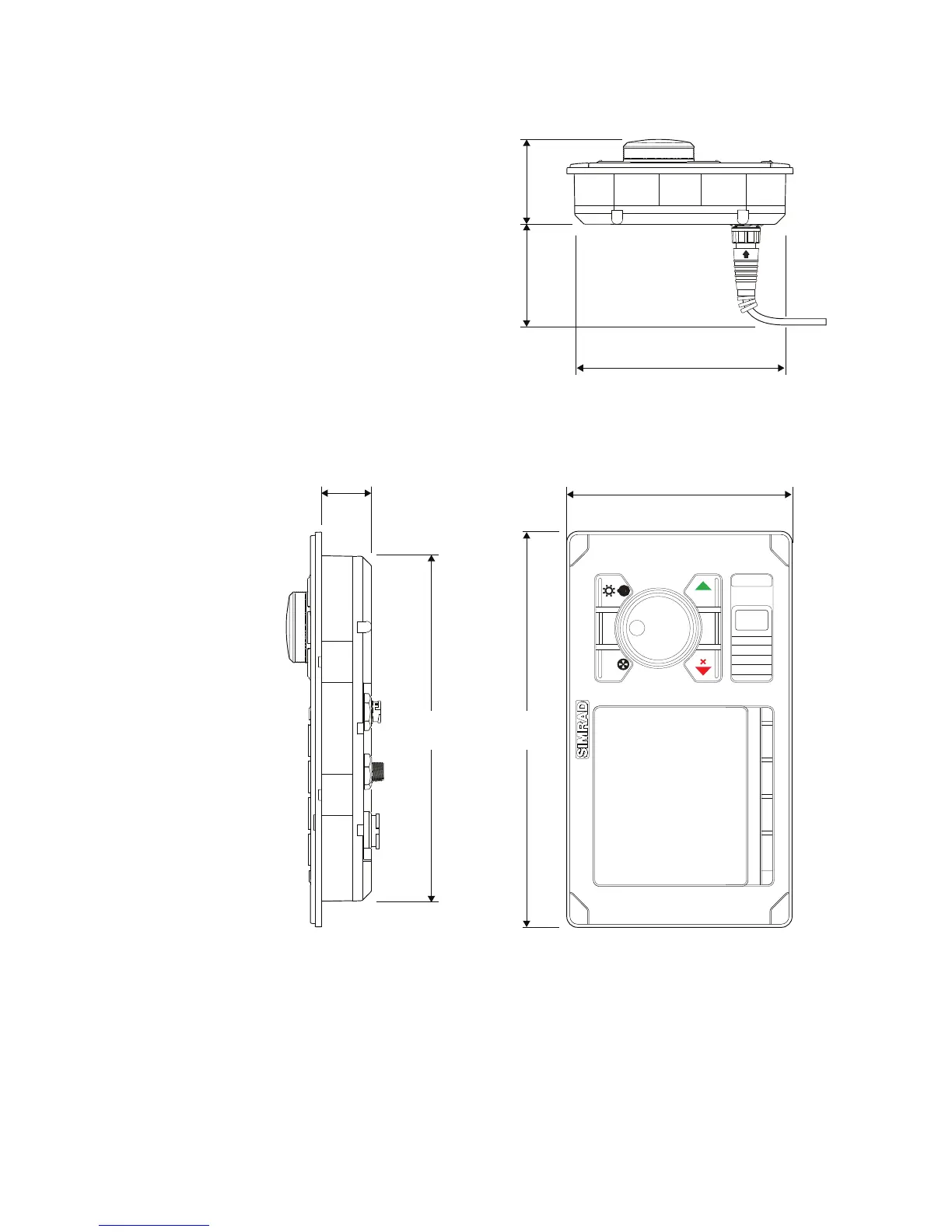

Drawings | AP70/AP80 Installation manual
AP80 Control unit

TURN
MENUCMD
STBY AUTO NAV WORK
ALARM
54 mm
(2.13”)
252 mm
(9.92”)
144 mm (5.67”)
135 mm (5.31”)
220 mm
(8.66”)
32 mm
(1.26”)
Min
65 mm
(2.56”)

Simrad AP70 Specifications

General

Type	Autopilot Control Unit
Power Supply	12/24 V DC
Operating Temperature	-15°C to +55°C
Waterproof Rating	IPx6
Interface	NMEA 0183, NMEA 2000
Operating Voltage	12/24 V DC
Water Resistance	IPx6
Display	LCD
Control Modes	Auto, Nav, Wind
Storage Temperature	-25°C to +70°C
