Simrad AP70 Installation Manual

| 29
Wiring | AP70/AP80 Installation Manual

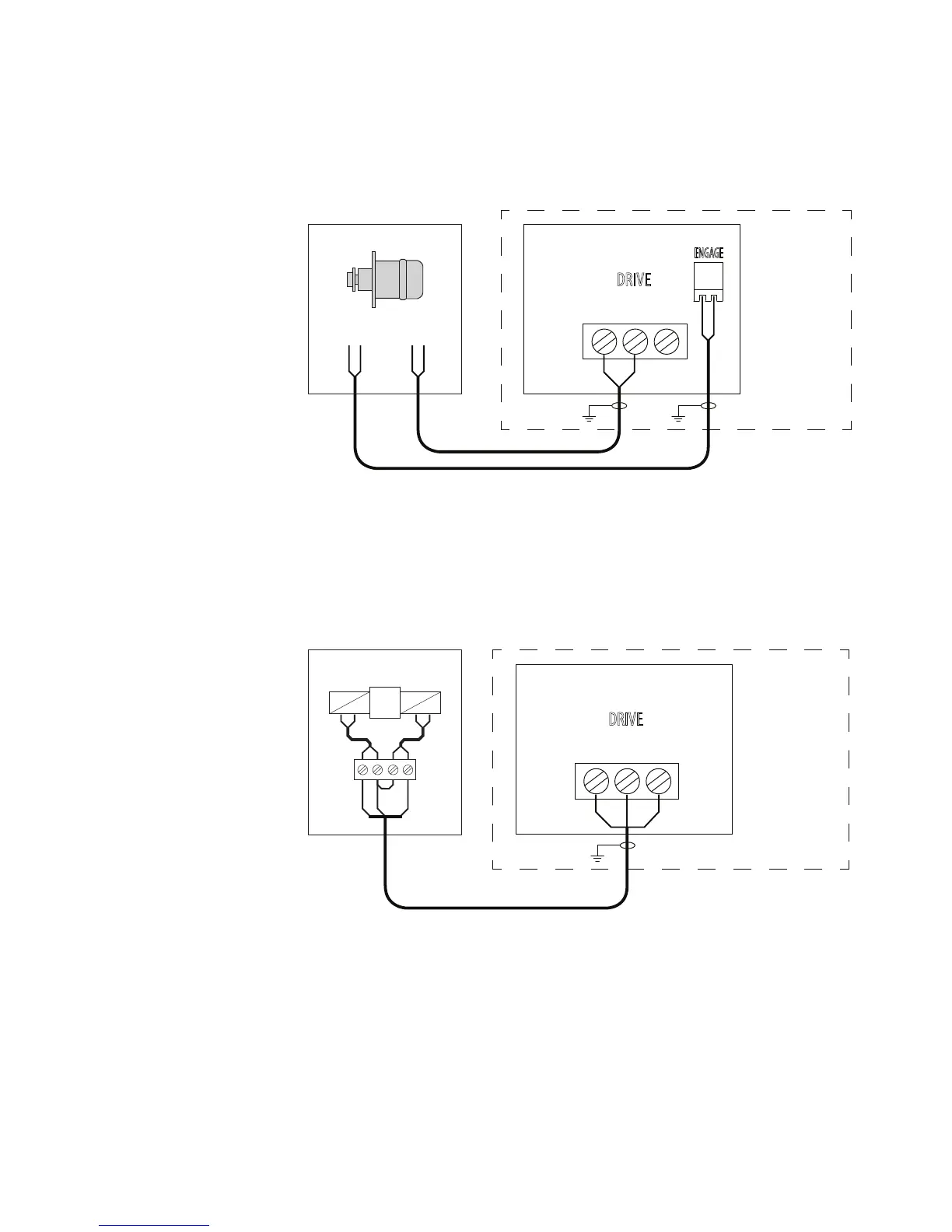

Rotary drive
Connects to: AC70 board (in AC70 or AC85 Computer).
Rotary drive (reversible motor with clutch) is normally used for mechanical connection to
Voith Schneider drive system or helm unit on sailing vessels.
The rotary drive need connection to the Engage terminal for clutch operation.
MOTOR
SOL-1
MOTOR
SOL-2 SOL GND
DRIVE
ENGAGE
CMD
RET
AC70 BOARD
ROTARY DRIVE
AC70 or AC85
Computer
CLUTCH
MOTOR
Solenoid valves, 12 V or 24 V DC
The following figures described operation of 12 V or 24 V solenoids.
For solenoids with higher voltage (110/220 V AC or DC), use external relays/solid state relays.
Internally powered Solenoids
Connects to: AC70 board (in AC70 or AC85 Computer).
SOLENOID VALVE
MOTOR
SOL-1
MOTOR
SOL-2 SOL GND
DRIVE
AC70 BOARD
AC70 or AC85
Computer
SOL GND
SOL-1 SOL-1

Simrad AP70 Specifications

General

Type	Autopilot Control Unit
Power Supply	12/24 V DC
Operating Temperature	-15°C to +55°C
Waterproof Rating	IPx6
Interface	NMEA 0183, NMEA 2000
Operating Voltage	12/24 V DC
Water Resistance	IPx6
Display	LCD
Control Modes	Auto, Nav, Wind
Storage Temperature	-25°C to +70°C
