38 |
Wiring | AP70/AP80 Installation Manual
SD80 BOARD
SD80, AC80S
or AC85
Computer
CMD
RET
10 mA - 3 A
+
CMD
RET
ENGAGE
+
POWER
+
Ready signal

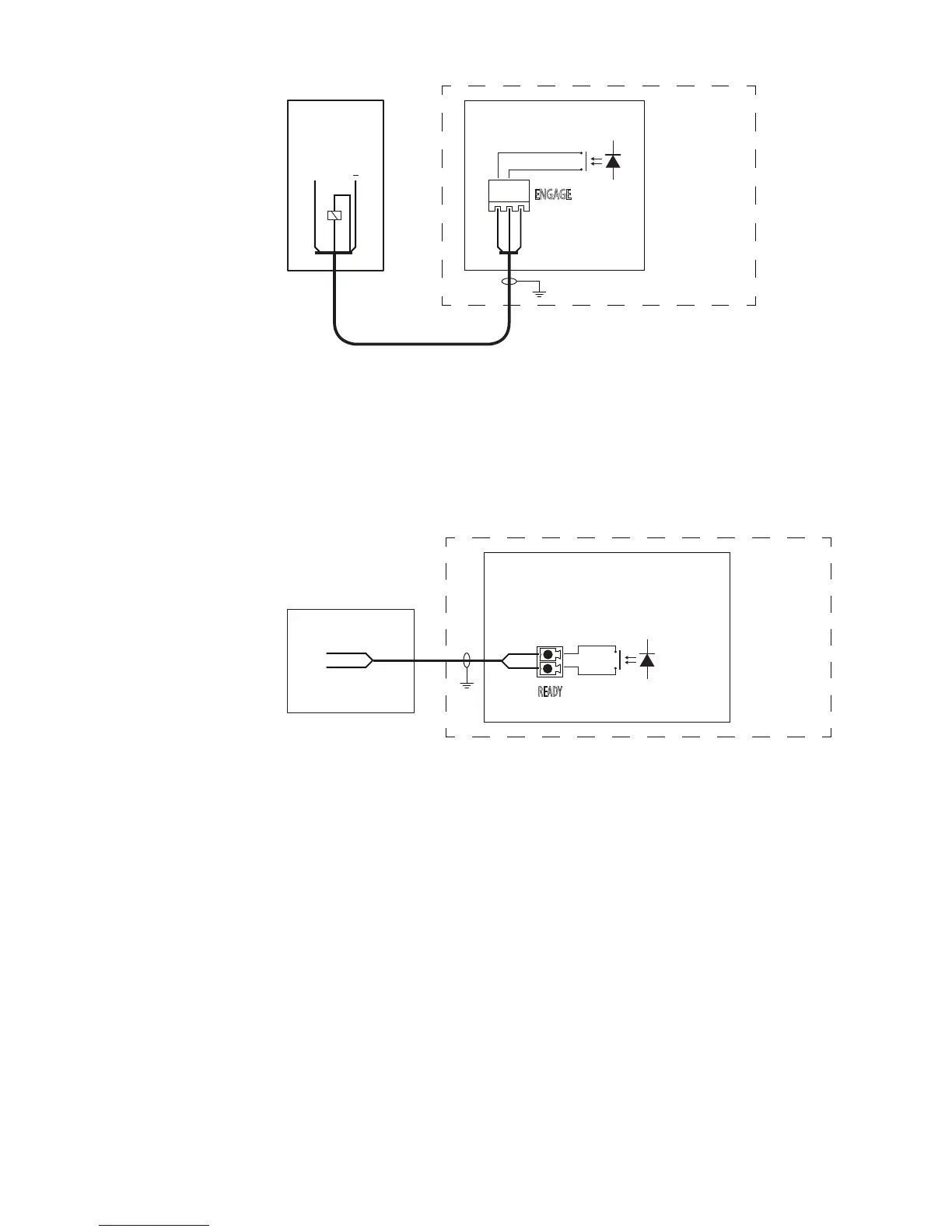

Connects to: SD80 board (in SD80, AC80S or AC85 Computer ) or AD80 board (in AD80,
AC80A or AC85 Computer).
The Ready signal is given when the autopilot system is operative for taking control. In case
of serious software or hardware failure and when the system is turned off, the signal line will
open. Some steering gears will use the signal to block rudder/thruster command in case of a
serious autopilot failure.
READY
OUT A
OUT B
Max
100 mA
AD80/SD80 BOARD
AD80/SD80,
AC80S or AC85
Computer
OUT A
OUT B

Simrad AP70 Specifications

General

Type	Autopilot Control Unit
Power Supply	12/24 V DC
Operating Temperature	-15°C to +55°C
Waterproof Rating	IPx6
Interface	NMEA 0183, NMEA 2000
Operating Voltage	12/24 V DC
Water Resistance	IPx6
Display	LCD
Control Modes	Auto, Nav, Wind
Storage Temperature	-25°C to +70°C
