| 5
Introduction | AP70/AP80 Operator Manual
Introduction

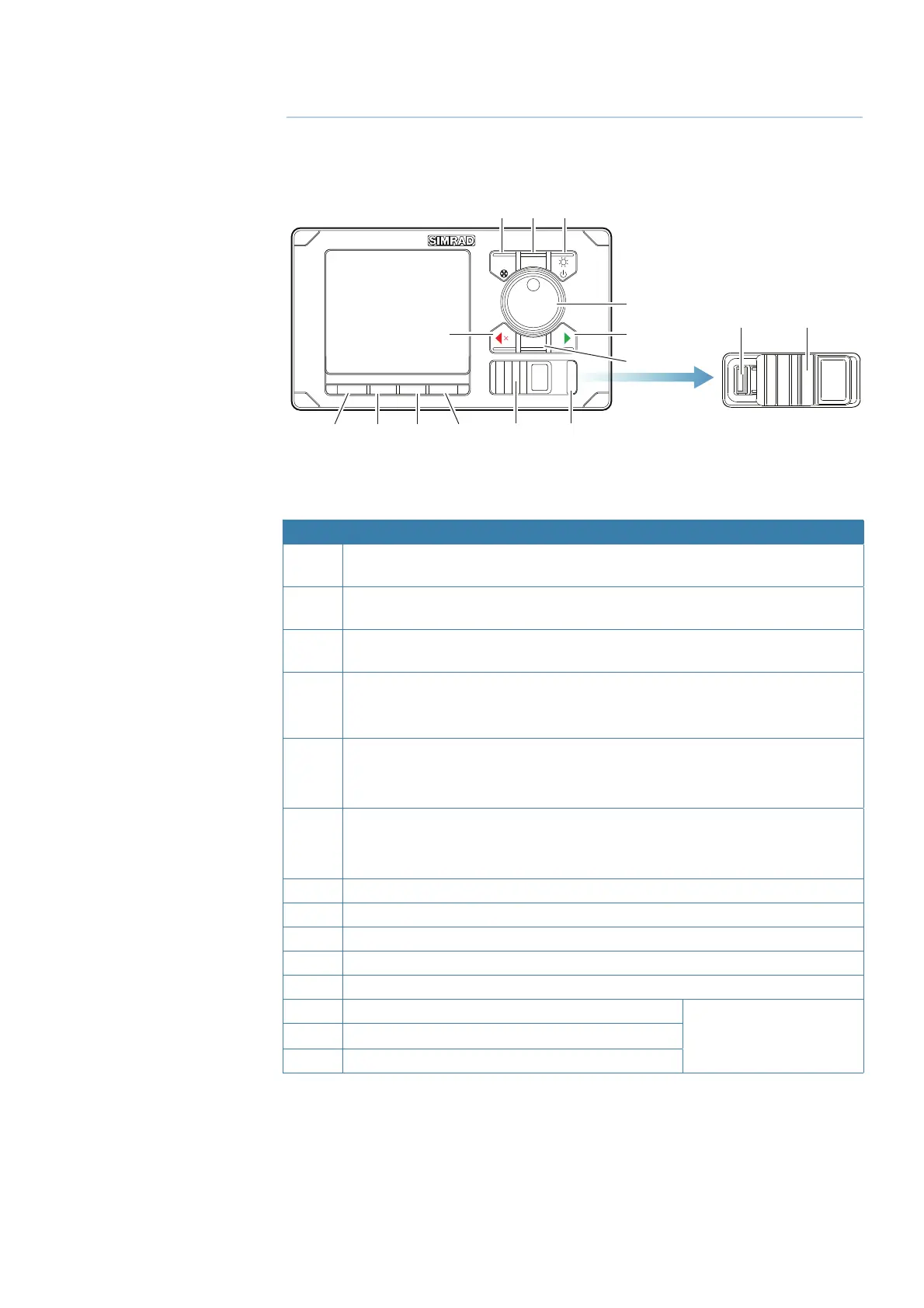

The front panel and keys
3
TURN
MENUCMD
STBY AUTO NAV WORK
ALARM
91011
123
12*
4
8
ALARM
14* 12*
13*
6
7
5
* Available on AP80 control units only.
No. Key/Description
1 CMD/THRUSTER. A short press takes/requests command. A long press (3
seconds) activates/deactivates available thrusters
2 MENU. A short press displays the active steering mode’s quick menu. A second
click displays the Settings menu
3 POWER/LIGHT. A short press displays the Light dialog. A long press (3 seconds)
turns the unit ON/OFF
4 ROTARY KNOB (Course wheel). Rotated for selecting menu item and adjusting
value, pressed to confi rm a selection/entry.
For mode specifi c operation, refer to “The operational modes” on page 17
5 PORT (Cancel). Exits menu/returns to previous menu level.
Activates NFU steering when in Standby mode.
Changes set heading, set course and track off set to port.
6 STBD (Confi rm). Confi rms menu selection/enters next menu level.
Activates NFU when in Standby mode.
Changes set heading, set course and track off set to starboard.
7 TURN. Displays the Turn dialog
8 STBY. Turns the autopilot to Standby mode
9 AUTO. Activates Auto and NoDrift mode
10 NAV (AP70) / TRACK (AP80). Activates Nav steering mode
11 WORK. Used for selecting work profi le
12 USB port door
AP80 control units only
13 ALARM. Displays the Alarm listing dialog
14 USB connector
1
