Simrad CE34 ChartSounder User Manual

◄
GOTO
Position Navigation
PLOT
►
+ 1: Simrad CE34-1 ,Sn:100003
+ 2: Simrad GN33-2 ,Sn:0070B0
+ 3: Airmar EQS ,Sn:000000
+ 4: Simrad RC35 ,Sn:000035
- : NMEA-PORT
MENU
Exit Accept
ENT
∆
∆
Nodes
Addi-
tional
data
No addi-
tional
data
Internal
serial
number
Automatically assigned
network address

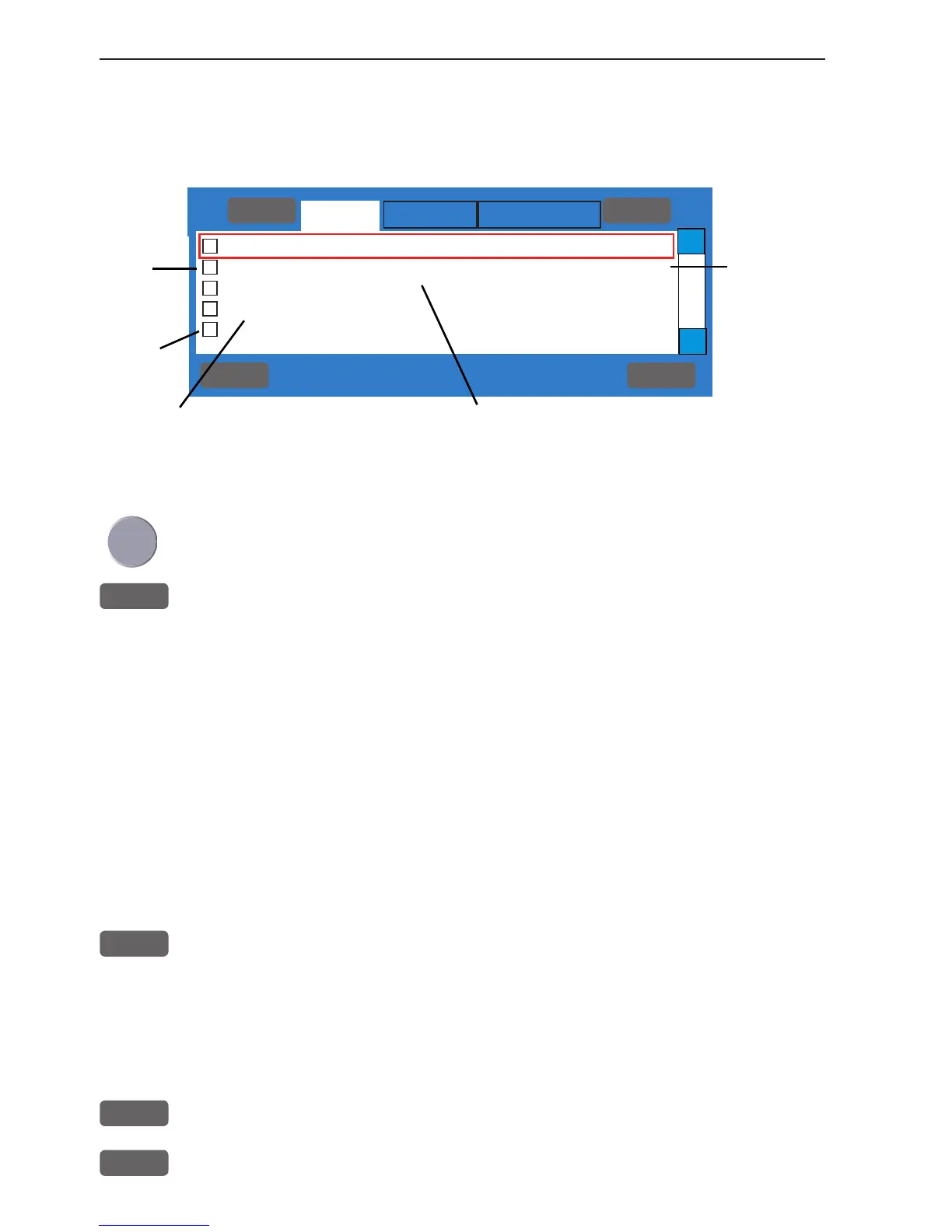

Product model numbers (top line is own unit); -1, -2, -3
etc. indicates multi sources. NMEA-PORT indicates
incoming data via the NMEA port.
Chapter 8-10 CE34/44/54 Setup menu
Searching interface channels for valid sources and data. Please wait
till the first page appears on the screen which will show the nodes
(products) operating on the SimNet bus. See below example:
Move the cursor up/down to select one of the listed products
+
Press the [+] key to access additional data
Example:
• CE34 CHART SOUNDER
• SimNet number=100003, Address: 1
• Device: class = 60, function = 170
• Instance: system = 0, device = 1
• SimNet:Compatible=YES,Ver= 1.000 E
• Ver.: NMEA2000 = 1.004, SW = 02.00
• Product code=FFFF,Unique no=138003
The name CHART SOUNDER can be user defined - see the Identifica-
tion interface (last tab).
-
Press the [-] key to hide additional data
General information: Go to the next interface by pressing [PLOT]
and step back to the previous interface by pressing [GOTO].
Use the cursor key to move around in the display and toggle between
available settings and sentences with the +/- keys.
ENT
Confirm editing, or...
MENU
exit function without making any changes
