Installation 1 - 4 CX34/44/54 NavStation

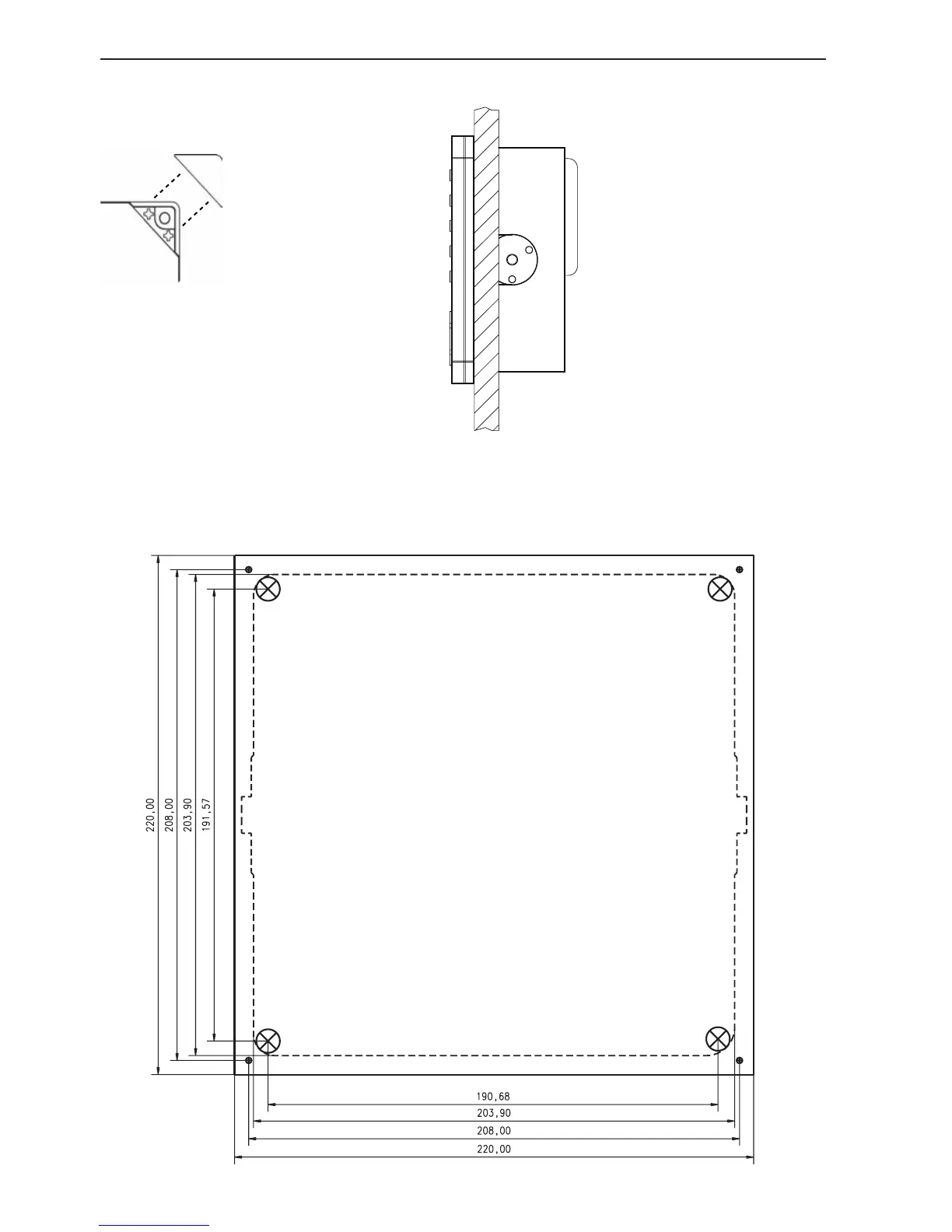

Flush mounting of CX34
Removable corner
for flush mounting. Minimum clearance
incl. cables: 15 cm.
Refer to included template for instructions on flush mounting.
(measurements in mm)
