Installation 1 - 24 CX34/44/54 NavStation
1.12.1 Transducers
Simrad Combi-transducers C50/200 or C38/200
For optimum performance of the CX44/54 echosounder function, the Simrad
combi transducers C38/200 and C50/200 are recommended. These transduc-
ers also include a water temperature sensor. A variety of alternative medium-
range transducers is available for vessels mainly operating in shallow waters
and/or where the size of the transducer is critical.

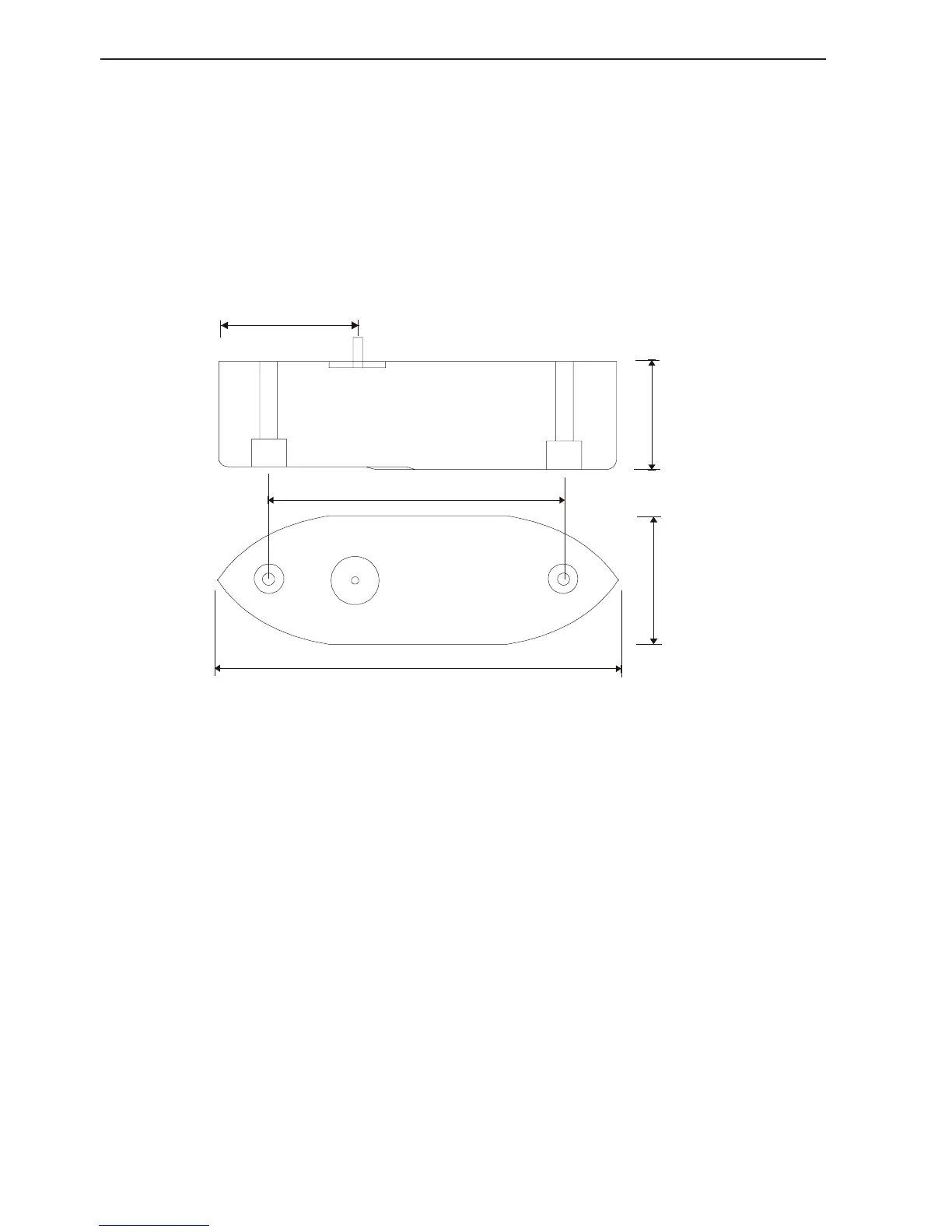

Combi C50/200 or C38/200 combines two transducers and a temperature
sensor in one housing. It has a streamlined shape, designed for mounting onto
the hull.
Frequency: 50 and 200 kHz 38 and 200 kHz
Beamwidth: longitudinal 10° / 7° longitudinal 13°/ 7°
transverse 16° / 7° transverse 21° / 7°
Maximum pulse
power input: 1000 W 1000 W
Maximum continuous
power input: 10 W 10 W
Storage temperature: max.70°C, min. –20°C max.70°C, min. –20°C
Cable length: 10 m (32’) 10 m (32’)
Maximum transducer
depth: 20 meter 20 meter
Reference No. Reference No.
700-3000 700-3001
