Simrad CX34-DE NavStation - Scanner Mounting Guidelines

CX34/44/54 NavStation Installation 1 - 25

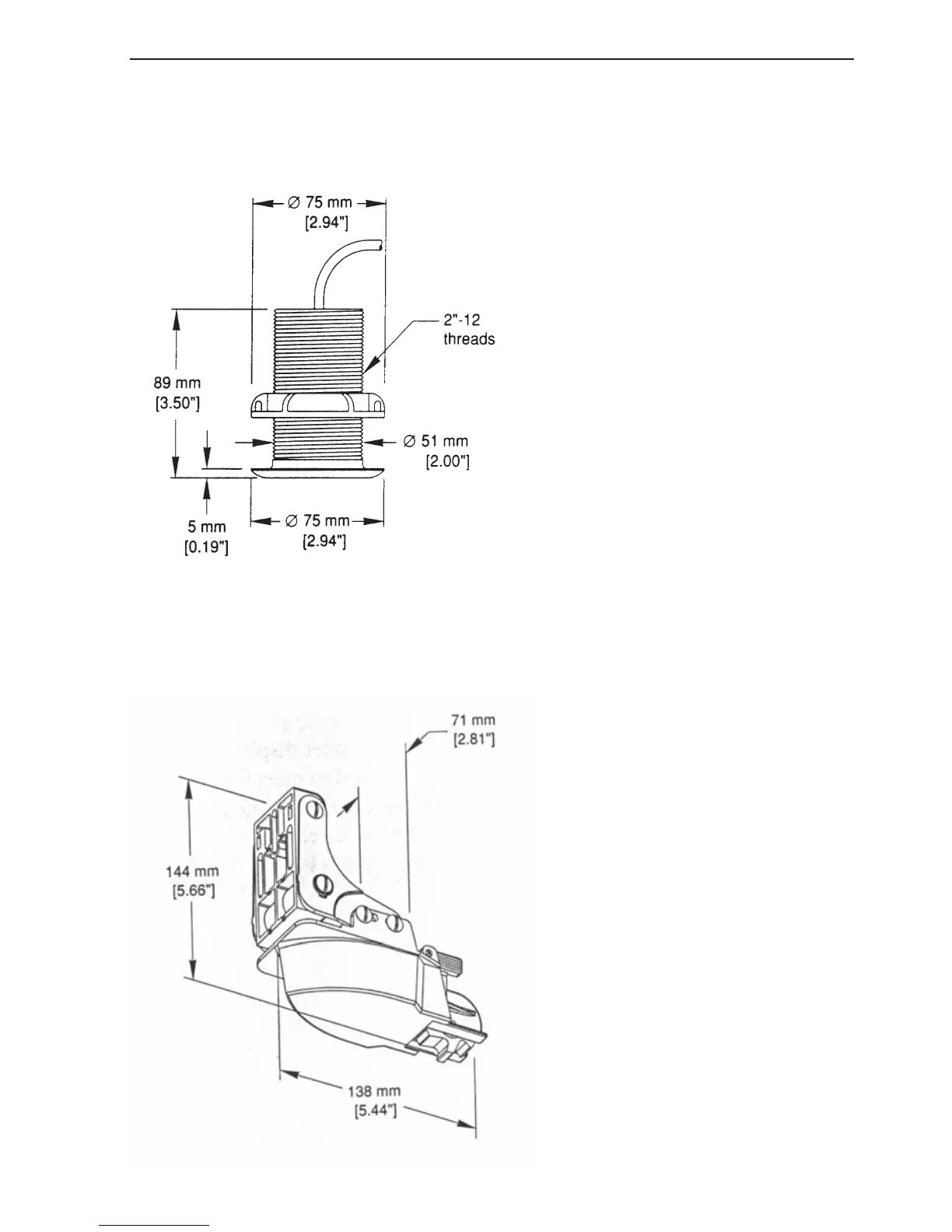

Airmar P319
Thru-hull mount
Frequency: 50/200 kHz
Beamwidth: 45° / 15°
Cable length: 10m (32’)
Depth information.
Reference no. 179-0401-002 (P319)
Housing: Reinforced plastic
Recommended for fiberglass and
metal hulls. Do not use in wooden
hulls!
Reference no. 179-0401-003 (B117)
Housing: Bronze
Recommended for fiberglass and
wooden hulls.
Airmar P66
Transom mount
Frequency: 50/200 kHz
Beamwidth: 45° / 15°
Cable length: 10m (32’)
Speed, temperature + depth infor-
mation
Reference no. 179-0401-001
Housing: Chemical resistant, high
impact plastic alloy.
Recommended for all type hulls.
) Do not connect to CX44/54’s
ECHO2 port.
