Simrad CX34-DE NavStation - 1.2 Installation of CX34; CX34 Mounting Options

33 (1.3”)
220 mm (8.7”)
242 mm (9.5”)
SIMRAD
212 mm (8.3”)
220 mm (8.7”)
246 mm (9.7”)
78 mm (3.1”)
112 mm (4.4”)
188 mm (7.4”)
CX34/44/54 NavStation Installation 1 - 3
1.2 Installation of CX34

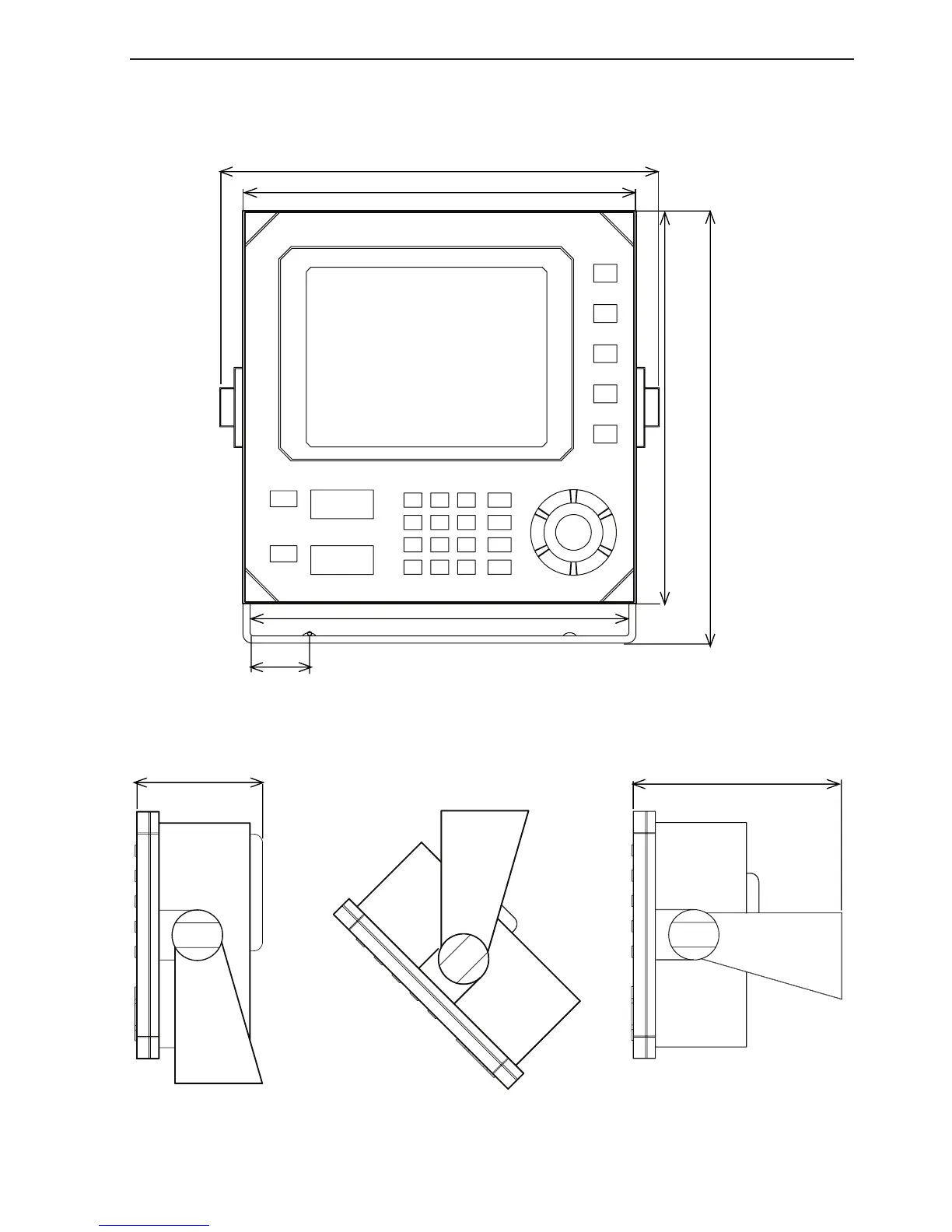

The unit can be flat or bracket mounted - overhead, bulkhead or console.
Bulkhead mounting.
Overhead mounting.
Console mounting.
