Installation 1 - 22 CX34/44/54 NavStation

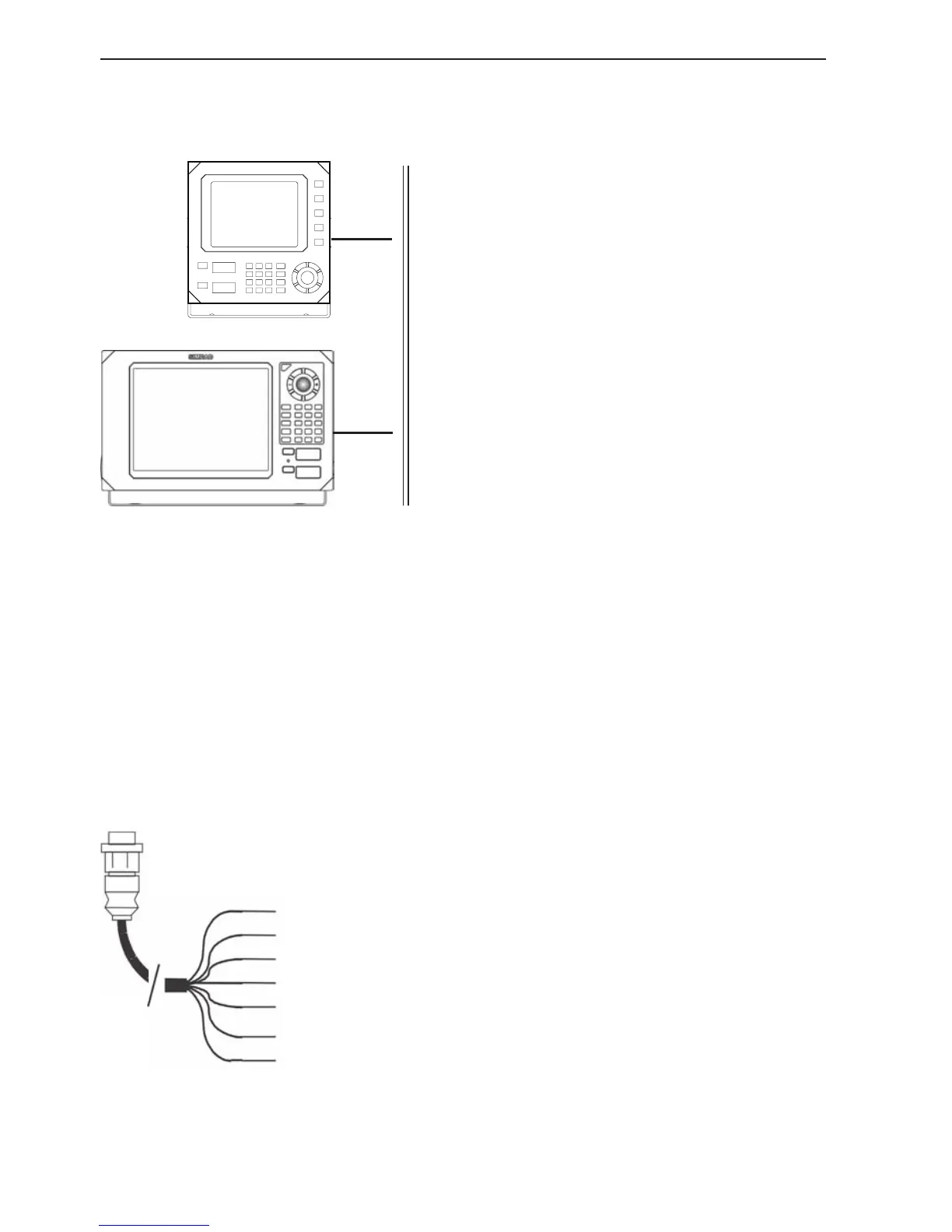

1.10 Optional connections
-Compass
-WR20 RemoteCommander
-Dual Station DS34/44/54-CX
-Performance Instruments
-Differential Beacon Receiver
-Water speed and temperature sensor
-Autopilot
-Yeoman digitizer
-PC - WPs & routes up/download
-Other equipment via SimNet, NMEA0183,
or NMEA2000.
1.11 Universal connection cable for echo transducers
(Optional)
The universal connection cable should be applied when connecting one or two
transducers to either ECHO1 or ECHO2 port on CX44/54, or single transducer
to the ECHO port on CX34. Transducers for CX44/54 are recommended to be
60 to 80 ohms and minimum 1kW.
Connection cable (153-3004-002) Cable type AMW STYLE 2464
Pin ECHO/1 ECHO2 ECHO2
50/200kHz 50&200kHz 38&200kHz
1 Red Speed log 50kHz+ 200kHz+
2
Black (brown)
VCC speed 50kHz- 200kHz-
3 Blue Depth 1+ 200kHz+ 38kHz+
4 Shield Shield Shield Shield
5
White (orange) Depth 1-
200kHz
- 38kHz-
6 Green GND* GND (Temp.) GND (Temp.)
7 Yellow Temp. Temp. Temp.
*) Temp./Speed log
