Simrad CX34-DE NavStation - Flush Mounting of CX54

427.9 mm (16.8”)
437.9 mm (17.2”)
448 mm (17.6”)
460 mm (18.1”)
297.9 mm (11.7”) 307.9 mm (12.1”) 318 mm (12.5”) 330 mm (13”)
Installation 1 - 8 CX34/44/54 NavStation

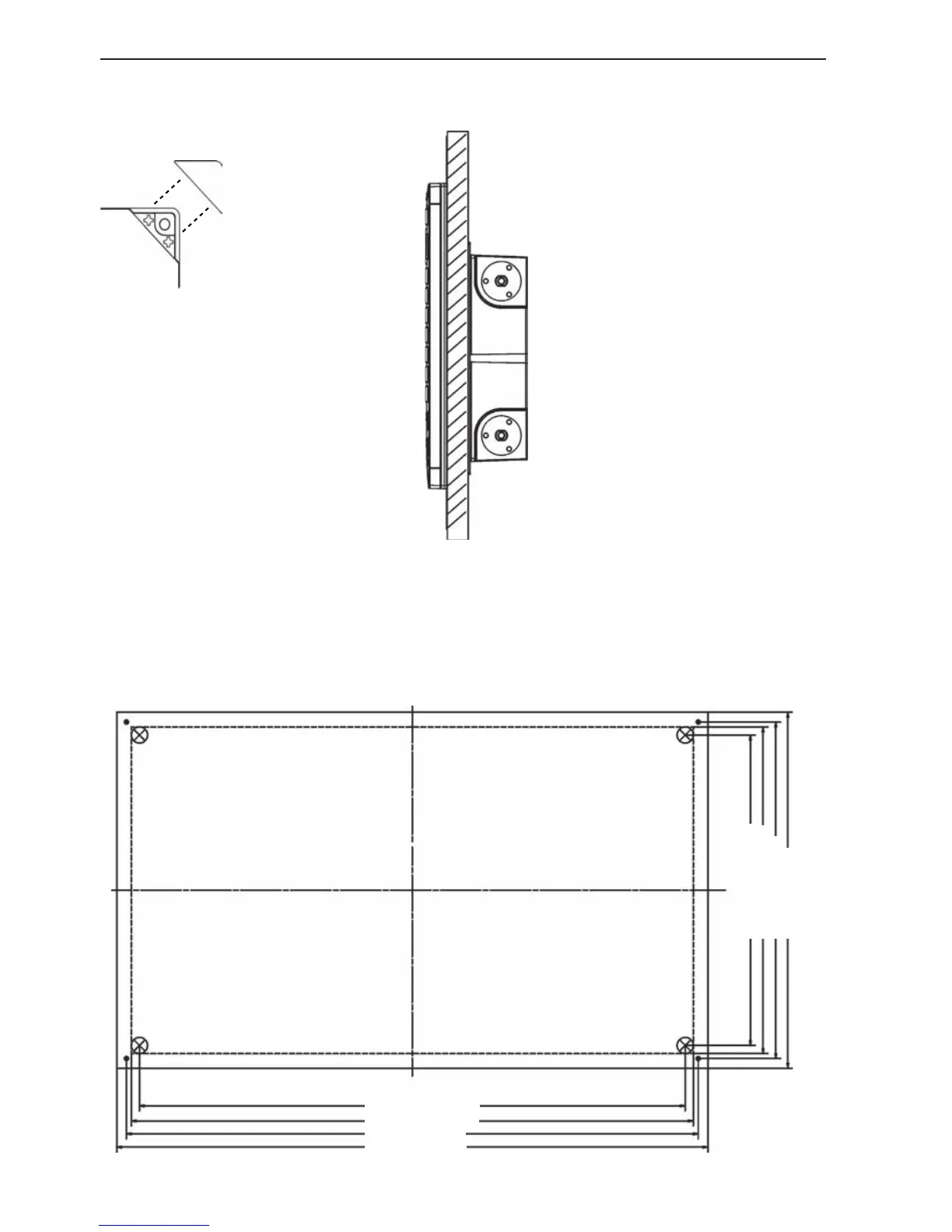

Flush mounting of CX54
Removable corner
for flush mounting.
Minimum clearance
for cables: 13 cm.
Refer to included template for instructions on flush mounting.
