EQ33 Echosounder operation Chapter 5-9

5.8 Echosounder setup

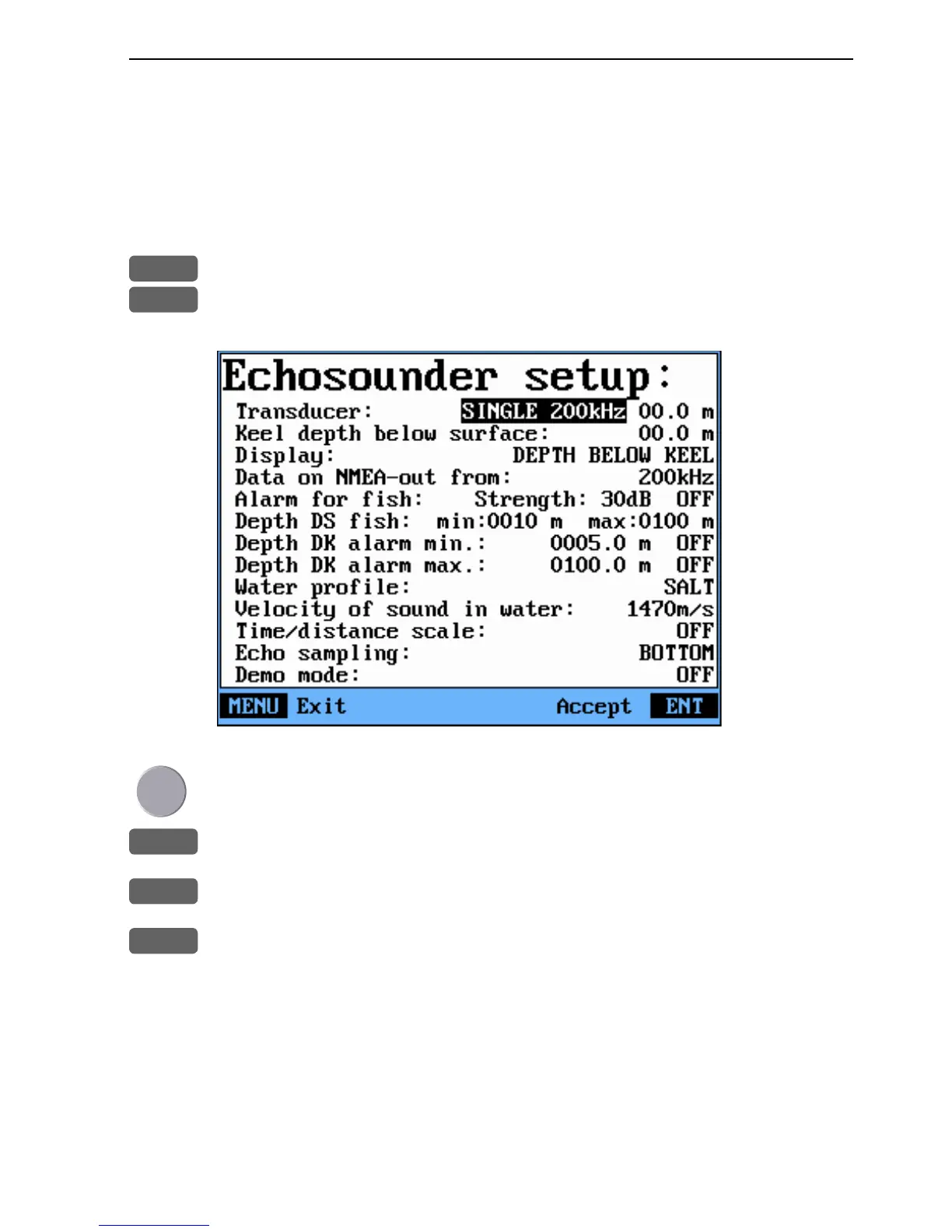

The Echosounder setup display mainly consist of general settings,

but also applies to a specific frequency where stated. The EQ33 fea-

tures semi dual transceiver transmitting at 50 and 200 kHz.

Call up the menu bar, and...

3,7

activate Echosounder setup display

Use the cursor key to move cursor around in the display

+/-

Select new values by means of the +/- keys

ENT

Confirm changes, or...

Abandon changes and exit display

Transducer - select transmitter frequency 50kHz or 200kHz. Insert

the depth (position) of the transducer below surface.

Display can show: DEPTH BELOW KEEL / SURFACE / TRANS-

DUCER.
