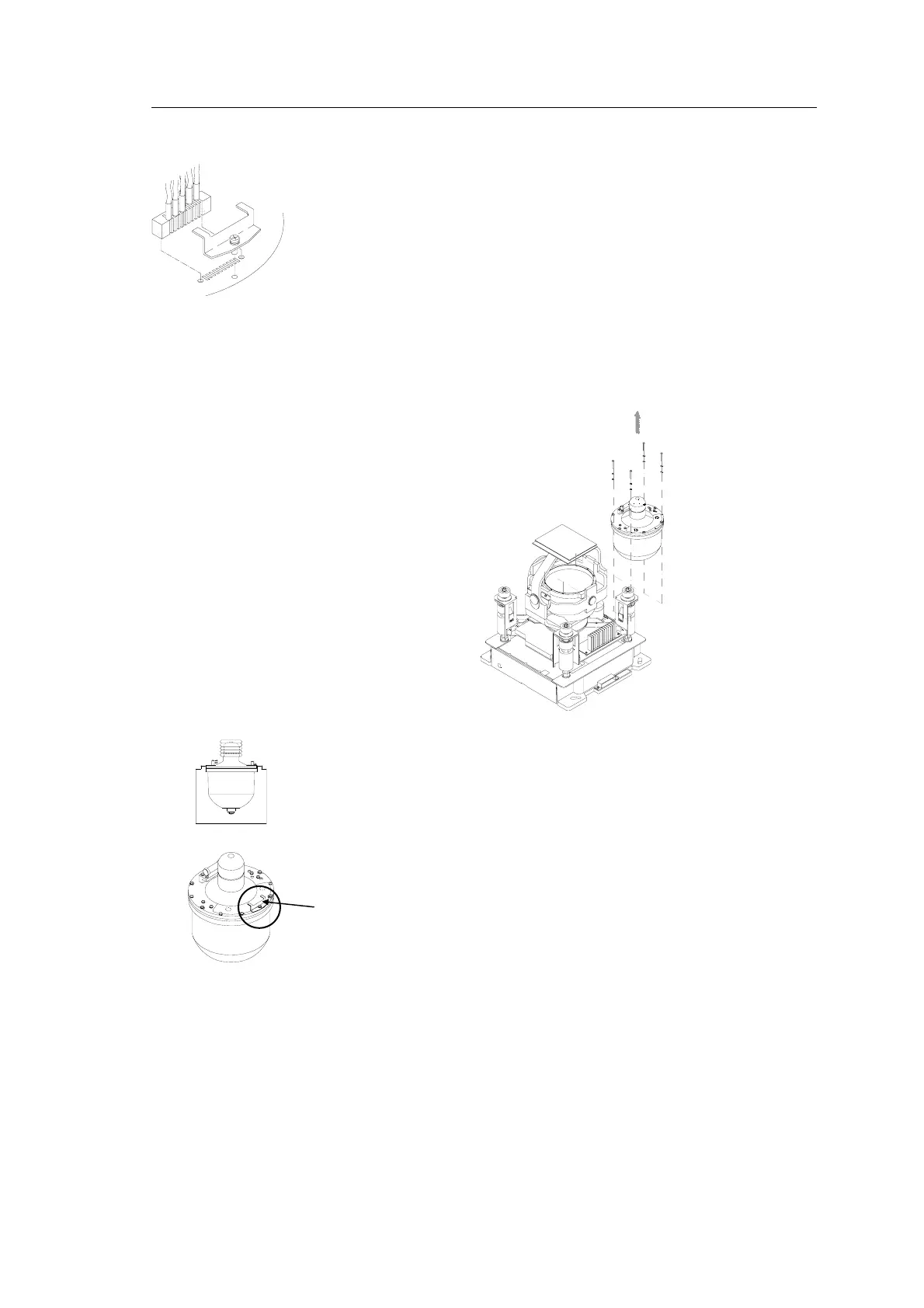

3 Loosen the screw on the plug-holder on the Sensitive
element, and disconnect the plug.
4 Remove the four screws securing the Sensitive element.
Tilt the Horizontal ring to the side where the plug is
located, and carefully remove the element from the
compass.
5 Place the defective Sensitive element in its original
package, and put the rubber tube on top of the element.
6 Fasten the screw on the plug holder on the defective
Sensitive element.
7 Lift the new element carefully from its package, and
remove the rubber tube on top of the element.
Note! The package and the rubber tube should be kept for re-use if the
Sensitive element has to be sent to factory for service!
