DIP SWITCH SETTINGS
20221511 / D 91
ICIF board
1
8
ON
1
8
ON
1
8
ON
S1
S2
S3
J14
J11
J10
J9
J8
J7
S1
S2
S3
J6
J5
J15

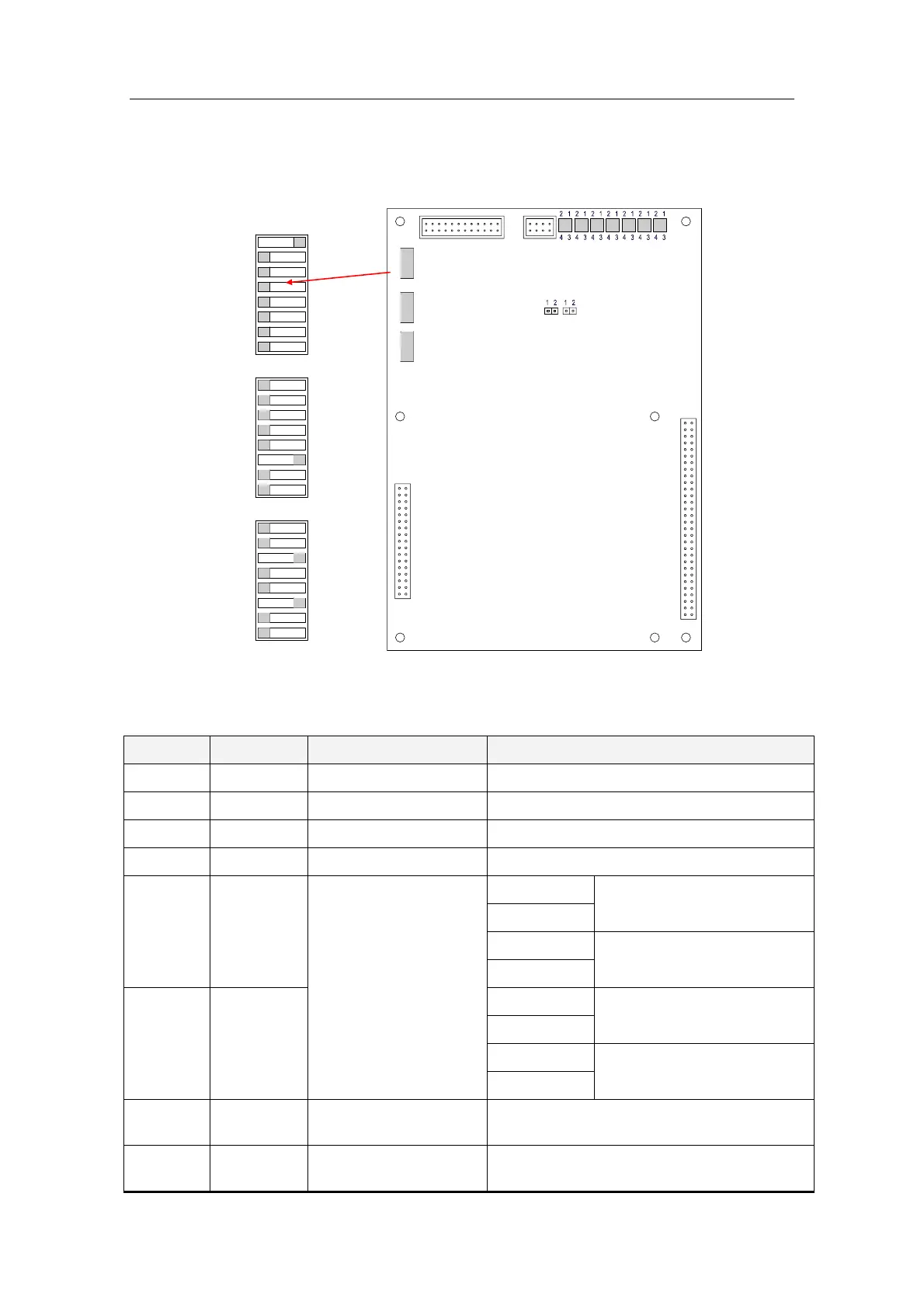

DIP switch settings on ICIF board
SWITCH DEFAULT FUNCTION DESCRIPTION
S1-1 ON Control unit type OFF = Expanded, ON =Compact
S1-2 OFF Master compass type OFF = Standard, ON =High Speed
S1-3 OFF Control unit type OFF = Expanded, ON =Dual
S1-4 OFF 2 gyros used OFF = No, ON =Yes
SW1-5 OFF
SW1-6 OFF
= No external sensor
SW1-5 OFF
S1-5 OFF
SW1-6 ON
Not used
SW1-5 ON
SW1-6 OFF
= External sensor connected
SW1-5 ON
S1-6 OFF
External sensor
connection
SW1-6 ON
Not used
S1-7 OFF Serial signal format OFF = IEC61162-2 (NMEA0183, ref. page 4),
ON = Tokimec
S1-8 OFF Alarm output setup OFF = All alarms,
ON = Only power failures
DEFAULT SETTINGS
