Simrad GC80 Compact Gyro - IOPT Board

Simrad GC80/GC85 Compact Gyro Compass
94 20221511 / D
JUMPER DEFAULT FUNCTION DESCRIPTION
J14 1-2 short LOG pulse selection Input port: ITERM board, TB2 “SL”
1-2 short = 200p.p.n.m.
3-4 short = 400p.p.n.m.
NOTE
: Never use both jumpers at the same
time!
J15 3-4 short Alarm contact output Output port: ITERM board, TB1 “ALCN”
1-2 short = Alarm CLOSED, Normal OPEN
3-4 short = Alarm OPEN, Normal CLOSED
NOTE
: Never use both jumpers at the same
time!

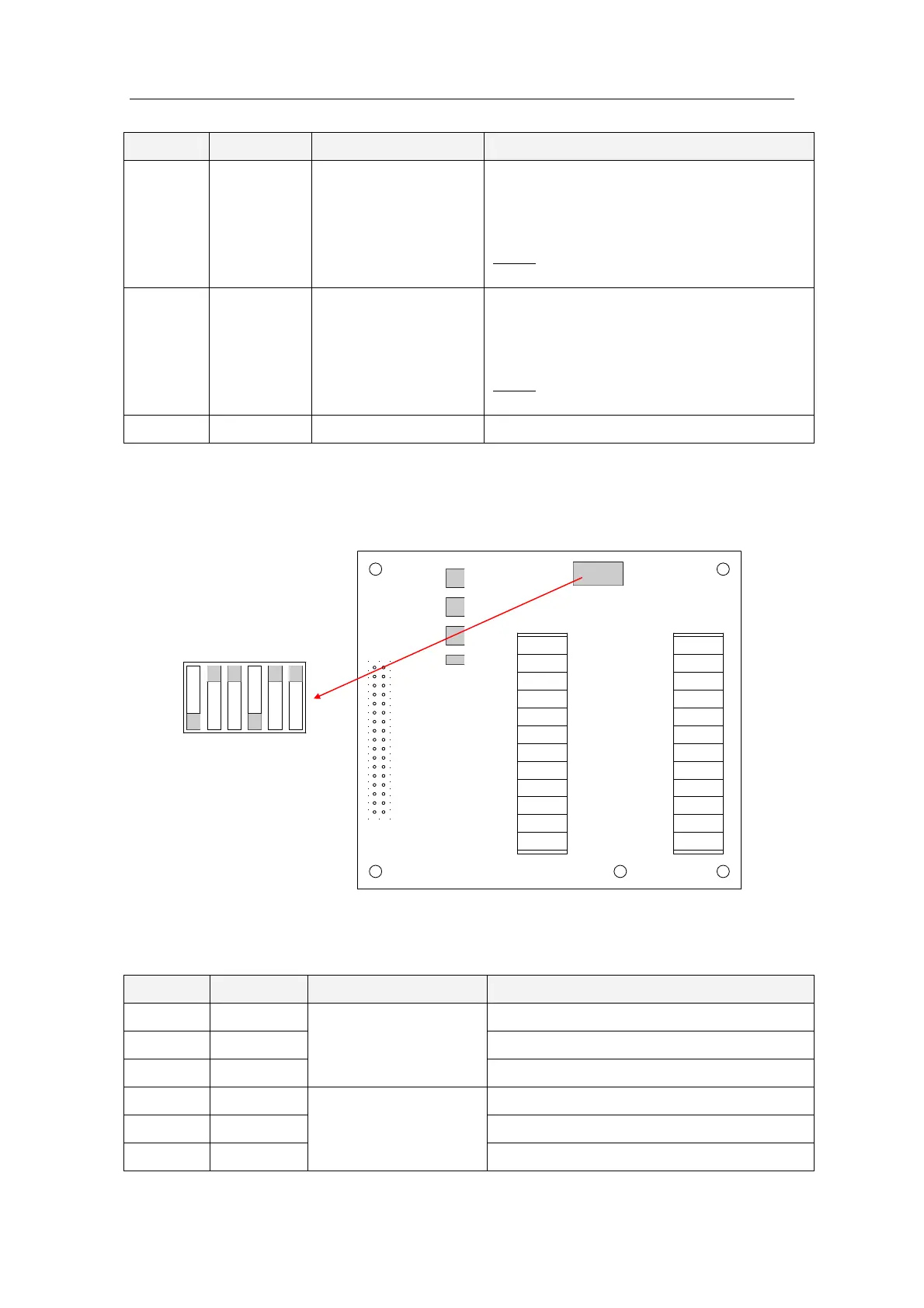

IOPT board
DIP switch settings on IOPT board
SWITCH DEFAULT FUNCTION DESCRIPTION
S1-1 OFF 38400 bps
S1-2 OFF 9600 bps
S1-3 ON
LOG (serial) baude
rate for transmission
4800 bps
S1-4 OFF 38400 bps
S1-5 OFF 9600 bps
S1-6 ON
LOG (serial) baude
rate for receive
4800 bps
TB3 TB4
J3
J6
J7
J1
1
1
1
1
3
3
3
4
2
4
2
4
2
2
S1
1
ON
S1
8
DEFAULT SETTINGS
