8.1 Drawings included

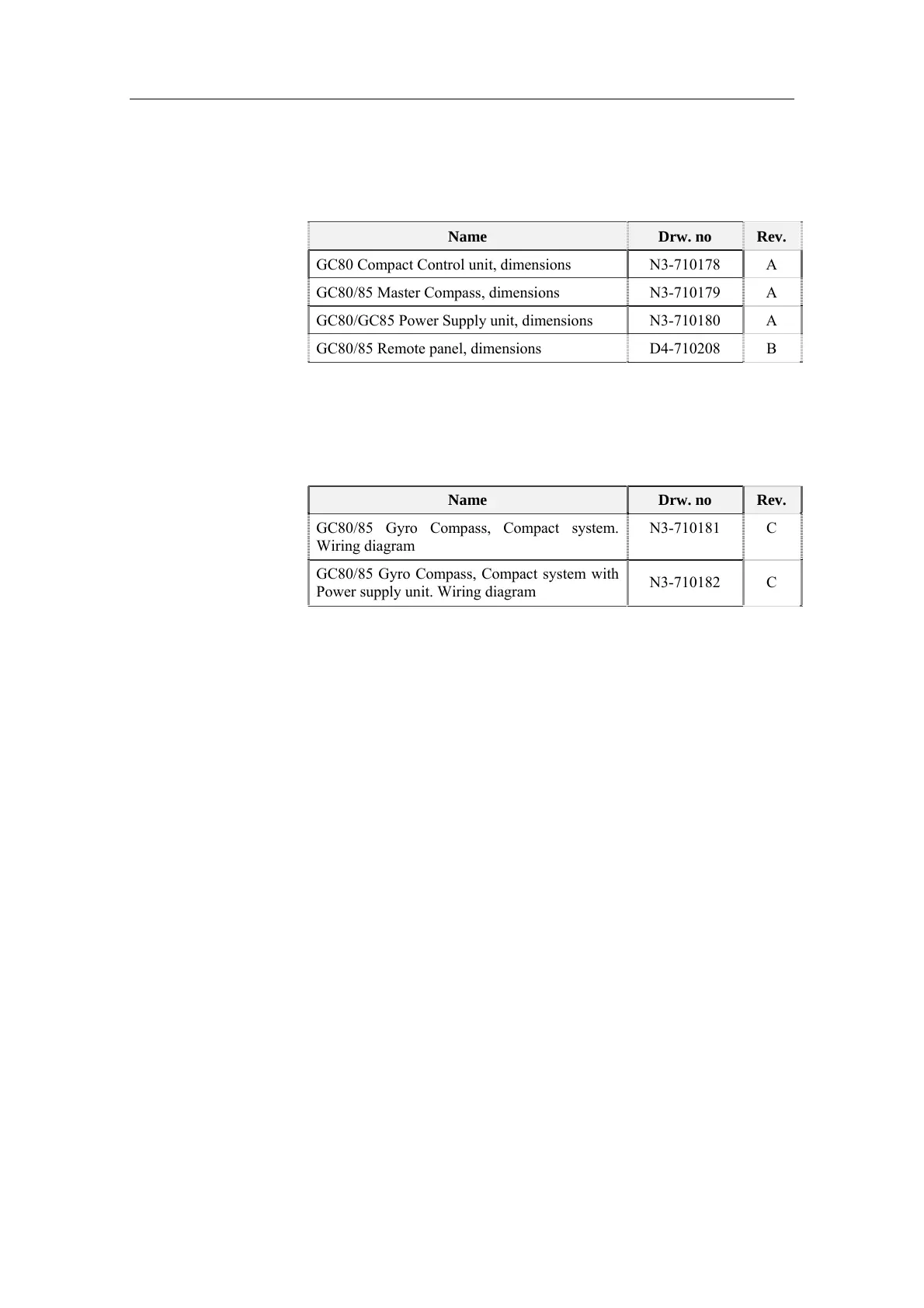

The following mechanical drawings are enclosed:
Name Drw. no Rev.
GC80 Compact Control unit, dimensions N3-710178 A
GC80/85 Master Compass, dimensions N3-710179 A
GC80/GC85 Power Supply unit, dimensions N3-710180 A
GC80/85 Remote panel, dimensions D4-710208 B
To scale drawings are available upon request.
The following wiring diagrams are enclosed:
Name Drw. no Rev.
GC80/85 Gyro Compass, Compact system.
Wiring diagram
N3-710181 C
GC80/85 Gyro Compass, Compact system with
Power supply unit. Wiring diagram
N3-710182 C
Note! The original signed drawings are recorded at Simrad Egersund.
