14 |
Installation | HS80/HS80A/MX575C/MX575D UserManual

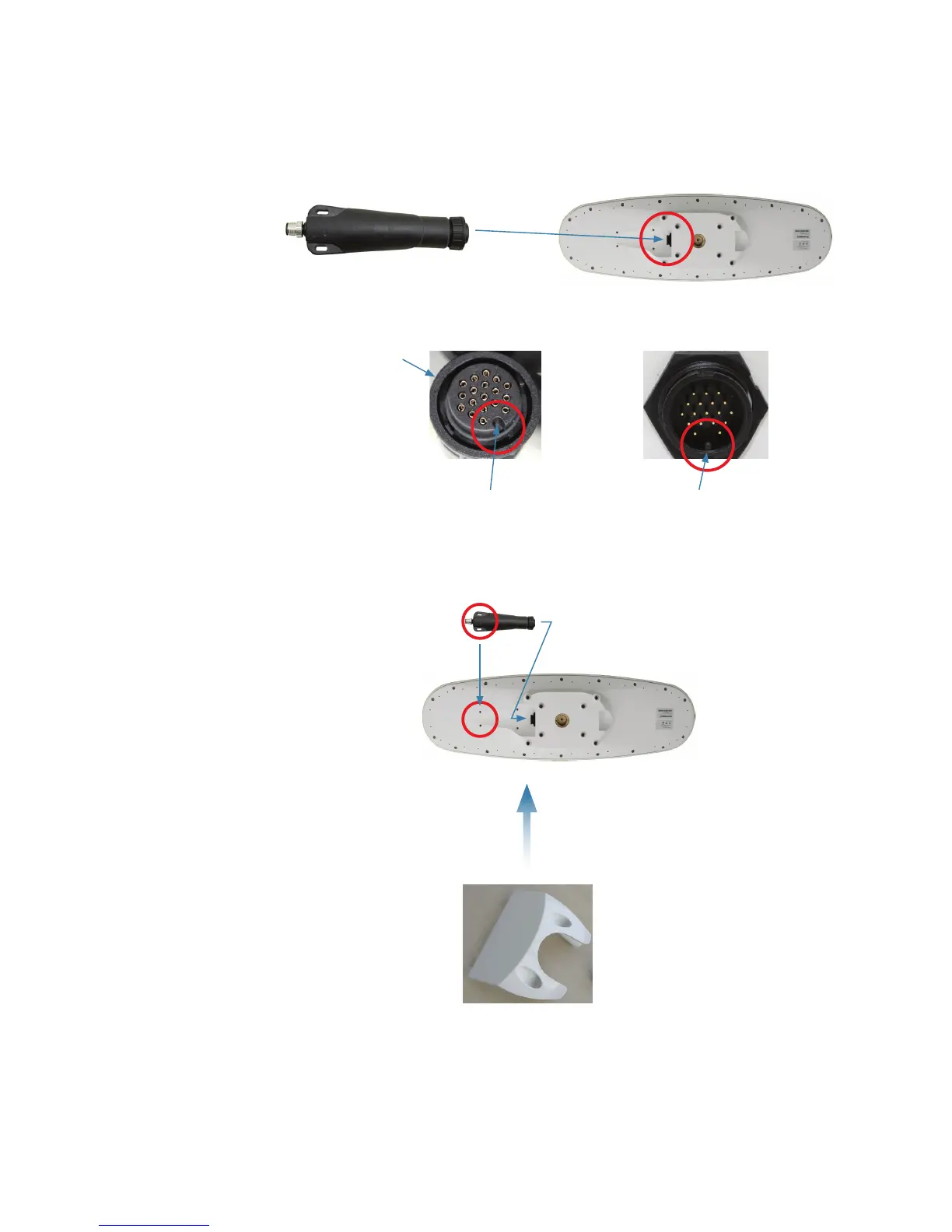

Connecting the Serial-to-NMEA 2000 adapter
For more information on the serial-to-NMEA 2000 adapter see “NMEA 2000 port” on page 16.
This adapter is an optional item for the MX575C/MX575D model.
1. Align the adapter connector keyway with the Smart GPS compass connector key.
Connect adapter
here
2. Rotate the cable ring clockwise until it locks. The locking action is firm; you will feel a positive
“click” when it has locked.
Cable ring
Cable connector keyway Connector key
3. Fasten the adapter to the body of the Smart GPS compass using the provided screws and the
two slots in the adapter.
4. Attach the cable cover.
