Connecting the display
The MO series monitors largely use industry standard cables, which can be purchased pre-
terminated in a variety of lengths. The following chapter provides additional details of where
cables require eld termination by the installer.

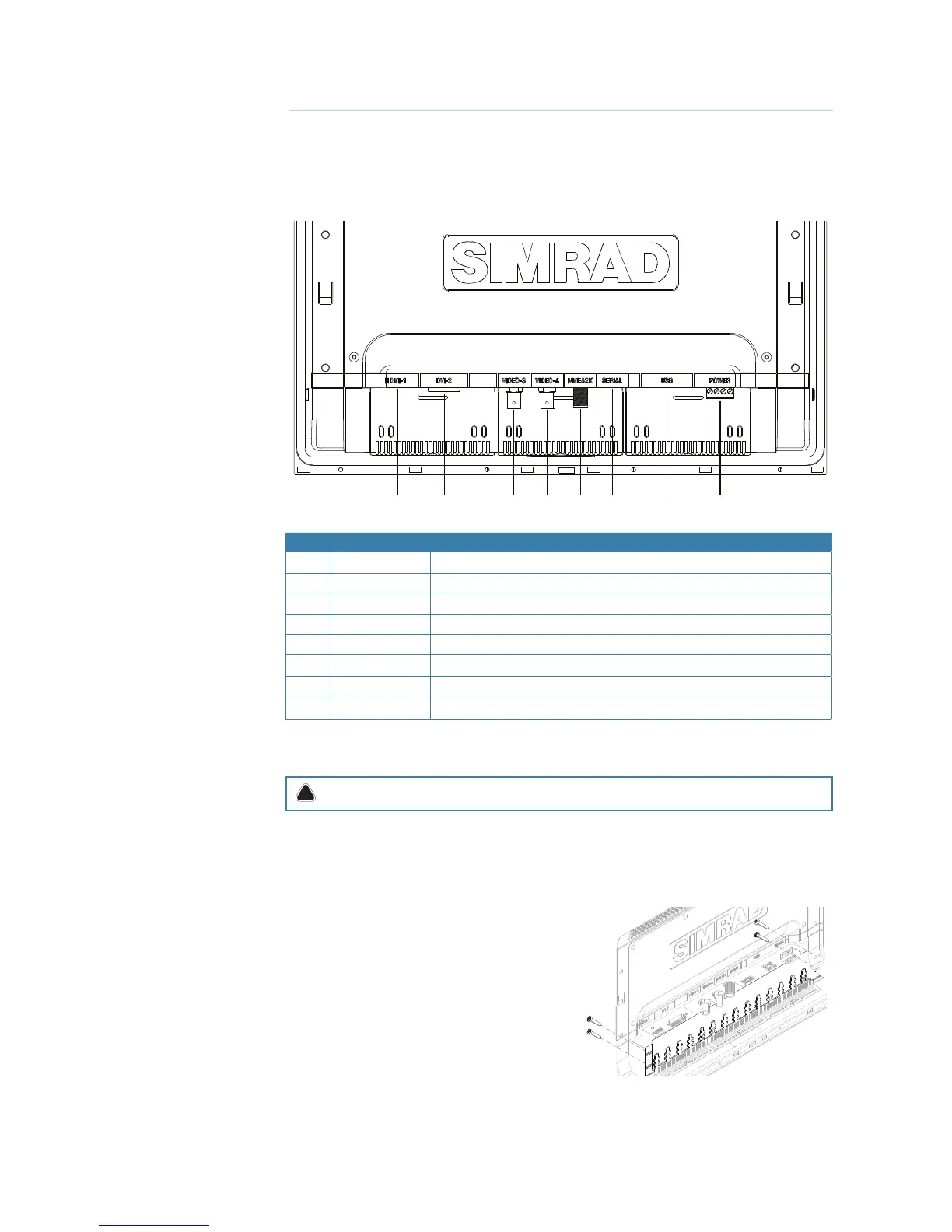

Rear connections
1 2
3
4
5
6
7
8
No. Connection Function
1 HDMI-1 Video input (digital)
2 DVI-2 Video input (digital)
3 VIDEO-3 Video input for camera (composite - analogue)
4 VIDEO-4 Video input for camera (composite - analogue)
5 NMEA2K Control input/output, software upgrade
6 SERIAL Control input/output for touchscreen
7 USB Control input/output for touchscreen
8 POWER 12/24 V DC power supply input
¼ Note: HDMI-1, and DVI-2 inputs do not support HDCP (High bandwidth Digital Content
Protection). Sources such as protected DVDs may not display correctly/at all on this monitor.
Warning: Make sure power is switched o before commencing with installation.
Cable retention
Cables tted to the display should utilize
some form of strain relief. All displays are
supplied with a retention bracket, which
should be attached to the rear case.
