Connecting touch control
The touch screen models of the MO series monitors can provide touch control to the NSO
evo2 Marine Processor, as well as Windows 7 and Windows 8 PCs. Connection can be made
via serial data for NOS evo2, or USB for PC systems.
Serial connection
The MO series monitors must always be connected to NSO evo2 via serial. Make all
connections with power turned o.
3 4
21

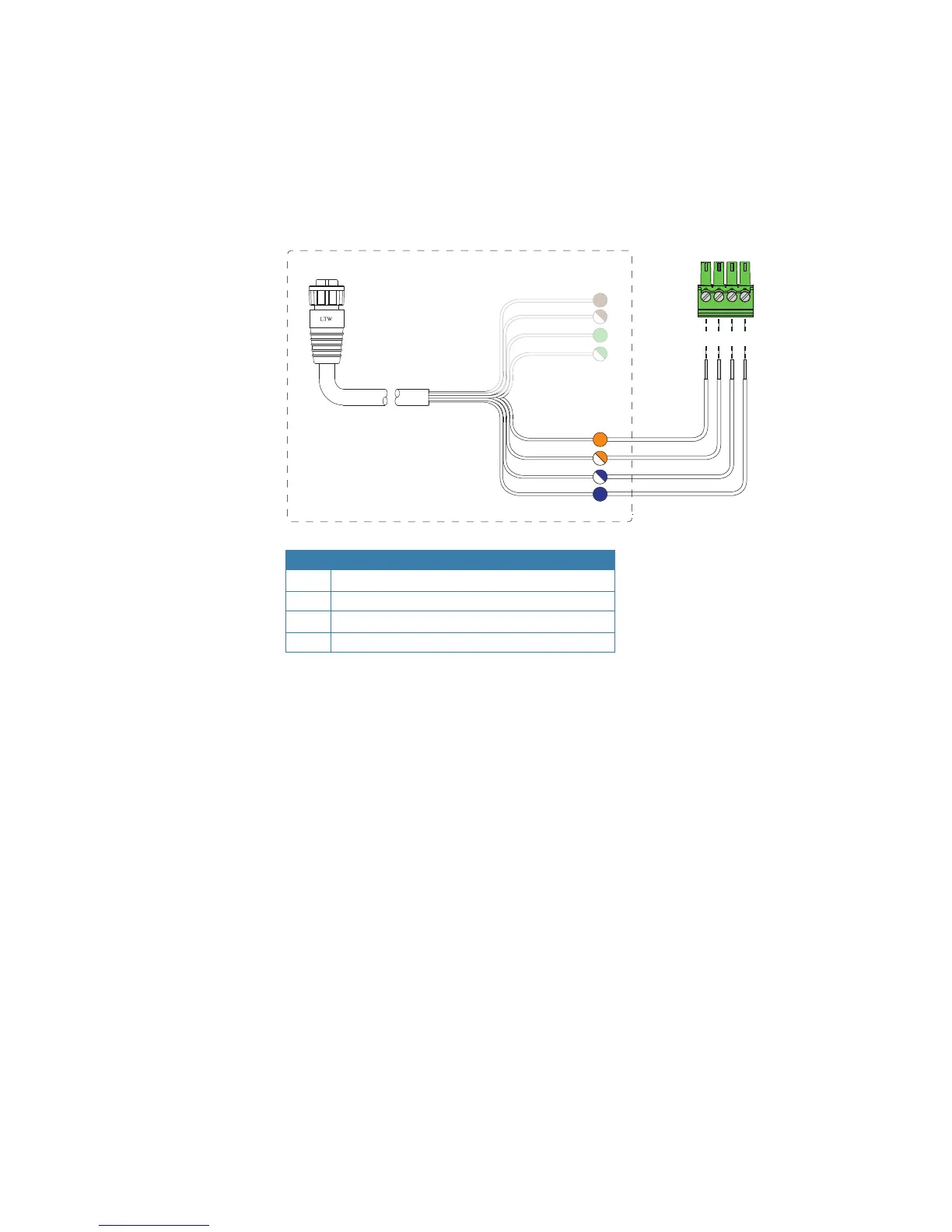

NSO evo2 serial cable
No. NSO evo2 serial cable colors
1 Orange
2 Orange/white
3 Blue/white
4 Blue
¼ Note: Serial connection will support very long cable runs provided a good quality cable
designed for serial data is used.
USB connection
Connection using USB is straighforward, as regular o-the-shelf cables may be used, which
are available in various lengths (generally up to 5 m). The monitor end must be tted with
a USB type B male plug. The opposite end should suit the device being controlled, which
typically will use the common USB type A male plug.
¼ Note: Where USB is used, cable length should not exceed 5 m when using regular cables.
Lengths over 5 m may be possible with the use of a USB cable tted with active boosting.
¼ Note: Do not connect both serial and USB to the same video source.
¼ Note: Ensure any third party video source connected to the MO has an isolated USB
connection to avoid potential damage due to incorrect installation, or failure elsewhere in the
system.
¼ Note: The preferred method of connection is via serial cable, only serial touch can be
congured to work for a specic video input. USB touch is output regardless of video input
selection, which can lead to false touches when viewing a dierent video source..
