Connecting the display | MO Series User Manual

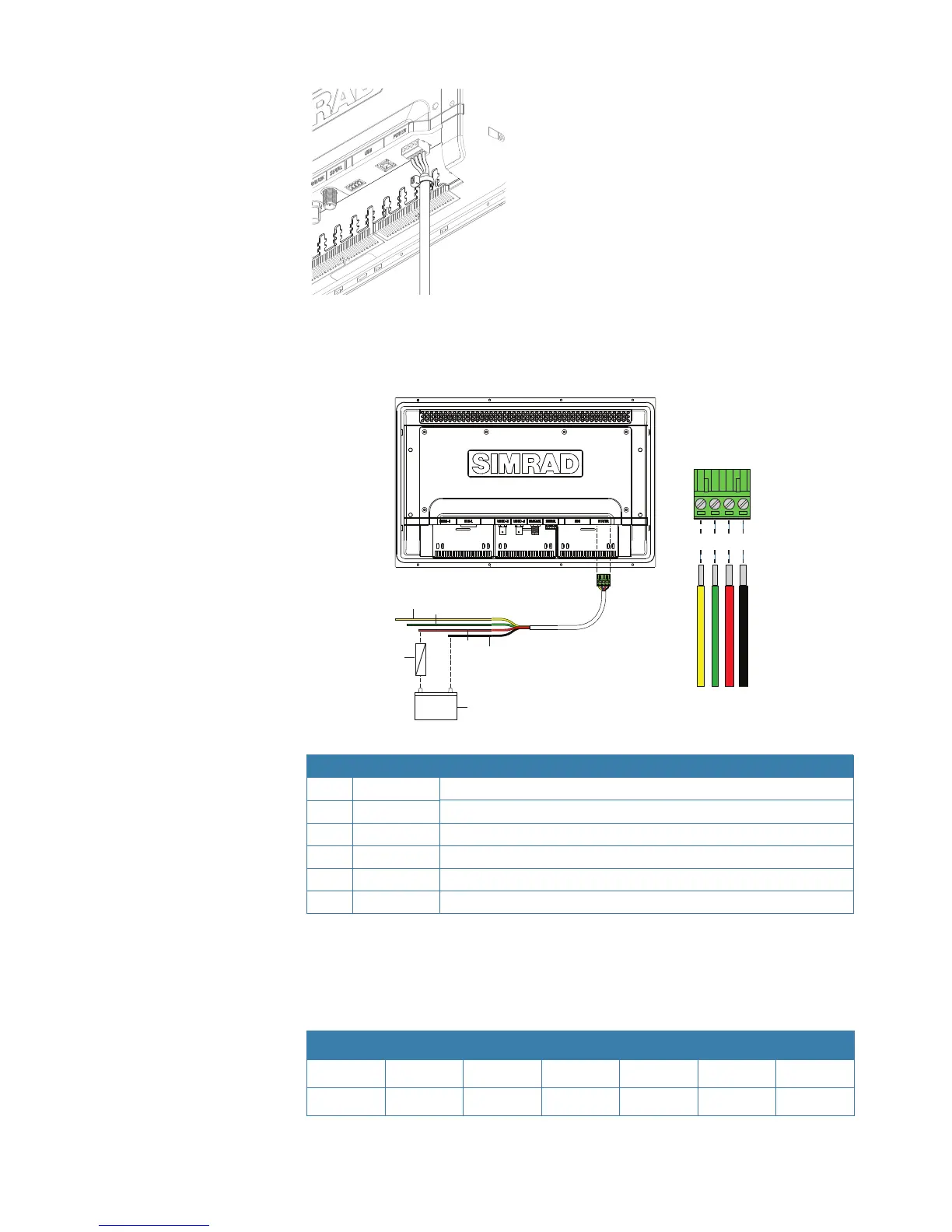

With the cable and plug tted in place, secure
the cable to the retention bracket using a cable
tie. Do not secure in such a way that it applies
strain to the cable, or causes the plug or socket
to be bent out of alignment.
Connecting power
3 421
1
2
3
4
5
6
+
-
No. Color Function
1 Yellow Power control
2 Green Chassis ground
3 Red Positive DC supply (12 V or 24 V system)
4 Black Negative DC supply (12 V or 24 V system)
5 Fuse - see table at end of section
6 DC supply
¼ Note: This display is not intended for use on vessels tted with a positive ground electrical
system. The power input cable screen drain wire should be connected to a negative ground.
¼ Note: Chassis ground will typically not be required. In certain problematic installations it may
help stabilize touch screen sensitivity, ie. prevent ‘false’ touches, or non-registered touches.
Recommended fuse rating
Model MO16-T MO19-T MO24-T MO16-P MO19-P MO24-P
Fuse 3 amp 4 amp 7.5 amp 2 amp 2 amp 4 amp
