Dimensional drawings | MO Series User Manual

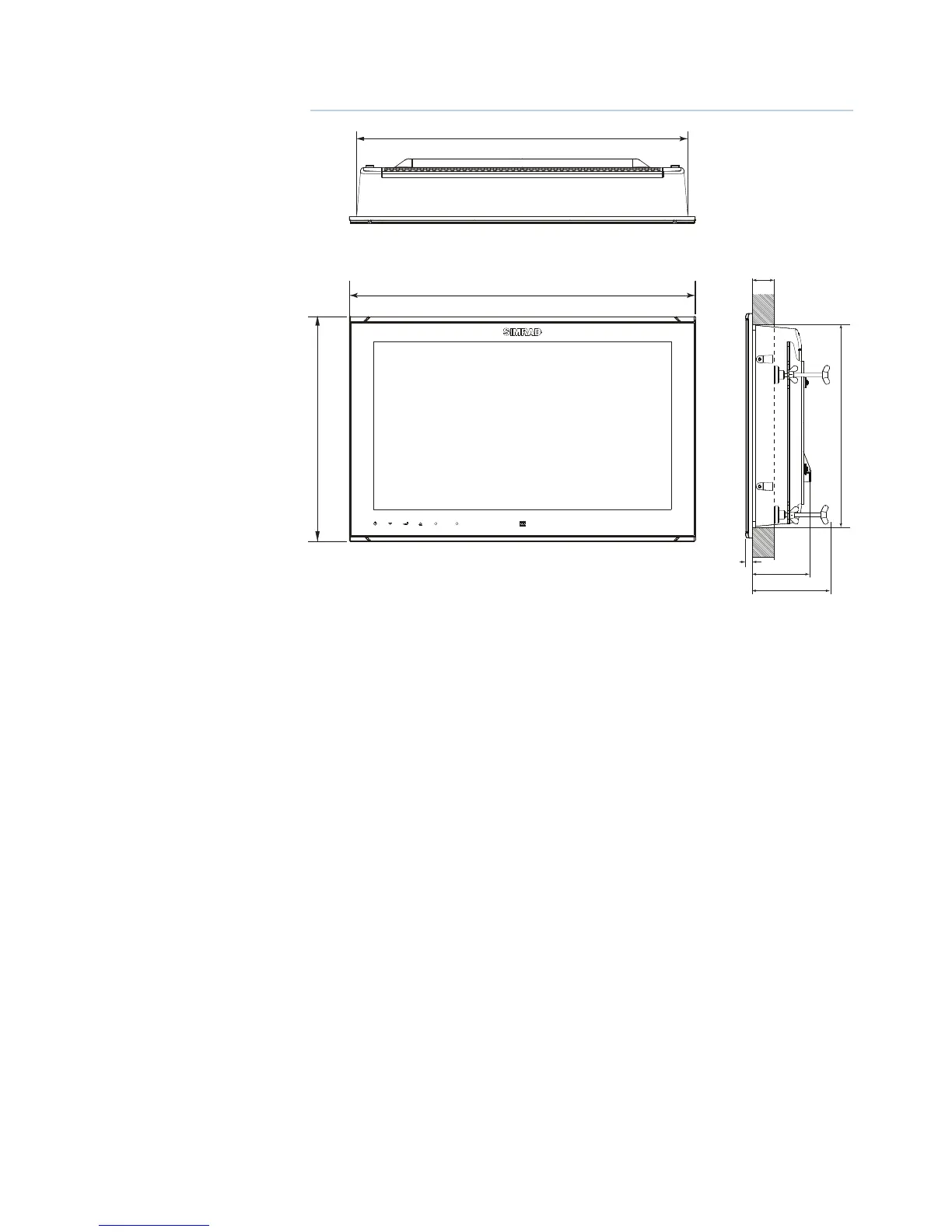

Dimensional drawings
MO16: 400mm MO19: 478mm MO24: 625mm
MO16: 260mm
MO19: 305mm MO24: 386mm
MO16: 383mm MO19: 461mm MO24: 598mm
MAX 25.4 mm (1.00")
8 mm (0.31")
66.0 mm (2.60")
MAX 88.0 mm (3.46")
MO16: 233mm MO19: 278mm MO24: 349mm
