VESA mounting the display

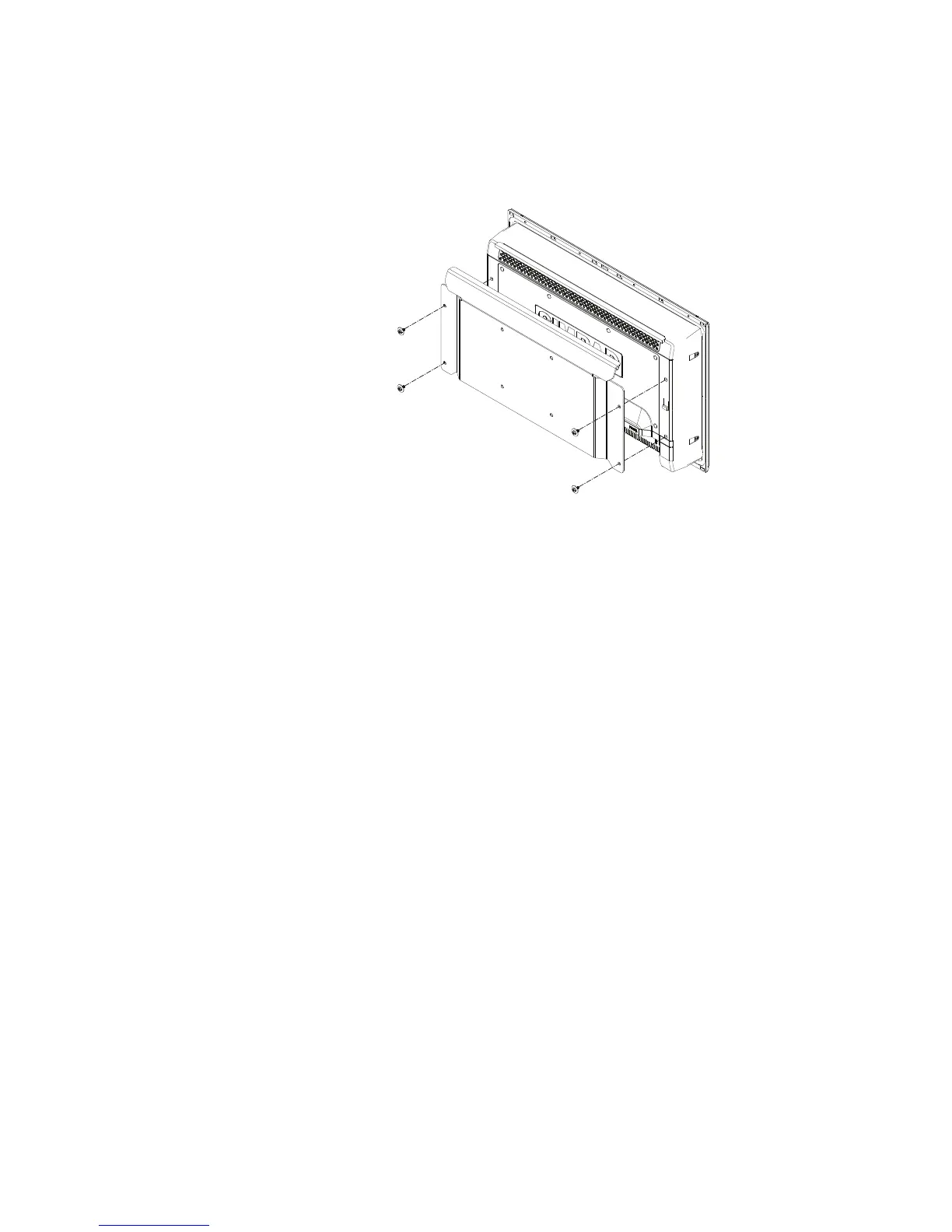

A VESA bracket adaptor is available as an optional part for all display sizes, allowing a variety of
wall and free standing bracket mounting options. The fasteners for attachment to the display
are included with the bracket.
Monitors mounted using a Vesa bracket have IPX2 rating, and should be mounted in an area
sheltered from rain and sea spray.
¼ Note: Bracket and monitor shown apply to MO16/19 models. MO24 is fastened with six
machine screws.
¼ Note: The monitor should not be tilted forward by more than 15 degrees, as this
compromises the IPX2 rating. In fully enclosed helm stations, this limitation may be
disregarded.
¼ Note: The bracket mounting points on the monitor are only intended to carry the weight of
the monitor - do not install the monitor in such a place where it may be used as a handhold,
or have additional equipment attached to it.
