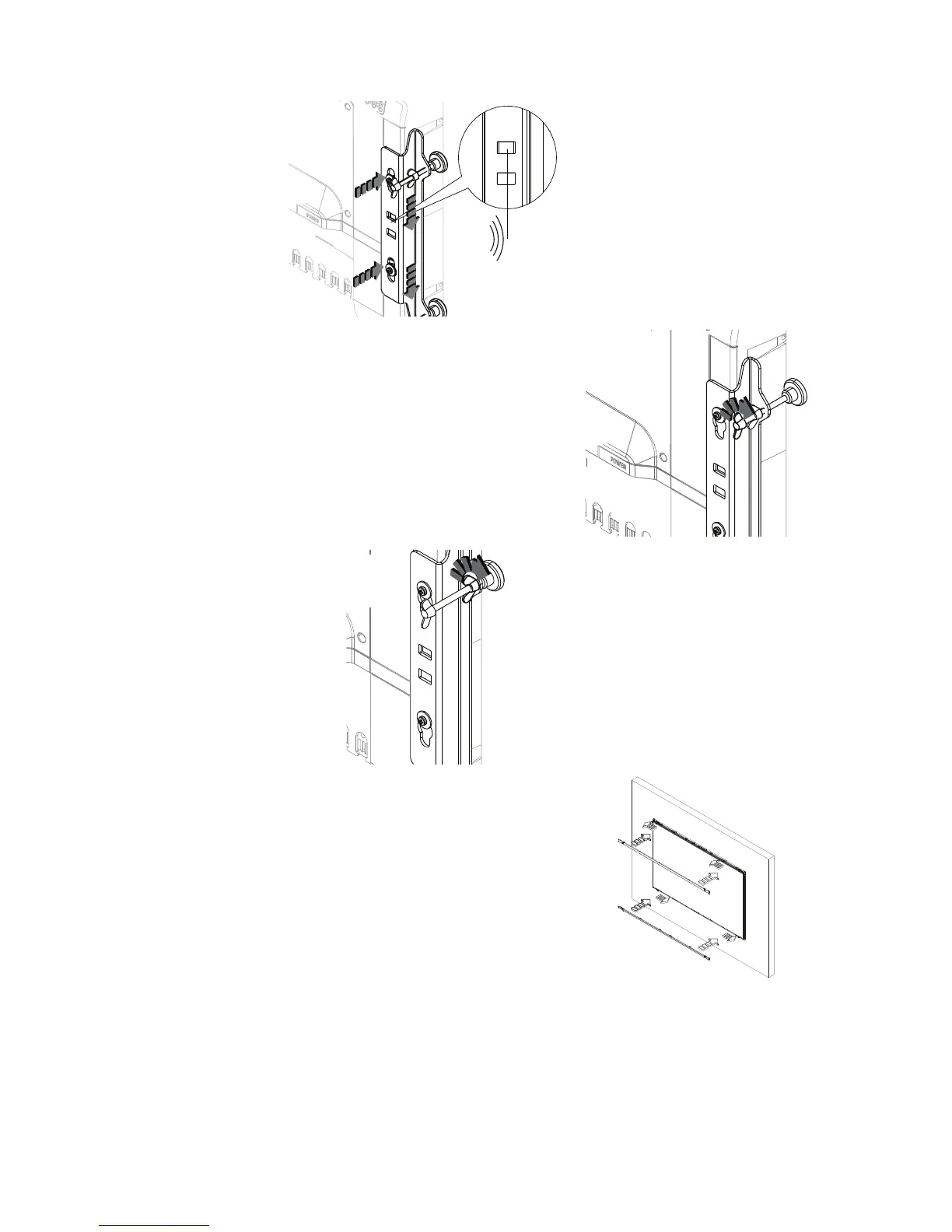

15. With bracket making contact with
back of monitor, slide bracket down
till it engages with a click and is held
in place.
16. Wind in the wing screw, until
stoppers make rm contact with rear
of dashboard material.
17. Check front of unit, ensuring that
unit’s bezel is making even contact
with the dash surface.
18. Hand tighten wing nuts against the
back of the mounting brackets to
lock the wing screw in place. Hold
wing screw stationary if it turns while
adjusting the wingnut.
19. When tting bezels, ensure hook
tabs on back of each bezel recess
into opposing slots on screen frame.
Once ush with front surface of
screen, slide top bezel to the left, and
bottom bezel to the right to lock in
to place.
